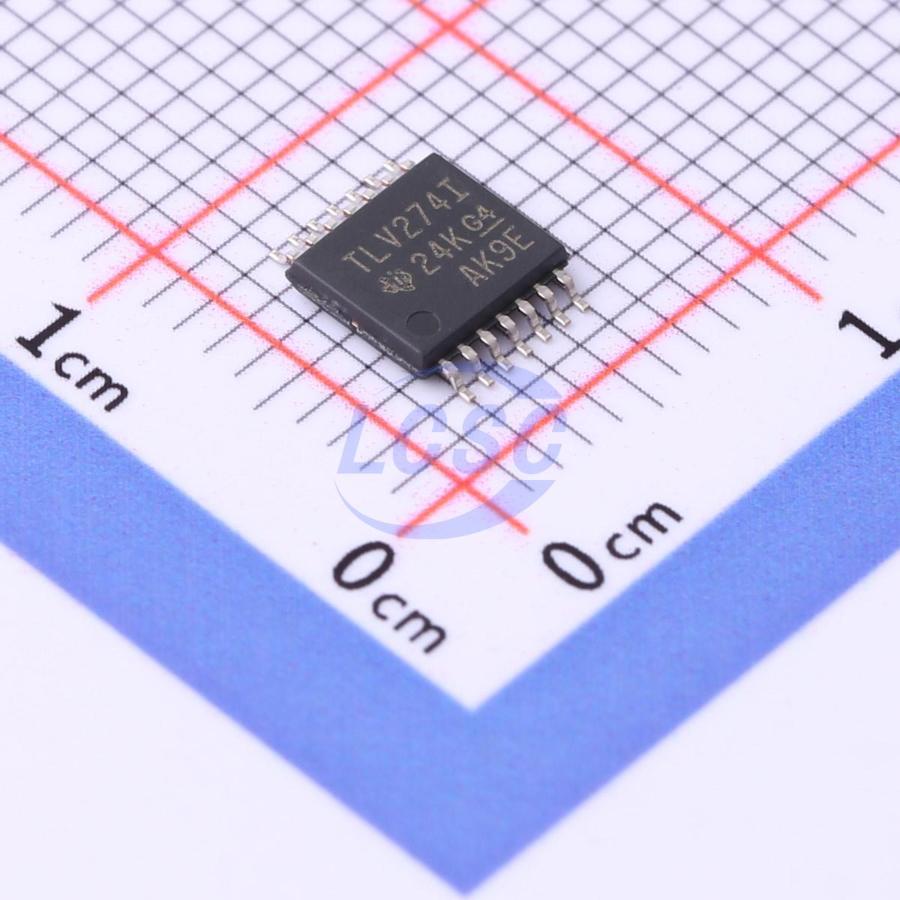

TLV274IPWR

13mA 4 500uV 2.4V/us 69dB 1pA 550uA 3MHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

TLV27x series 550 μA/channel, 3 MHz, rail-to-rail output operational amplifiers

Manufacturer: TI
Manufacturer part #: TLV274IPWR
Store part #: C2877103
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,693 in stock

#C2877103

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹130.91	₹130.91
10+	₹105.68	₹1,056.80
30+	₹92.85	₹2,785.50
100+	₹80.24	₹8,024.00
500+	₹72.84	₹36,420.00
1,000+	₹68.94	₹68,940.00

Quantity (min 1)

1 × ₹130.91

₹130.91

excl. GST

₹154.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLV274IPWR

₹130.91 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 13mA
Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 2.4V/us
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 69dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 3MHz
Input Voltage Noise Density: 39nV/√Hz@10kHz
Dual Supply: -8V~-1.35V;1.35V~8V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.085 g

Overview

Rail-to-rail output High bandwidth: 3 MHz High slew rate: 2.4 V/µs Supply voltage range: 2.7 V to 16 V Supply current: 550 µA per channel Input noise voltage: 39 nV/√Hz Input bias current: 1 pA Rated temperature range: – Commercial grade: 0°C to 70°C – Industrial grade: -40°C to 125°C Ultra-small packages: – 5-pin SOT-23 (TLV271) – 8-pin MSOP (TLV272) Ideal upgrade for the TLC72x series

Applications

Electric bicycles
Power banks
Smoke detectors
Solar inverters
Low-power motor control
Battery-powered instruments
Building automation

Key features

Rail-to-rail output
High bandwidth: 3MHz
High slew rate: 2.4V/µs
Supply voltage range: 2.7V to 16V
Supply current: 550µA/channel
Input noise voltage: 39nV/√Hz
Input bias current: 1pA
Rated temperature range:
Commercial grade: 0°C to 70°C
Industrial grade: -40°C to 125°C
Ultra-compact package:
5-pin SOT-23 (TLV271)
8-pin MSOP (TLV272)
Ideal upgrade for TLC72x series

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV274DTBR2G#C2902316onsemi · TSSOP-14	onsemi	TSSOP-14	18	₹119.77 · 18 in stock	View
TLV274QPWRG4Q1#C2057484TI · TSSOP-14	TI	TSSOP-14	129	₹447.43 · 129 in stock	View
TLV2374IPWR#C468244TI · TSSOP-14	TI	TSSOP-14	27,373	₹156.63 · 27,373 in stock	View
TLV2634IPWR(UMW)#C22373399UMW · TSSOP-14	UMW	TSSOP-14	7,593	₹50.70 · 7,593 in stock	View
AD8668ARUZ#C207705ADI · TSSOP-14	ADI	TSSOP-14	3	₹1,306.77 · 3 in stock	View
