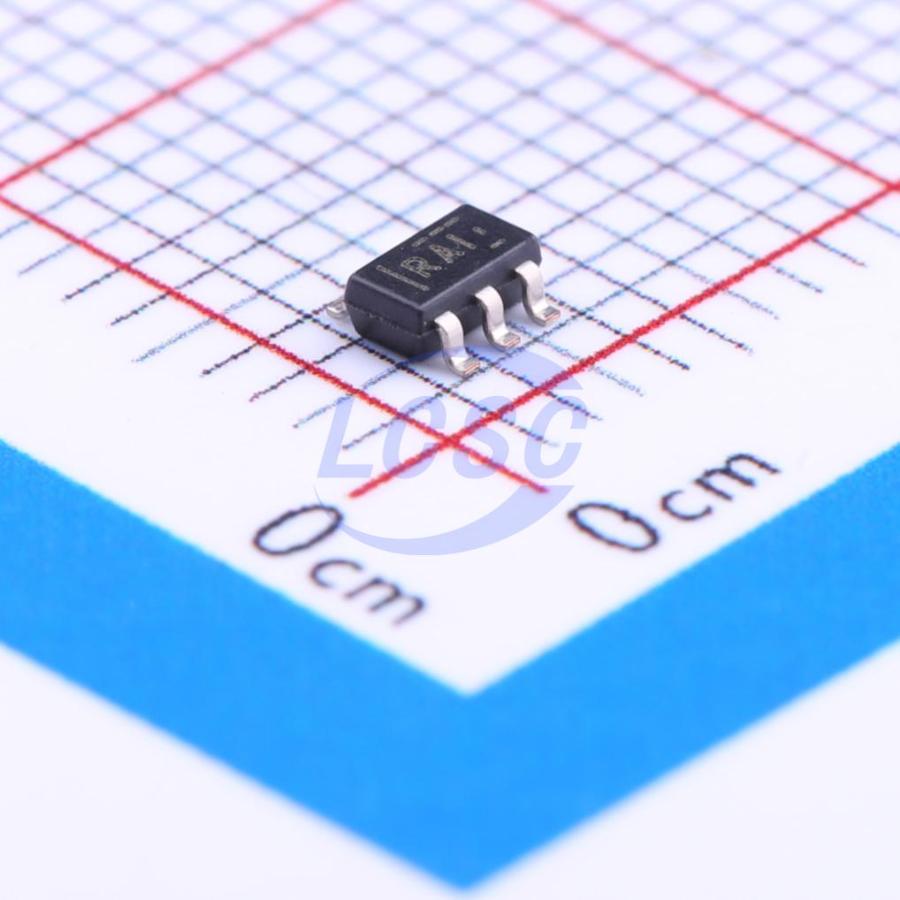

TLV3201AIDBVR
1 40uA 1mV Rail-to-rail input SOT-23-5 Comparators RoHS
Micro-power, push-pull output comparator
- Manufacturer
- TI
- Manufacturer part #
- TLV3201AIDBVR
- Store part #
- C105188
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,517 in stock
#C105188
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.02 | ₹108.02 |
| 10+ | ₹95.02 | ₹950.20 |
| 30+ | ₹82.73 | ₹2,481.90 |
| 100+ | ₹73.52 | ₹7,352.00 |
| 500+ | ₹69.90 | ₹34,950.00 |
| 1,000+ | ₹67.93 | ₹67,930.00 |
1 × ₹108.02
₹108.02
excl. GST
₹127.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV3201AIDBVR
₹108.02 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 40ns
- Input Hysteresis Voltage (Vhys)
- 1mV
- Quiescent Current(Iq)
- 40uA
- Vos - Input Offset Voltage
- 1mV
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 2.9ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV3201 and TLV3202 are single-channel and dual-channel comparators that offer an ultimate combination of high speed (40 ns) and low power consumption (40 μA) in an extremely small package. This package features characteristics such as rail-to-rail inputs, low offset voltage (1 mV), and high output drive current. The device can also be easily implemented in various applications with strict requirements for response time. The TLV320x series products are available in single-channel (TLV3201) and dual-channel (TLV3202) versions, and both versions of the devices come with push-pull outputs. The TLV3201 is available in SOT23-5 and SC70-5 packages. The TLV3202 is available in SOIC-8 and MSOP-8 packages. All devices can operate within an extended industrial temperature range of -40°C to +125°C.
Applications
- Detection Equipment
- Test and Measurement
- High-Speed Sampling Systems Telecommunications
- Portable Communications
Key features
- Low propagation delay: 40ns
- Low quiescent current
- 40μA per channel
- Input common-mode range extends to 200mV beyond either supply rail
- Low input offset voltage: 1mV
- Push-pull output
- Supply range: +2.7V to +5.5V
- Industrial temperature range: -40°C to +125°C
- Small packages: SC70-5, SOT23-5, SOIC-8, MSOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV3201AIDBVT#C83561TI · SOT-23-5 | TI | SOT-23-5 | On request | Price on request | Quote |
 | RS8901XF#C255492RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 33,465 | ₹31.12 · 33,465 in stock | View |
 | LTC8721YT5/R6#C2888152Linearin · SOT-23-5L | Linearin | SOT-23-5L | 1,025 | ₹30.04 · 1,025 in stock | View |
 | COS3201TR#C3035955COSINE · SOT-23-5 | COSINE | SOT-23-5 | 13,980 | ₹26.81 · 13,980 in stock | View |
 | TPCMP271-S5TR#C387302903PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 540 | ₹38.62 · 540 in stock | View |
