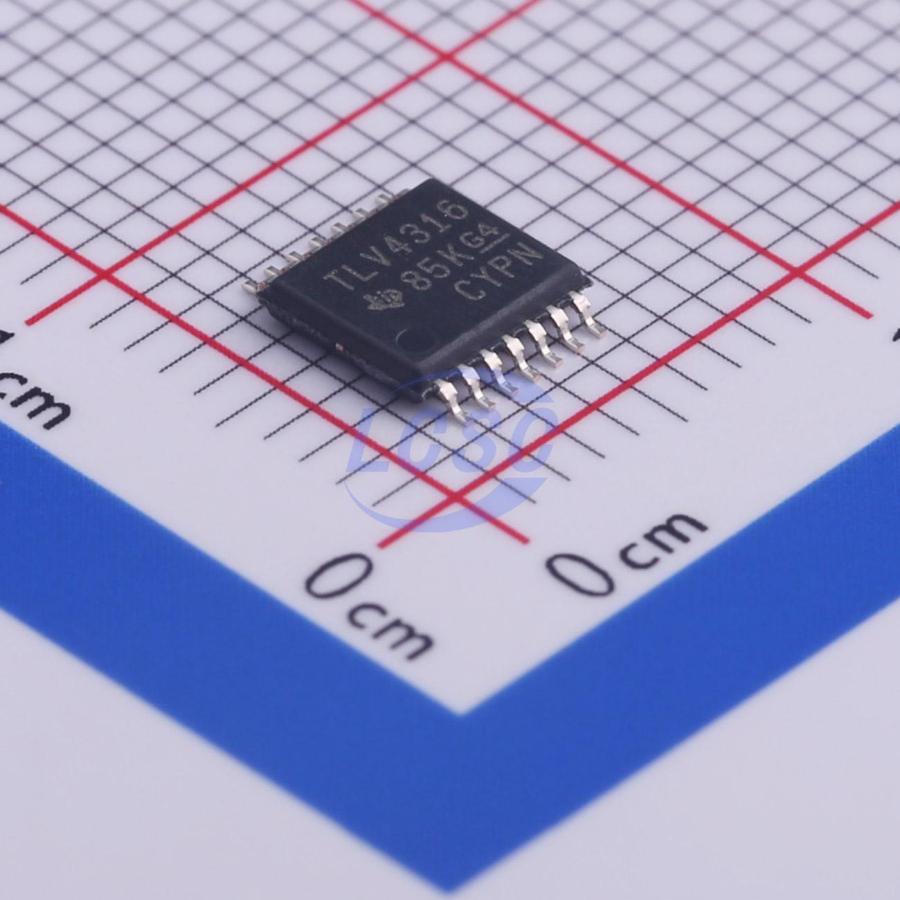

TLV4316IPWR

The TLV316 (single), TLV2316 (dual), and TLV4316 (quad) devices comprise a family of general-purpose, low-power operational amplifiers. Features such as rail-to-rail input and output swings, low quiescent current (400 μA/ch typical) combined with a wide bandwidth of 10 MHz, and very-low noise (12 nV/√Hz at 1 kHz) make this family attractive for a variety of applications that require a good balance between cost and performance. The low input bias current supports operational amplifiers that are used in applications with megaohm source impedances. The robust design of the TLVx316 provides ease-ofuse to the circuit designer—a unity-gain stable, integrated RFI/EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4 - 1×1 HBM). These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75 V). This latest addition of low-voltage CMOS operational amplifiers to the portfolio, in conjunction with the TLVx313 and TLVx314 series, offer a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications.

Applications

• Battery-Powered Instruments: Consumer, Industrial, Medical
• Notebooks, Portable Media Players
• Sensor Signal Conditioning
• Barcode Scanners
• Active Filters
• Audio

Key features

• Unity-Gain Bandwidth: 10 MHz
• Low IQ: 400 μA/ch
• Excellent Power-to-Bandwidth Ratio
• Stable over Temperature and Supply Range
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 12 nV/√Hz at 1 kHz
• Low Input Bias Current: ±10 pA
• Offset Voltage: ±0.75 mV
• Unity-Gain Stable
• Internal RFI/EMI Filter
• Extended Temperature Range: -40°C to +125°C
