TIDatasheet (PDF)

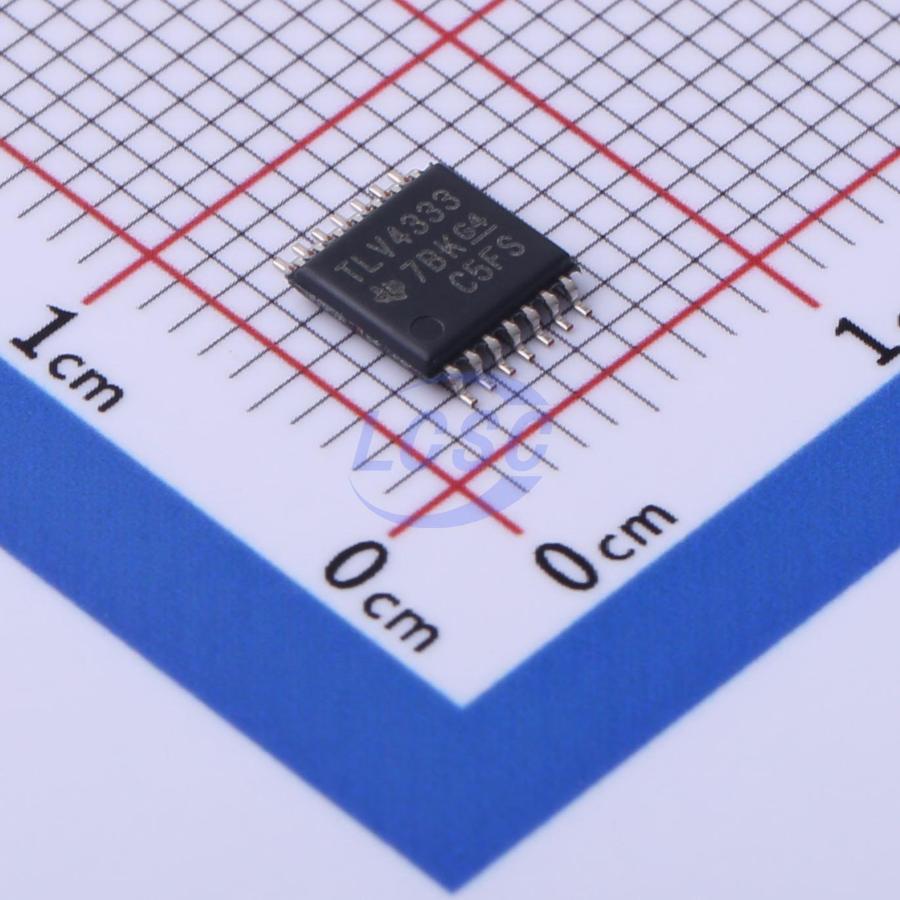

TLV4333IPWR
5mA Four channels 2uV 0.16V/us 115dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
2μV Vos, 0.02μV/°C, 17μA, CMOS operational amplifier zero-drift series
- Manufacturer
- TI
- Manufacturer part #
- TLV4333IPWR
- Store part #
- C2060549
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,964 in stock
#C2060549
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹323.92 | ₹323.92 |
| 10+ | ₹279.05 | ₹2,790.50 |
| 30+ | ₹251.08 | ₹7,532.40 |
| 100+ | ₹220.94 | ₹22,094.00 |
| 500+ | ₹207.94 | ₹1,03,970.00 |
| 1,000+ | ₹202.30 | ₹2,02,300.00 |
1 × ₹323.92
₹323.92
excl. GST
₹382.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLV4333IPWR
₹323.92 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
The TLVx333 series of CMOS operational amplifiers feature precise performance and are highly cost - competitive. They belong to the zero - drift series of amplifiers that use proprietary auto - calibration technology. They have a very low offset voltage (maximum 15 μV) with almost zero drift over time and temperature, and a quiescent current of only 28 μA. With rail - to - rail input and output and nearly constant 1/f noise characteristics, they are ideal for a wide range of applications and make system design easier. They are optimized to operate in low - voltage conditions from 1.8 V (±0.9 V) to 5.5 V (±2.75 V).
Applications
- Battery-powered instruments
- Temperature measurement
- Sensor applications
- Electronic scales
- Medical instrumentation
- Handheld test equipment
- Current sensing
Key features
- Exceptional price-to-performance ratio
- Low offset voltage: 2μV
- Zero drift: 0.02μV/°C
- Low noise: 1.1 μVPP, 0.1Hz to 10Hz
- Quiescent current: 17μA
- Supply voltage: 1.8V to 5.5V
- Rail-to-rail input/output
- Internal EMI filtering
- Compact packages: SOT23, SC70
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS4333TRA#C5289372COSINE · TSSOP-14 | COSINE | TSSOP-14 | 1,519 | ₹79.98 · 1,519 in stock | View |
 | COS4333TRB#C5289373COSINE · TSSOP-14 | COSINE | TSSOP-14 | 500 | ₹71.12 · 500 in stock | View |
 | COS4333TRC#C5289374COSINE · TSSOP-14 | COSINE | TSSOP-14 | 340 | ₹50.19 · 340 in stock | View |
 | OPA4317IPWR#C783605TI · TSSOP-14 | TI | TSSOP-14 | 878 | ₹310.48 · 878 in stock | View |
 | OPA4330AIPWR#C193775TI · TSSOP-14 | TI | TSSOP-14 | 196 | ₹247.72 · 196 in stock | View |
