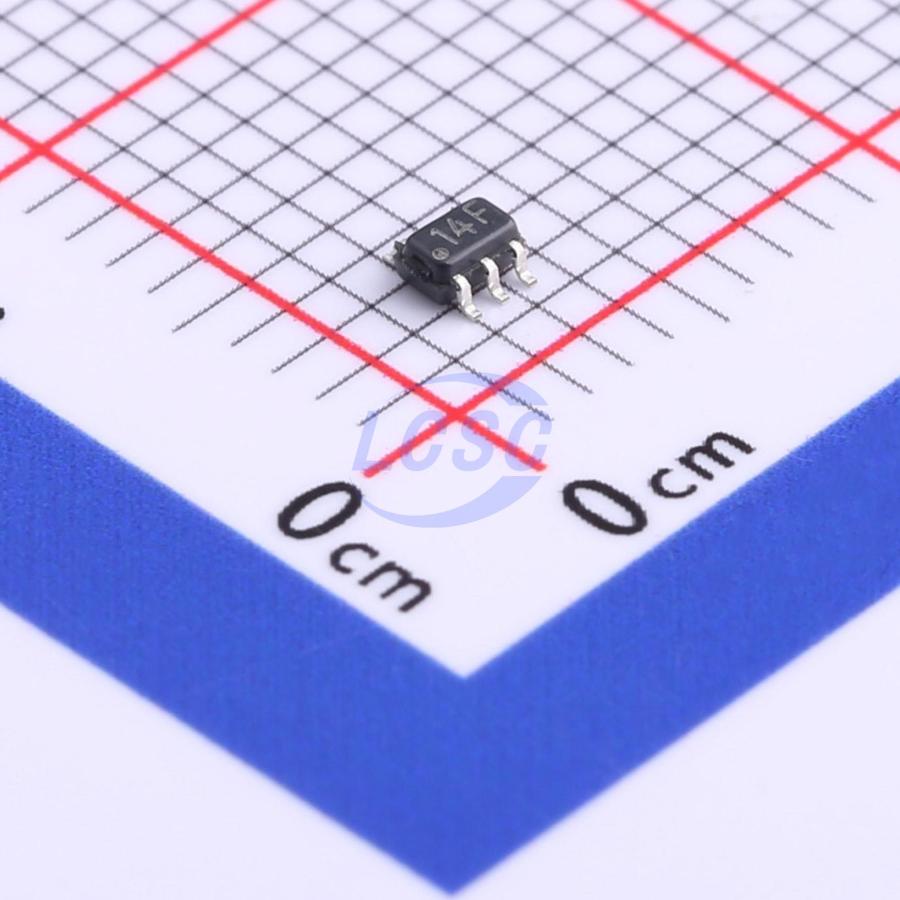

TLV521DCKR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SC-70-5

SC-70-5ROHS3 CompliantActive

Nano-power, RRIO, CMOS input operational amplifier

Manufacturer: TI
Manufacturer part #: TLV521DCKR
Store part #: C655085
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,188 in stock

#C655085

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹84.24	₹84.24
10+	₹68.35	₹683.50
30+	₹60.30	₹1,809.00
100+	₹52.25	₹5,225.00
500+	₹47.67	₹23,835.00
1,000+	₹39.40	₹39,400.00

Quantity (min 1)

1 × ₹84.24

₹84.24

excl. GST

₹99.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV521DCKR

₹84.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 11mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 2.9V/ms
Input Offset Current(Ios): 0.05pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 350nA
Gain Bandwidth Product: 6kHz
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 300nV/√Hz@100Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

The TLV521 is a 350nA nano-power op amp. Its CMOS input stage is carefully designed to achieve an ultra-low Ibias of 1pA, minimizing IBIAS and IOS errors that could affect sensitive applications such as megohm-level resistors, high-resistance photodiodes, and charge sensing. Additionally, the built-in EMI protection reduces the device's susceptibility to unintended RF signals emitted by mobile phones and RFID readers. The TLV521 is available in a 5-pin SC70 package and operates over a temperature range of -40°C to 125°C.

Applications

Wireless remote sensors
Power line monitoring
Energy meters
Battery-powered industrial sensors
Ultra-low-power oxygen and toxic gas sensors
Active RFID readers
Zigbee-based sensors (for HVAC control)
Energy harvesting-powered sensor networks
Current sensing
Blood glucose monitoring

Key features

Unmatched price-to-performance ratio
Ultra-low supply current – typical 350nA, maximum 500nA
Wide operating voltage range: 1.7V to 5.5V
Low TCVOS: 1.5μV/°C
VOS: 3mV (maximum)
Input bias current: 1pA
PSRR: 100dB
CMRR: 90dB
Open-loop gain: 110dB
Gain bandwidth product: 6kHz
Slew rate: 2.5V/ms
Input voltage noise (at ζ = 100Hz): 300nV/√Hz
Temperature range: -40°C to 125°C
Rail-to-rail input and output (RRIO)
