TIDatasheet (PDF)

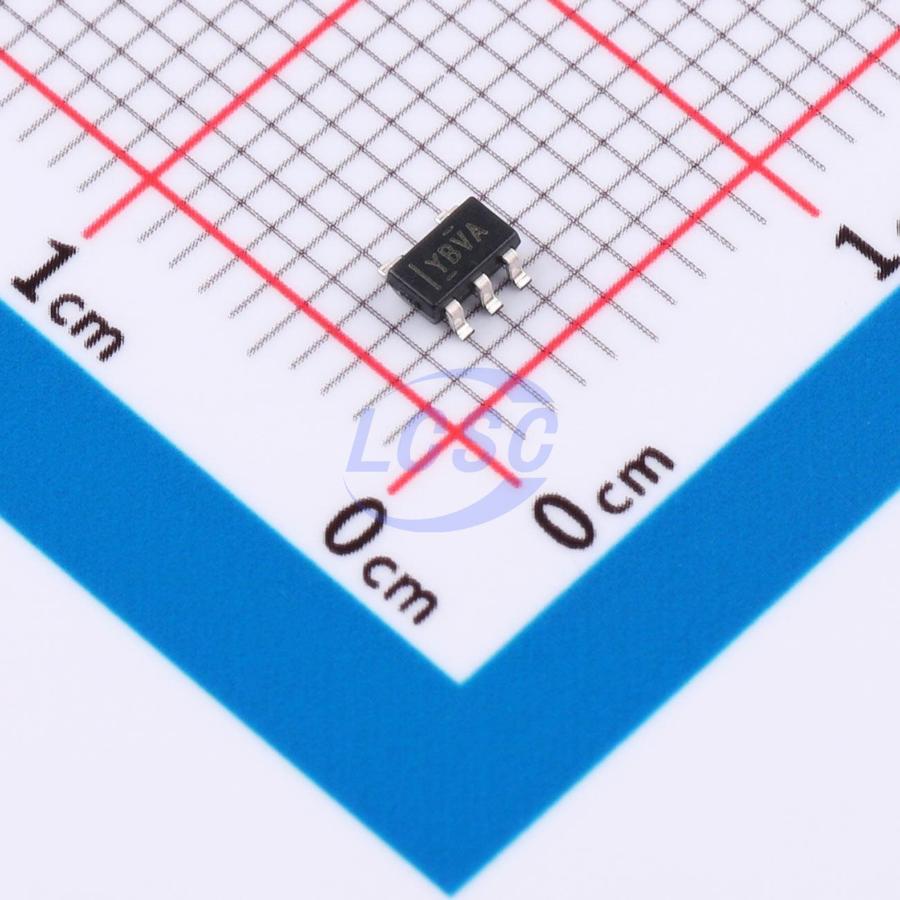

TLV70130DBVR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 24V, ultra-low IQ, low-dropout regulator for providing 3V and 3.3V outputs
- Manufacturer
- TI
- Manufacturer part #
- TLV70130DBVR
- Store part #
- C2870570
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C2870570
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹206.27 | ₹206.27 |
| 10+ | ₹201.52 | ₹2,015.20 |
| 30+ | ₹198.44 | ₹5,953.20 |
| 100+ | ₹195.34 | ₹19,534.00 |
1 × ₹206.27
₹206.27
excl. GST
₹243.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70130DBVR
₹206.27 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
The TLV701xx series low-dropout (LDO) regulators are ultra-low quiescent current devices designed for extremely power-sensitive applications. Quiescent current remains constant across the full load current and ambient temperature range. These devices are ideal power management companions for low-power microcontrollers. The TLV701xx operates over an input voltage range of 2.5 V to 24 V, making it an excellent choice for both battery-powered systems and industrial applications with significant line transients. The TLV701xx is available in a 3-mm × 3-mm SOT23-5 package, well-suited for cost-effective board manufacturing.
Applications
- Ultra-low-power microprocessor
- Electronic meters, fire alarm/smoke detection systems
- Handheld peripherals
- Industrial/automotive applications
- Remote controllers
- Zigbee networks
- PDA portable, battery-powered instruments
Key features
- Wide input voltage range: 2.5 V to 24 V
- Low 3.2-μA quiescent current
- Ground pin current: 3.4 μA at IOUT = 100 μA
- Stable with any capacitor (>0.47 μF)
- SOT23-5 package
- Operating junction temperature range: -40°C to +125°C
