TIDatasheet (PDF)

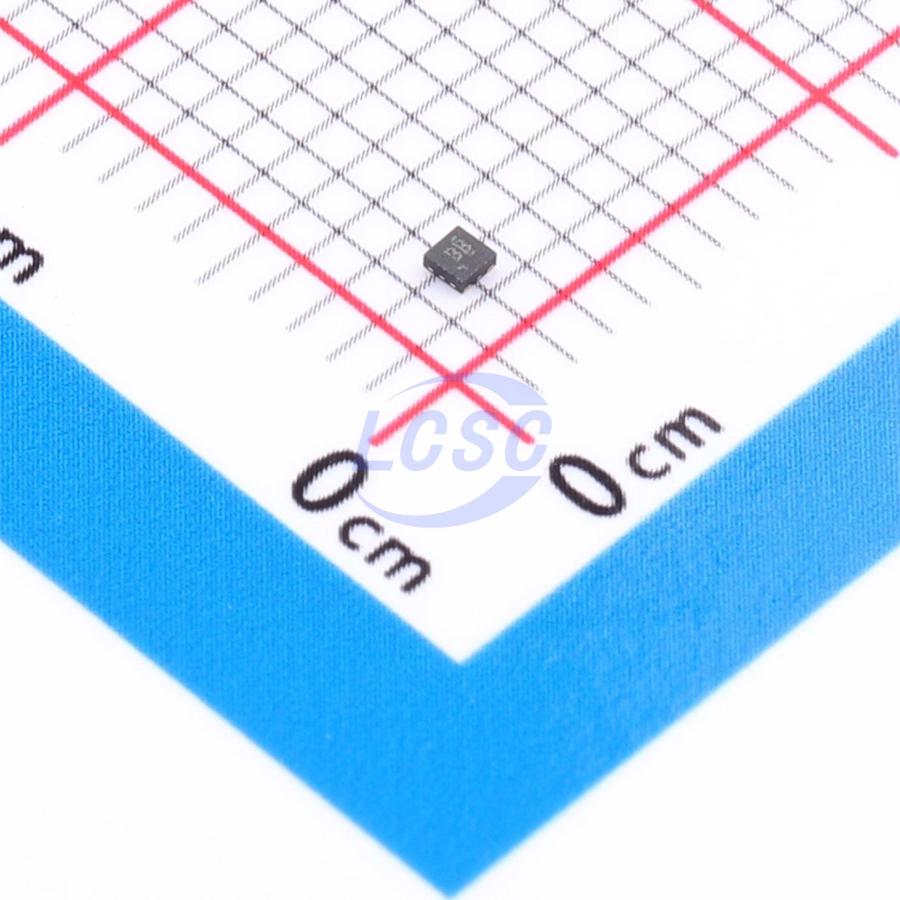

TLV70710DQNR
1V Positive Fixed X2-SON-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV70710DQNR
- Store part #
- C2876088
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
225 in stock
#C2876088
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.12 | ₹85.60 |
| 50+ | ₹16.68 | ₹834.00 |
| 150+ | ₹16.38 | ₹2,457.00 |
| 500+ | ₹16.09 | ₹8,045.00 |
5 × ₹17.12
₹85.60
excl. GST
₹101.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70710DQNR
₹85.60 for 5 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP110AMX100TBG#C606300onsemi · XDFN4(1x1) | onsemi | XDFN4(1x1) | 120 | ₹56.43 · 120 in stock | View |
 | TLV74010PDQNR#C2995549TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 190 | ₹5.53 · 190 in stock | View |
 | TPS7A0510PDQNR#C2867748TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 20 | ₹30.34 · 20 in stock | View |
 | TLV73310PDQNR#C2870906TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 190 | ₹25.98 · 190 in stock | View |
| TLV70710PDQNR#C2876089TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | On request | ₹24.22 · 0 in stock | View | |
