TIDatasheet (PDF)

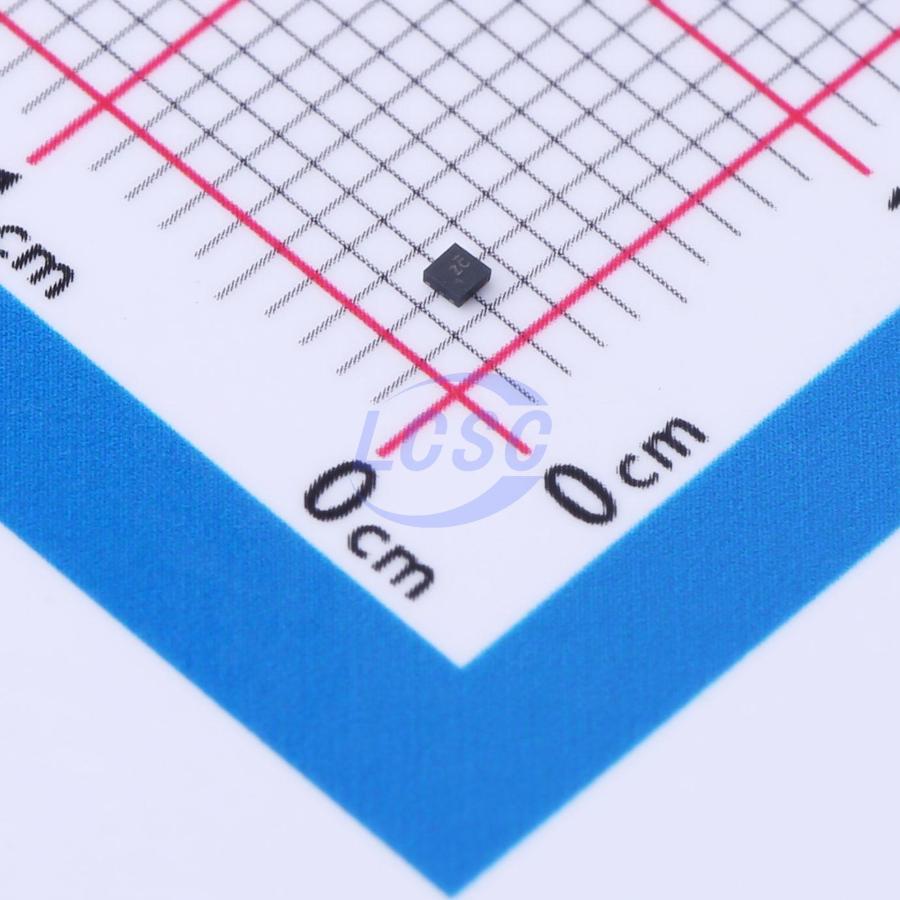

TLV70718DQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV70718DQNR
- Store part #
- C2870448
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C2870448
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.86 | ₹114.30 |
| 50+ | ₹17.98 | ₹899.00 |
| 150+ | ₹15.58 | ₹2,337.00 |
| 500+ | ₹13.45 | ₹6,725.00 |
| 3,000+ | ₹12.87 | ₹38,610.00 |
| 6,000+ | ₹12.53 | ₹75,180.00 |
5 × ₹22.86
₹114.30
excl. GST
₹134.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70718DQNR
₹114.30 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70718PDQNR#C2862295TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 1,575 | ₹16.47 · 1,575 in stock | View |
 | TLV75518PDQNT#C2873590TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 5 | ₹120.30 · 5 in stock | View |
 | TLV74218PDQNR#C485140TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 3,450 | ₹10.74 · 3,450 in stock | View |
 | VRH1802LVX#C697973AnaSem · X2-SON-4-EP(1x1) | AnaSem | X2-SON-4-EP(1x1) | 60 | ₹9.59 · 60 in stock | View |
 | TP73318PDQNR#C2923366TECH PUBLIC · DFN-4-EP(1x1) | TECH PUBLIC | DFN-4-EP(1x1) | 5,040 | ₹26.95 · 5,040 in stock | View |
