TIDatasheet (PDF)

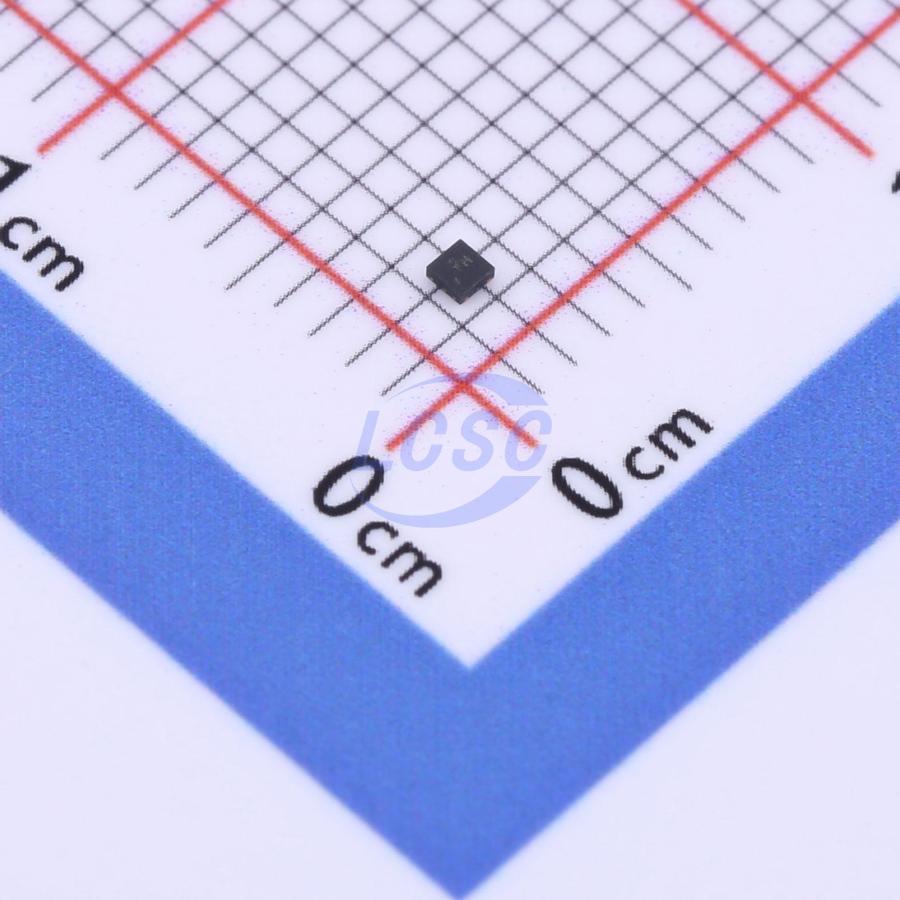

TLV70733DQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV70733DQNR
- Store part #
- C2876095
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
185 in stock
#C2876095
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.96 | ₹154.80 |
| 50+ | ₹24.30 | ₹1,215.00 |
| 150+ | ₹21.05 | ₹3,157.50 |
| 500+ | ₹18.15 | ₹9,075.00 |
| 3,000+ | ₹17.36 | ₹52,080.00 |
| 6,000+ | ₹16.88 | ₹1,01,280.00 |
5 × ₹30.96
₹154.80
excl. GST
₹182.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70733DQNR
₹154.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
