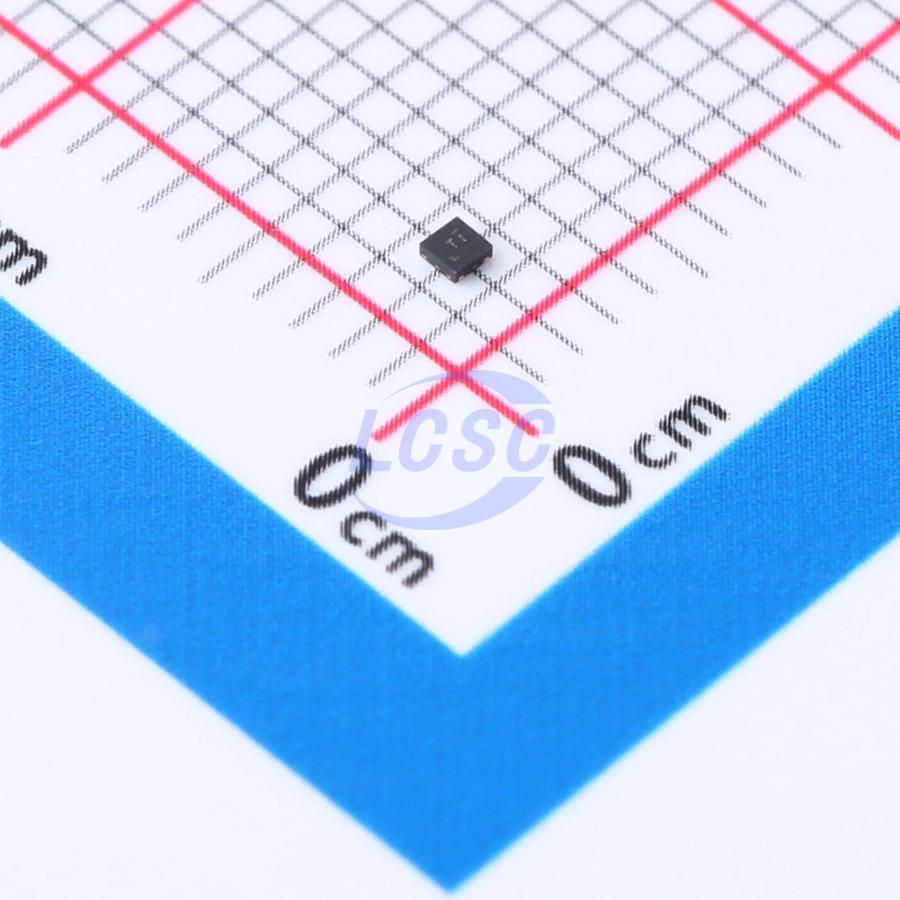

TLV70733PDQNT
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low-dropout regulator with enable and active output discharge functionality
- Manufacturer
- TI
- Manufacturer part #
- TLV70733PDQNT
- Store part #
- C2870449
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
352 in stock
#C2870449
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.76 | ₹96.76 |
| 10+ | ₹78.72 | ₹787.20 |
| 30+ | ₹69.59 | ₹2,087.70 |
| 250+ | ₹60.67 | ₹15,167.50 |
| 500+ | ₹55.24 | ₹27,620.00 |
| 1,000+ | ₹52.63 | ₹52,630.00 |
1 × ₹96.76
₹96.76
excl. GST
₹114.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
TLV70733PDQNT
₹96.76 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70733PDQNR#C2870924TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 10 | ₹17.09 · 10 in stock | View |
 | RS3217-3.3XUTDN4#C42459585RUNIC · XDFN-4-EP(1x1) | RUNIC | XDFN-4-EP(1x1) | 8,900 | ₹8.65 · 8,900 in stock | View |
 | BU33UA3WNVX-TL#C510081ROHM · DFN-4-EP(1x1) | ROHM | DFN-4-EP(1x1) | 4,770 | ₹32.45 · 4,770 in stock | View |
 | TLV70733DQNR#C2876095TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 185 | ₹30.96 · 185 in stock | View |
 | TLV74233PDQNR#C469916TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 240 | ₹18.80 · 240 in stock | View |
