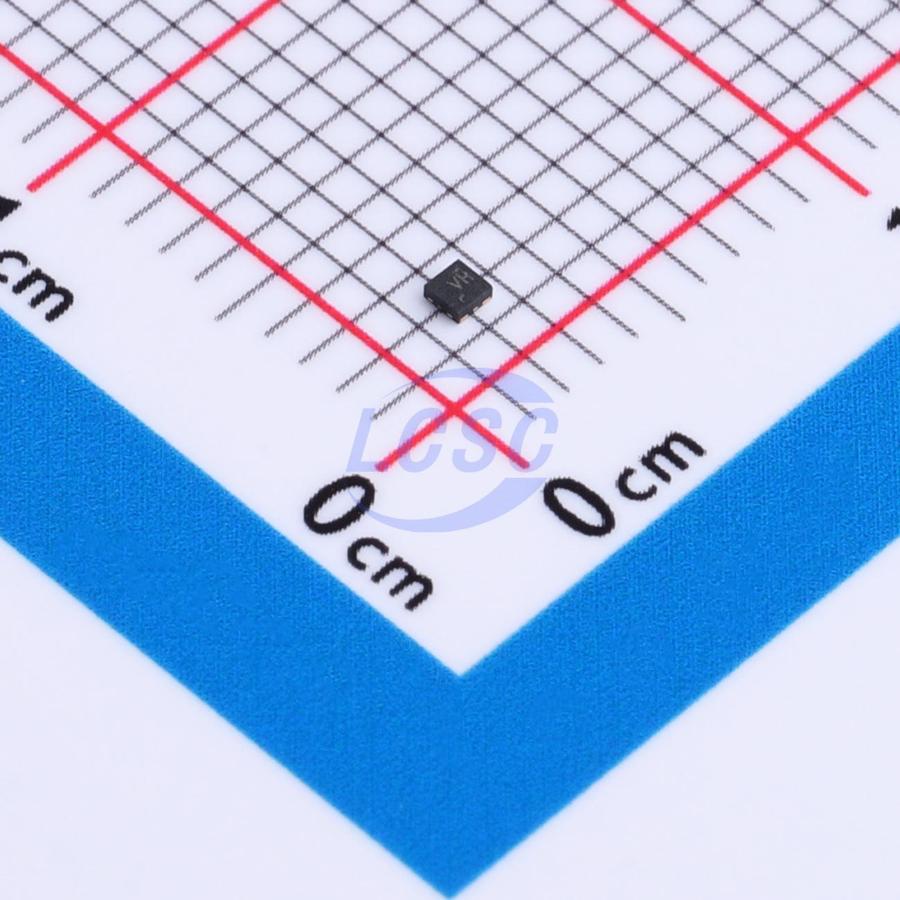

TLV71736PDQNR

The TLV717P series of low-dropout linear regulators (LDOs) feature low quiescent current and excellent line and load transient performance, making them suitable for power-sensitive applications. Devices in this series offer a typical accuracy of 0.5%. When the load resistance decreases, the TLV717P series can provide foldback current to reduce the output current. The initial typical value of current foldback is 350 mA; the typical value of the output short-circuit current limit is 40 mA. Additionally, these devices can remain stable with an effective output capacitance of only 0.1 μF. This characteristic allows the use of cost-effective capacitors with high bias voltage and temperature derating. These devices can be regulated to a specific accuracy without an output load. The TLV717P series comes in a 1 mm × 1 mm DQN package, making it ideal for handheld applications. The TLV717P provides an active pull-down circuit for rapid discharge of the output load.

Applications

• Personal computers (PCs) and laptops
• Smartphones
• Portable electronic devices and battery-powered equipment
• Electronic point-of-sale

Key features

• Ultra-low dropout: 215mV at 150mA
• Accuracy: 0.5% (typical)
• Low IQ: 35μA
• Fixed output voltage options: 1.2V to 5V
• High PSRR: 70dB at 1kHz, 50dB at 1MHz
• Stable with 0.1μF effective output capacitor
• Foldback current limiting
• Package: 1mm x 1mm DQN
