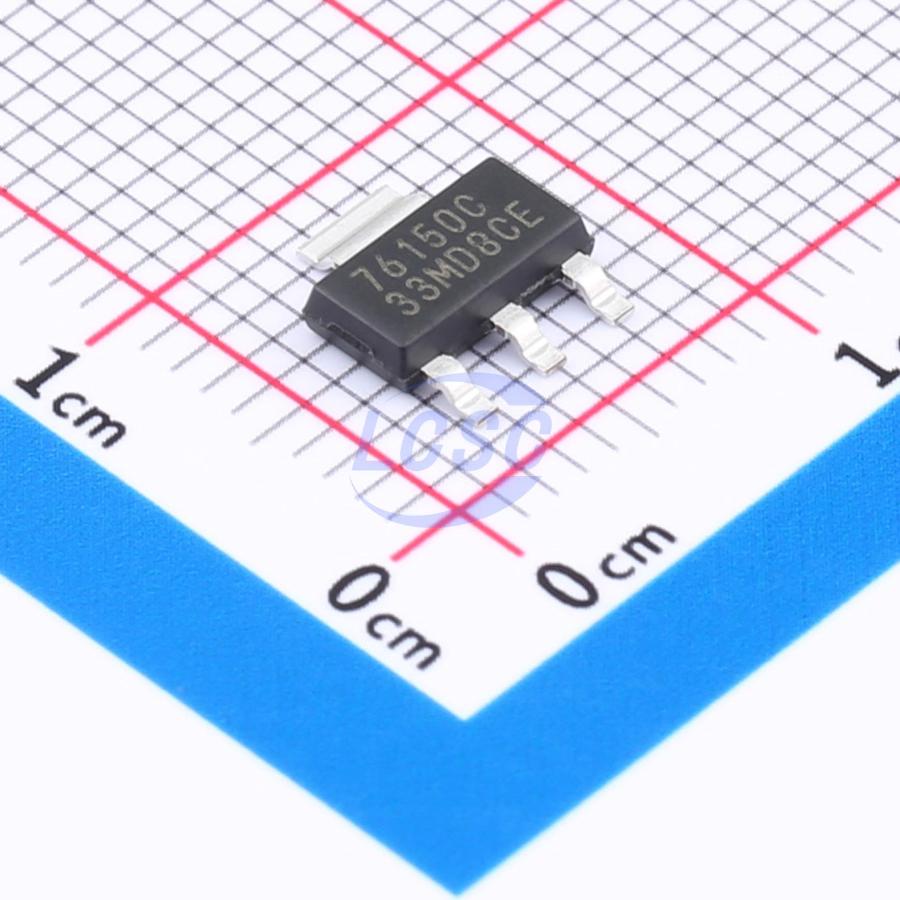

TLV76150DCYR

The TLV761 is a linear voltage regulator that improves the functionality of a traditional x1117 regulator (TLV1117 or LM1117) with tighter output accuracy and low quiescent current (I_Q) to lower the standby power consumption. The TLV761 is pin-to-pin compatible with other fixed SOT-223 regulators. The TLV761 input voltage range is from 2.5 V to 16 V and provides an output voltage range from 0.8 V to 13 V to support a wide variety of applications. The wide bandwidth PSRR performance of the TLV761 is typically greater than 60 dB at 1 kHz and 40 dB at 1 MHz, which helps attenuate the switching frequency of an upstream DC/DC converter and minimizes post regulator filtering. Additionally, the TLV761 has an internal soft start feature to reduce inrush current during start-up, which can help save space and cost in a design by minimizing input capacitance. The TLV761 features a foldback current limit that limits the power dissipation of the device during high-load current faults or shorting events.

Applications

• Appliances
• Home theater and entertainment
• Motor drives
• HVAC and building security systems
• Smart meters

Key features

• Pin-compatible with industry-standard LM1117 and TLV1117 (x1117) devices in select packages
• Input voltage range V_IN: 2.5 V to 16 V
• Output voltage range V_OUT: 0.8 V to 13 V (fixed, 100-mV steps)
• Output current: Up to 1 A
• Low quiescent current I_Q: 60 μA (typical, ~1.5 μA in shutdown)
• 1% output accuracy over line, load and temperature
• High PSRR: 60 dB at 1 kHz, 40 dB at 1 MHz
• Internal soft-start time: 500 μs (typical)
• Foldback current limiting and thermal protection
• Stable with 1-μF ceramic output capacitors
• Temperature range: -40°C to +125°C
• Package: 4-pin, 6.50-mm×3.50-mm SOT-223
