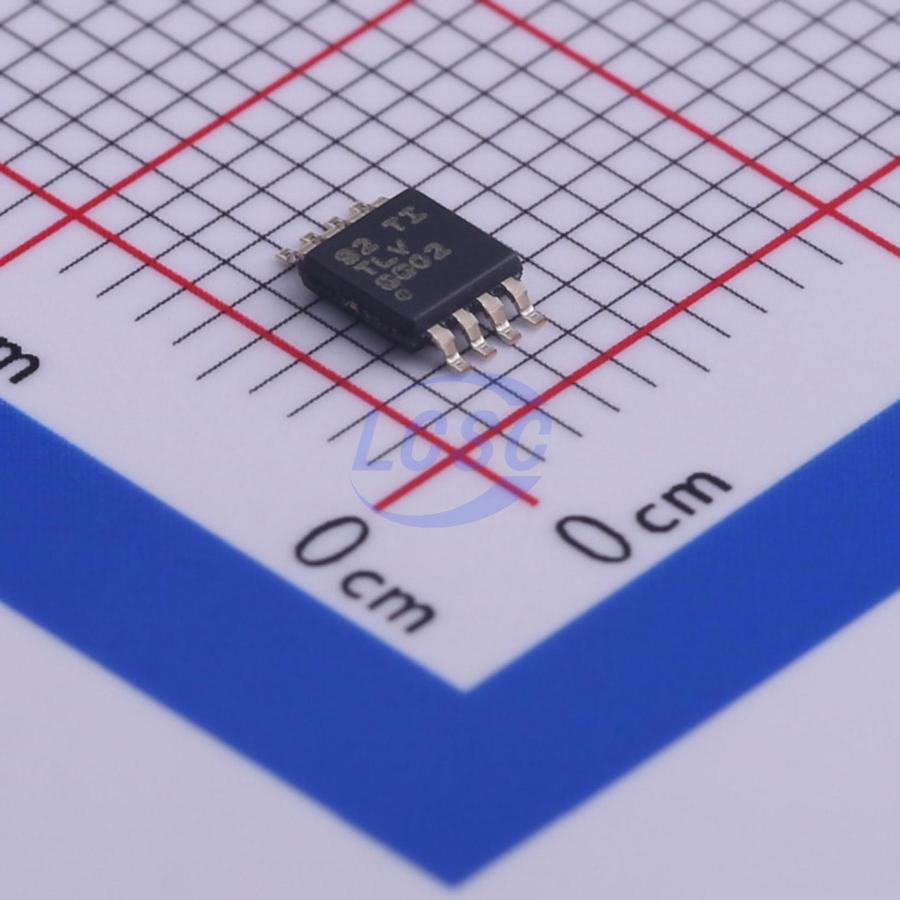

TLV8802DGKR

The TLV8801 (single) and TLV8802 (dual) family of ultra-low-power operational amplifiers are ideal for cost-optimized sensing applications in wireless and low power wired equipment. The TLV880x amplifiers minimize power consumption in equipment such as CO detectors, smoke detectors and motion detecting security systems (like PIR motion sensing) where operational battery-life is critical. They also have a carefully designed CMOS input stage enabling very low, femto-amp bias currents, thereby reducing IBIAS and I₀ₛ errors that would otherwise impact sensitive applications like transimpedance amplifier (TIA) configurations with megaohm feedback resistors, and high source impedance sensing applications. Additionally, built-in EMI protection reduces sensitivity to unwanted RF signals from sources like mobile phones, WiFi, radio transmitters and tag readers. The TLV8801 (single) and TLV8802 (dual) channel versions are available in industry standard 5-pin SOT23 and 8-pin VSSOP packages respectively.

Applications

• Gas Detectors such as CO detectors and O₂ detectors
• Motion Detectors Using PIR Sensors
• Ionization Smoke Alarms
• Thermostats
• Remote Sensors, IoT (Internet of Things)
• Active RFID Readers and Tags
• Portable Medical Equipment
• Portable Glucose Monitors

Key features

• For Cost-Optimized Systems Nanopower Supply Current: 320 nA/channel
• Offset Voltage: 4.5 mV (max)
• Good TcVos: 1 μV/σ
• Unity Gain-Bandwidth: 6 kHz
• Unity-Gain Stable
• Low Input Bias Current: 0.1pA
• Wide Supply Range: 1.7 V to 5.5 V
• Rail-to-Rail Output
• No Output Reversals
• EMI Protection
• Temperature Range: -40°C to 125°C
• Industry Standard Packages: Single in 5-pin SOT-23 Dual in 8-pin VSSOP
