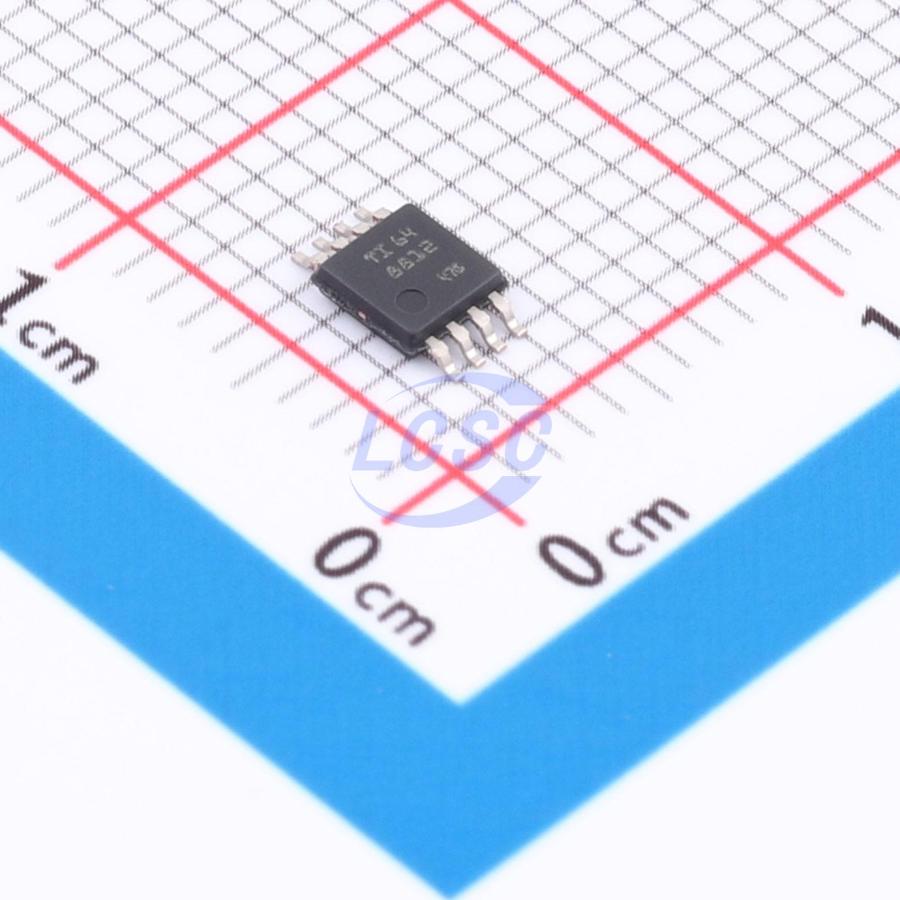

TLV8812DGKR

4.7mA 2 500uV 0.0015V/us 98dB 0.1pA 425nA 6kHz Rail-to-rail output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

Precision nano-power operational amplifiers for cost-optimized systems

Manufacturer: TI
Manufacturer part #: TLV8812DGKR
Store part #: C2057582
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,891 in stock

#C2057582

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹75.40	₹75.40
10+	₹63.66	₹636.60
30+	₹55.41	₹1,662.30
100+	₹48.67	₹4,867.00
500+	₹46.72	₹23,360.00
1,000+	₹45.42	₹45,420.00

Quantity (min 1)

1 × ₹75.40

₹75.40

excl. GST

₹88.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV8812DGKR

₹75.40 for 1 + GST

Specifications

Output Current: 4.7mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 0.0015V/us
Input Offset Current(Ios): 0.1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 98dB
Ib - Input Bias Current: 0.1pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 425nA
Gain Bandwidth Product: 6kHz
Features: Built-in compensation;EMI filtering/RF suppression;Reverse-phase input protection
Input Voltage Noise Density: 450nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 1.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The TLV8811 (single-channel) and TLV8812 (dual-channel) precision ultra-low-power op amp series are ideal for cost-optimized, "always-on" sensing applications in battery-powered wireless devices and low-power wired devices. With 6kHz bandwidth, 425nA quiescent current, and offset voltage trimmed below 500μV, the TLV881x amplifiers deliver high accuracy while minimizing power consumption for battery-life-sensitive devices such as CO gas detectors and portable electronics. The CMOS input stage is carefully designed to achieve ultra-low picoampere-level currents, reducing IBIAS and IOS errors that would otherwise compromise performance in high source impedance sensing applications. Built-in EMI protection reduces device susceptibility to unintended RF signals from cell phones, WiFi, wireless transmitters, and tag readers. The TLV8811 (single-channel) and TLV8812 (dual-channel) are offered in industry-standard 5-pin SOT-23 and 8-pin VSSOP packages, respectively.
