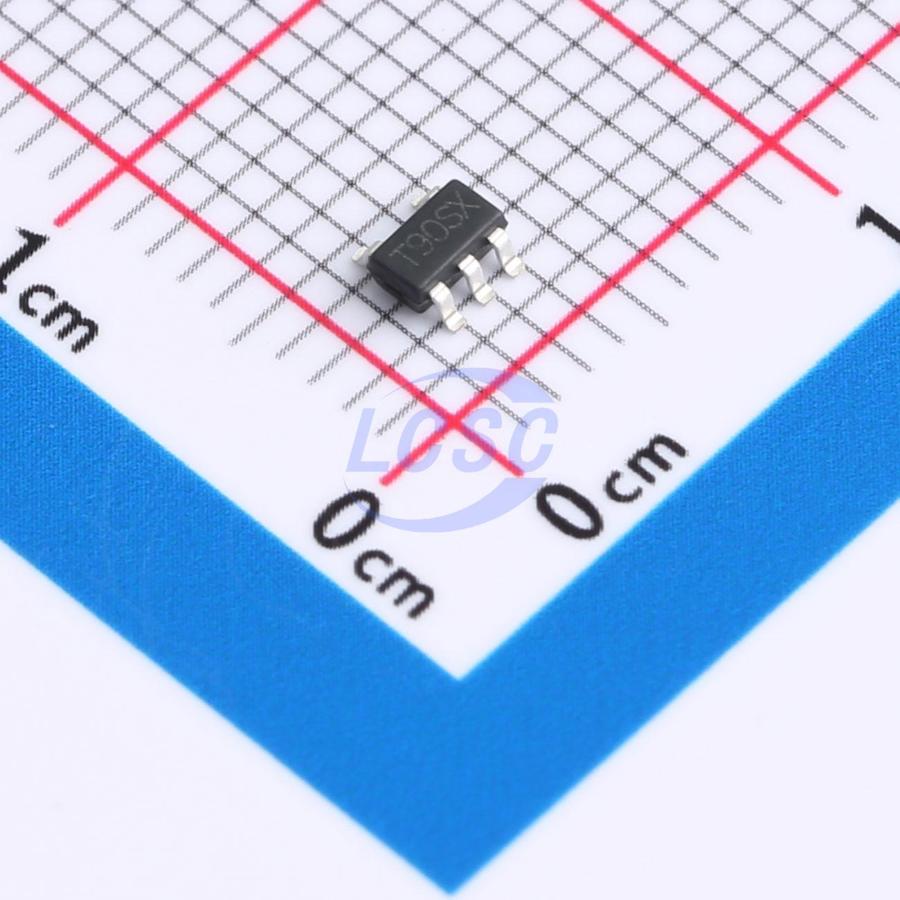

TLV9001IDBVR-HXY

45mA 1 1mV 1V/us 80dB 5pA 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps

SOT-23-5LRoHSActive

CMOS operational amplifiers

Manufacturer: HXY MOSFET
Manufacturer part #: TLV9001IDBVR-HXY
Store part #: C42432859
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,885 in stock

#C42432859

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.98	₹89.90
50+	₹14.13	₹706.50
150+	₹12.20	₹1,830.00
500+	₹10.74	₹5,370.00
3,000+	₹9.59	₹28,770.00
6,000+	₹9.01	₹54,060.00

Quantity (min 5, multiples of 5)

5 × ₹17.98

₹89.90

excl. GST

₹106.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9001IDBVR-HXY

₹89.90 for 5 + GST

Specifications

Output Current: 45mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -55℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 28uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 65nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-750mV;750mV~2.75V
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The TLV9001IDBVR (single-channel) is a general-purpose, low-offset, high-frequency-response, low-power op amp. This amplifier family offers an excellent 1MHz bandwidth, 1V/μs slew rate, and quiescent current of only 28μA per channel at 5V supply, making it suitable for a wide range of applications. The op amp is designed to deliver optimal performance in low-voltage, low-power systems. Its input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices provide rail-to-rail output swing under heavy loads. The TLV9001IDBVR series op amps are fully specified over the complete temperature range of -55°C to +125°C, operating from 1.5V to 5.5V single or dual supply.

Applications

Battery and power control
Audio output
Smoke/gas/environmental sensors
Portable and mobile devices
Sensor interface

Key features

Input offset voltage: 1mV (typical)
Low supply current: 28μA (V_S = 5V)
Supply voltage range: 1.5V to 5.5V
Gain bandwidth product: 1MHz (V_S = 5V)
Slew rate: 1V/μs (V_S = 5V)
Rail-to-rail input and output
Low cost
