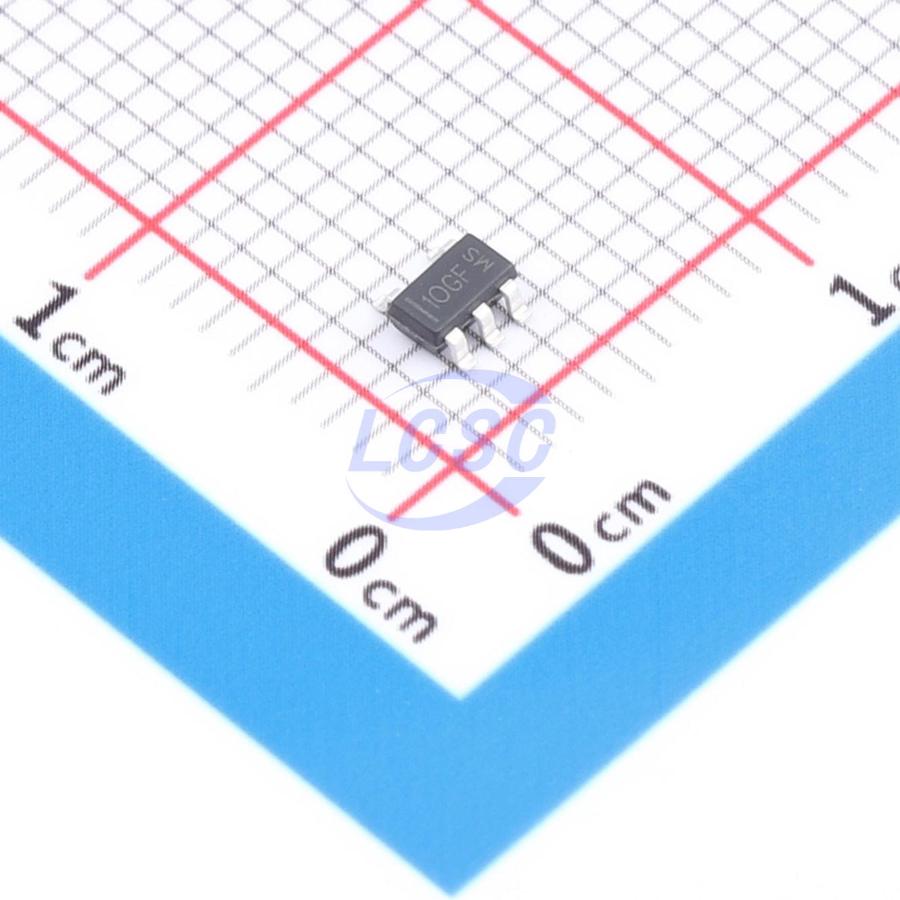

TLV9001IDBVR-MS
5pA 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TLV9001IDBVR-MS
- Store part #
- C54539959
- Package / case
- SOT-23-5
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,355 in stock
#C54539959
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.02 | ₹95.10 |
| 50+ | ₹15.11 | ₹755.50 |
| 150+ | ₹13.15 | ₹1,972.50 |
| 500+ | ₹11.70 | ₹5,850.00 |
| 3,000+ | ₹10.52 | ₹31,560.00 |
| 6,000+ | ₹9.94 | ₹59,640.00 |
5 × ₹19.02
₹95.10
excl. GST
₹112.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV9001IDBVR-MS
₹95.10 for 5 + GST
Specifications
- number of channels
- 1
- Ib - Input Bias Current
- 5pA
- Operating Temperature
- -40℃~+85℃
- Input Offset Current(Ios)
- 1pA
- Vos - Input Offset Voltage
- 1mV
- Output Current
- 45mA
- Common Mode Rejection Ratio (CMRR)
- 80dB
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Single Supply
- 1.8V~5.5V
- Dual Supply
- -900mV~2.75V;900mV~2.75V
- Slew Rate
- 1V/us
- Noise density(eN)
- 65nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
