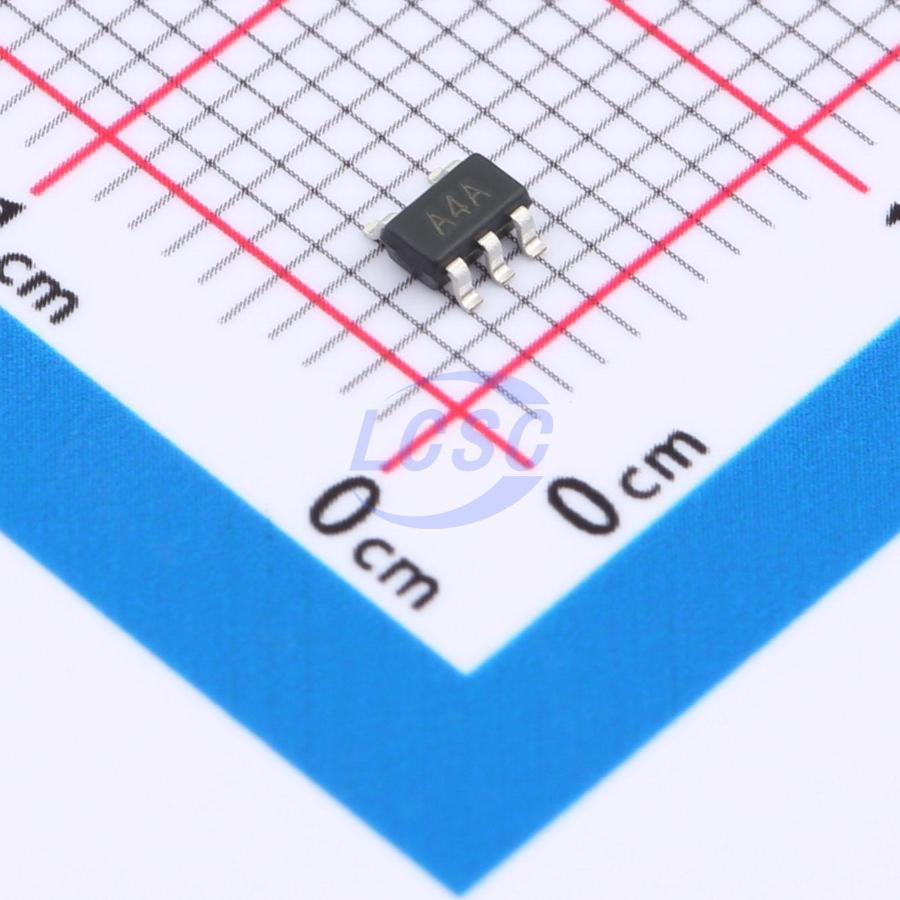

MS8541ARTZ-REEL

1 500uV 1.2V/us 95dB 2pA 28uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

CMOS operational amplifier

Manufacturer: MSKSEMI
Manufacturer part #: MS8541ARTZ-REEL
Store part #: C42403124
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,580 in stock

#C42403124

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.80	₹74.00
50+	₹11.76	₹588.00
150+	₹10.24	₹1,536.00
500+	₹9.10	₹4,550.00
3,000+	₹8.18	₹24,540.00
6,000+	₹7.73	₹46,380.00

Quantity (min 5, multiples of 5)

5 × ₹14.80

₹74.00

excl. GST

₹87.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MS8541ARTZ-REEL

₹74.00 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 650nV/℃
Quiescent Current: 28uA
Gain Bandwidth Product: 1.5MHz
Features: Zero drift / auto-zero
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

The MS8541 is a CMOS operational amplifier that uses the proprietary auto-calibration techniqu to simultaneousl provide very low offset voltage,near-zero drift over time and temperature.This miniature,high-precision,low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 200mV beyond the rails,andrai-torail output that swings within 50mV of the rails, single or dual supplies as low as 2.1V(±1.05V) and up to 5.5V(±2.75V )can be used.This device is optimized for low voltage,single supply operation. The MS8541 offers excellent CMRR without the crossover associated with traditional complementary input stages.This d esign results in superior performance for driving analog-to-digital converters (ADC)without degradation ofdifferential in earity. The MS8541 is available in the 5-pin SOT-23-5 and SC70-5 packages,and specified for operation from -25℃ to 125℃

Applications

Transducers
Temperature Measurement
Electronic Scales
Medical instrumentation
Handheld Test Equipment

Key features

VDD range: 2.1V to 5.5V
Low Ofset Voltage: 0.5mV (Typical)
Low Drift: 0.65μV/°C (Typical)
Low Noise
Quiescent Current: 28μA
Rail to Rail Input/Output
MicroSize Packages: SC70-5 and SOT23-5
