HXY MOSFETDatasheet (PDF)

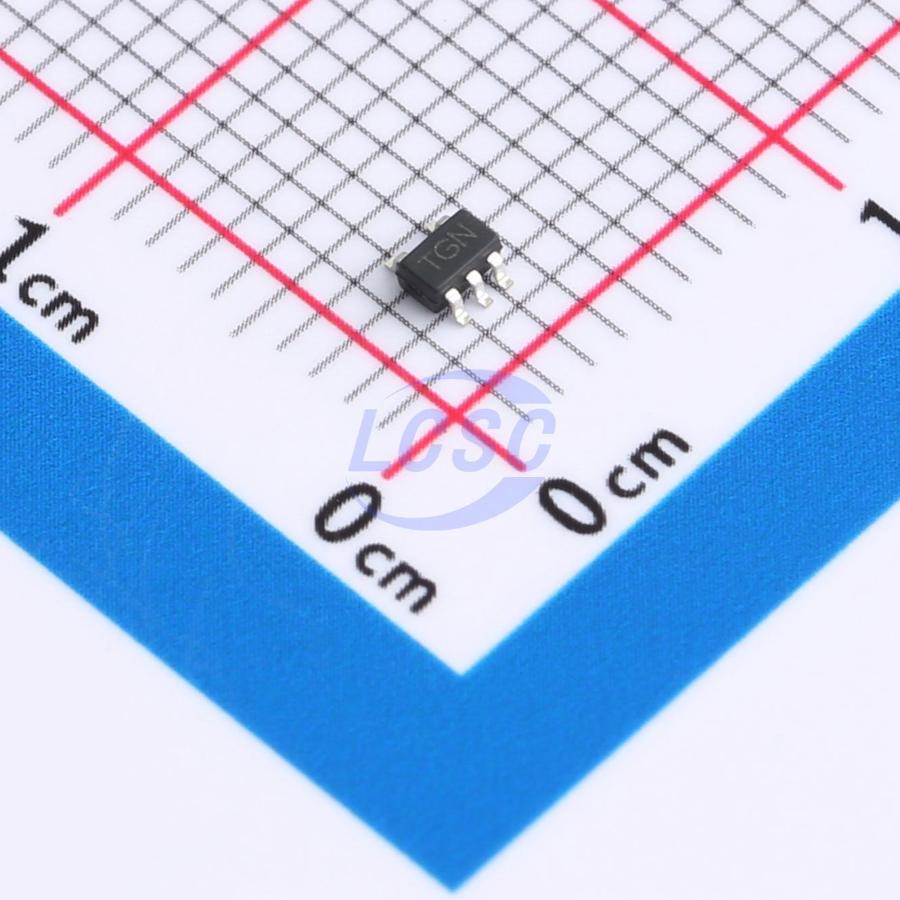

TLV9001IDCKR-HXY
45mA 1 1mV 1V/us 80dB 5pA 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps
SOT-353RoHSActive
CMOS operational amplifiers
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- TLV9001IDCKR-HXY
- Store part #
- C42432860
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C42432860
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.78 | ₹163.90 |
| 50+ | ₹25.90 | ₹1,295.00 |
| 150+ | ₹22.95 | ₹3,442.50 |
| 500+ | ₹19.28 | ₹9,640.00 |
| 3,000+ | ₹17.64 | ₹52,920.00 |
| 6,000+ | ₹16.64 | ₹99,840.00 |
5 × ₹32.78
₹163.90
excl. GST
₹193.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV9001IDCKR-HXY
₹163.90 for 5 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The TLV9001IDCKR (single-channel) is a general-purpose, low-offset, high-bandwidth, low-power op amp. This amplifier family offers an impressive 1MHz bandwidth, 1V/μs slew rate, and only 28μA quiescent current per channel at 5V, making it suitable for a wide range of designs. The TLV9001IDCKR op amp is designed to deliver performance in low-voltage, low-power systems. Its input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices can drive heavy loads to achieve rail-to-rail output swing. The TLV9001IDCKR series op amps are fully specified over the complete temperature range of -55°C to +125°C and operate from single or dual supplies of 1.5V to 5.5V.
Applications
- Battery and power control
- Audio output
- Smoke/gas/environmental sensors
- Portable and mobile devices
- Sensor interface
Key features
- Input offset voltage: 1mV (typical)
- Low supply current: 28 uA (Vs = 5 V)
- Supply range: 1.5 V ~ 5.5 V
- Gain bandwidth: 1 MHz (Vs = 5 V)
- Slew rate: 1 V/us (Vs = 5 V)
- Rail-to-rail input and output
- Low cost
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISL28113FEZ-T7A-HXY#C42432866HXY MOSFET · SOT-353 | HXY MOSFET | SOT-353 | 440 | ₹38.83 · 440 in stock | View |
