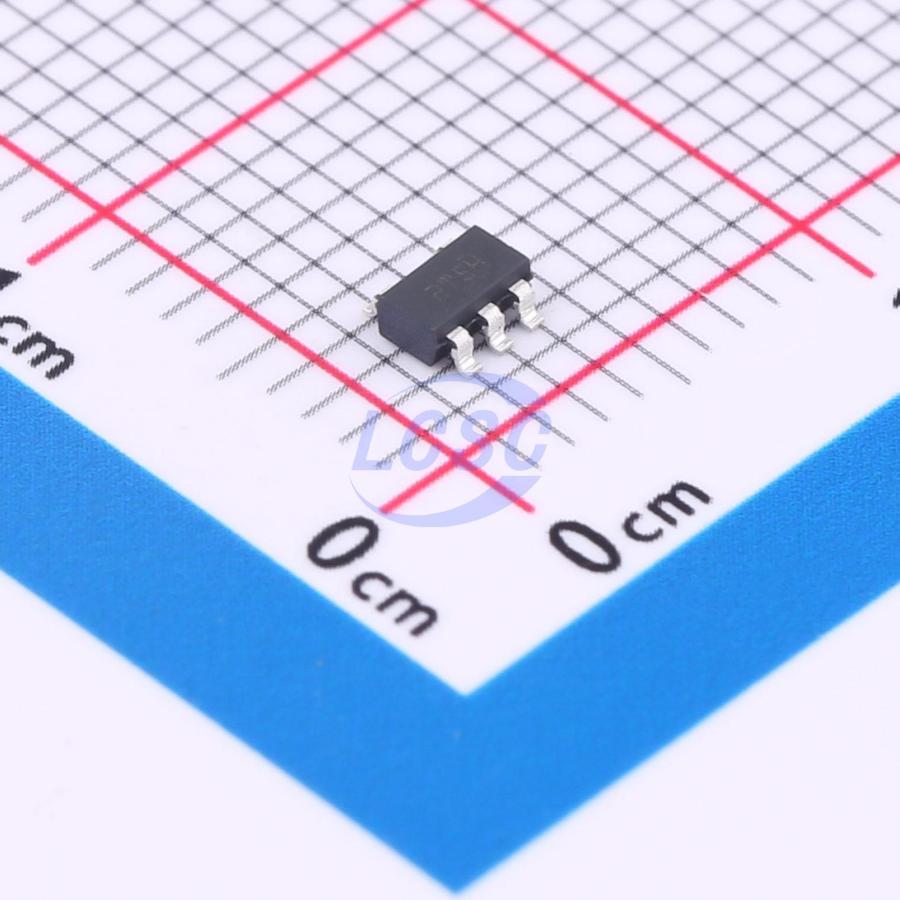

TLV9001QDBVRQ1

AEC-Q100 qualified for automotive applications – Temperature grade 1: -40°C to +125°C, TA Device HBM ESD classification level 2 Device CDM ESD classification level C6 Scalable CMOS amplifier for low-cost applications Rail-to-rail input and output Low input offset voltage: ±0.4 mV Unity-gain bandwidth: 1 MHz Low broadband noise: 27 nV/√Hz Low input bias current: 5 pA Low quiescent current: 60 μAVCh Unity-gain stable Internal RFI and EMI filter Operational at supply voltages as low as 1.8 V Easier to stabilize with higher capacitive load due to resistive open-loop output impedance Functional Safety-Capable Functional Safety Information The TLV900x-Q1 family includes single (TLV9001-Q1), dual (TLV9002-Q1), and quad-channel (TLV9004-Q1) low-voltage (1.8 V to 5.5 V) operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a cost-effective solution for space-constrained automotive applications such as infotainment and lighting where low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the TLV900x-Q1 family is 500 pF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads. These op amps are designed specifically for low-voltage operation (1.8 V to 5.5 V) with performance specifications similar to the TLV600x-Q1 devices. The robust design of the TLV900x-Q1 family simplifies circuit design. The op amps feature unity-gain stability, an integrated RFI and EMI rejection filter, and no-phase reversal in overdrive conditions.

Applications

• Optimized for AEC-Q100 grade 1 applications
• Infotainment and Cluster
• Passive safety
• Body electronics and lighting
• HEV/EV inverter and motor control
• On-board (OBC) and wireless charger
• Power-train current sensor
• Advanced driver assistance systems (ADAS)
• Single-supply, low-side, unidirectional current sensing circuit

Key features

• Rail-to-rail input and output
• Low input offset voltage: ±0.4 mV
• Unity-gain bandwidth: 1 MHz
• Low broadband noise: 27 nV/√Hz
• Low input bias current: 5 pA
• Low quiescent current: 60 μAVCh
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
• Functional Safety-Capable
