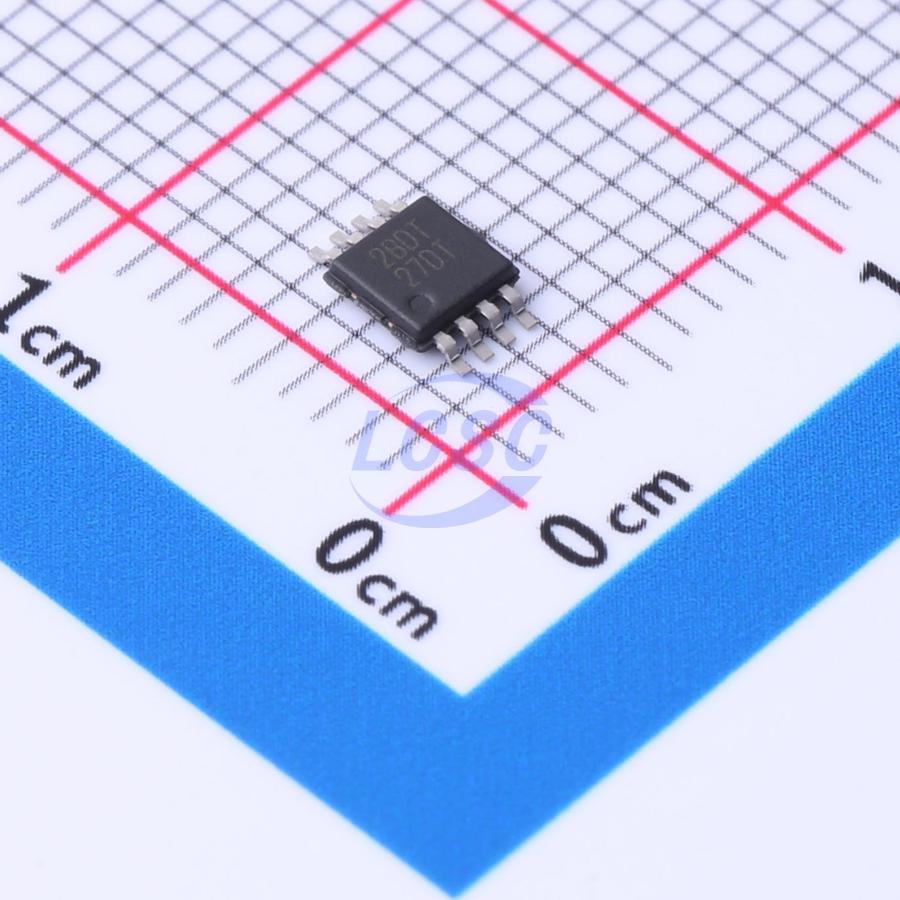

TLV9002QDGKRQ1
40mA 2 1.85mV 2V/us 95dB 5pA 60uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
Low-power RRIO 1MHz automotive operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV9002QDGKRQ1
- Store part #
- C4153696
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,760 in stock
#C4153696
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.25 | ₹166.25 |
| 50+ | ₹25.73 | ₹1,286.50 |
| 150+ | ₹22.50 | ₹3,375.00 |
| 500+ | ₹18.48 | ₹9,240.00 |
| 2,500+ | ₹16.70 | ₹41,750.00 |
| 5,000+ | ₹15.62 | ₹78,100.00 |
5 × ₹33.25
₹166.25
excl. GST
₹196.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV9002QDGKRQ1
₹166.25 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1.85mV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The TLV900x-Q1 series includes single-channel (TLV9001-Q1), dual-channel (TLV9002-Q1), and quad-channel (TLV9004-Q1) low-voltage (1.8V to 5.5V) operational amplifiers with rail-to-rail input and output swing capabilities. These operational amplifiers provide a cost-effective solution for automotive applications (such as infotainment systems and lighting) that are space-constrained and require low-voltage operation and high capacitive load driving. The capacitive load driver of the TLV900x-Q1 series has a capacitance of 500pF, and the resistive open-loop output impedance enables it to achieve stability more easily under higher capacitive loads. These operational amplifiers are designed for low operating voltages (1.8V to 5.5V), and their performance specifications are similar to those of the TLV600x-Q1 devices. The robust design of the TLV900x-Q1 series simplifies circuit design. These operational amplifiers are unity-gain stable, integrate RFI and EMI suppression filters, and do not exhibit phase reversal under overdrive conditions.
Applications
- Optimized for AEC-Q100 Grade 1 applications
- Infotainment systems and instrument clusters
- Passive safety
- Body electronics and lighting
- Hybrid/EV inverters and motor control
- On-board chargers (OBC) and wireless chargers
- Powertrain current sensors
- Advanced driver assistance systems (ADAS)
- Single-supply, low-side, unidirectional current sensing circuits
Key features
- AEC-Q100 qualified for automotive applications
- Temperature Grade 1: -40°C to +125°C, TA device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
- Scalable CMOS amplifier for cost-sensitive applications
- Rail-to-rail input and output
- Low input offset voltage: ±0.4mV
- Unity-gain bandwidth: 1MHz
- Low wideband noise: 27nV/√Hz
- Low input bias current: 5pA
- Low quiescent current: 60μA/channel
- Unity-gain stable
- Integrated RFI and EMI filter
- Operates from supply voltages as low as 1.8V
- Resistive open-loop output impedance for improved stability with high capacitive loads
- Functional Safety-compliant information available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV9002RQDGKRQ1#C47361285TI · VSSOP-8 | TI | VSSOP-8 | 168 | ₹173.84 · 168 in stock | View |
 | TLV9002IDGKR#C398361TI · VSSOP-8 | TI | VSSOP-8 | 21,420 | ₹33.25 · 21,420 in stock | View |
 | OPA2316IDGKR#C2058895TI · VSSOP-8 | TI | VSSOP-8 | 969 | ₹131.96 · 969 in stock | View |
 | OPA2322AIDGKR#C2058180TI · VSSOP-8 | TI | VSSOP-8 | 186 | ₹484.99 · 186 in stock | View |
 | OPA2316QDGKRQ1#C2060089TI · VSSOP-8 | TI | VSSOP-8 | 2 | ₹316.34 · 2 in stock | View |
