TIDatasheet (PDF)

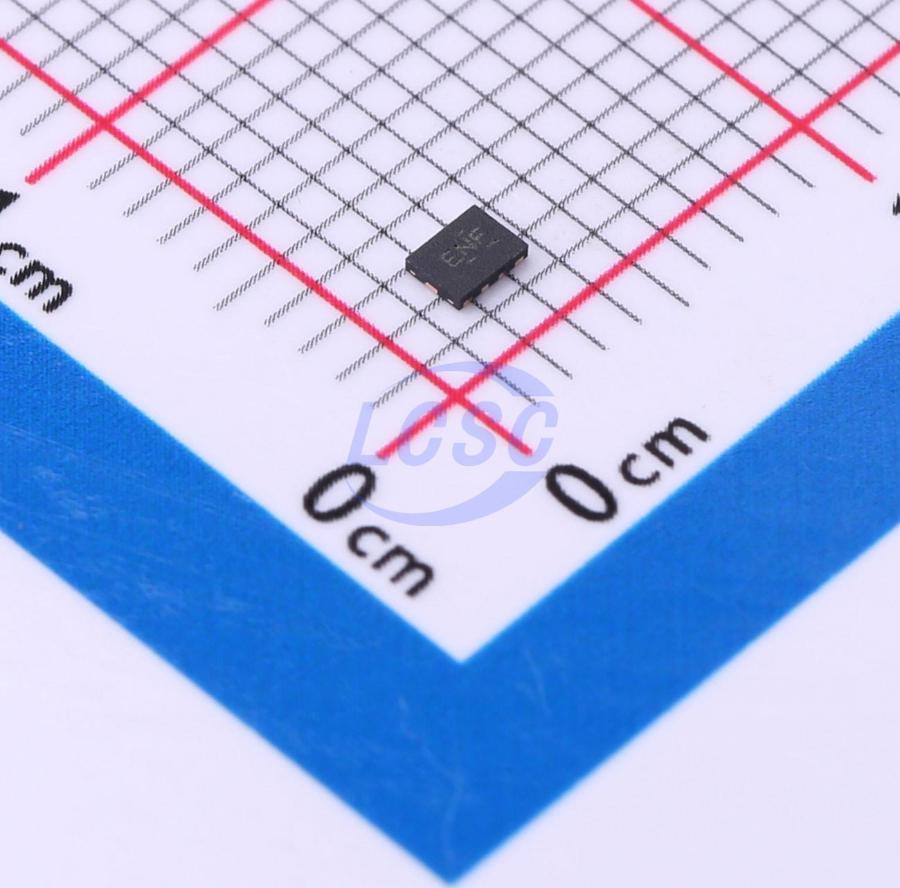

TLV9002SIRUGR
40mA 2 400uV 2V/us 5pA 86dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output X2QFN-10(1.5x2) Instrumentation, Op Amps, Buffer Amps RoHS
X2QFN-10(1.5x2)ROHS3 CompliantActive
Low-power, RRIO, 1MHz Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- TLV9002SIRUGR
- Store part #
- C2878950
- Package / case
- X2QFN-10(1.5x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,814 in stock
#C2878950
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.58 | ₹64.58 |
| 10+ | ₹53.34 | ₹533.40 |
| 30+ | ₹48.59 | ₹1,457.70 |
| 100+ | ₹42.76 | ₹4,276.00 |
| 500+ | ₹40.18 | ₹20,090.00 |
| 1,000+ | ₹38.45 | ₹38,450.00 |
1 × ₹64.58
₹64.58
excl. GST
₹76.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV9002SIRUGR
₹64.58 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 400uV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 75uA
- Features
- Enable/shutdown function;EMI filtering/RF suppression
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
The TLV900x series includes single-channel, dual-channel, and quad-channel low-voltage (1.8V to 5.5V) operational amplifiers with rail-to-rail input and output swing capabilities. These operational amplifiers provide a cost-effective solution for applications with limited space that require low-voltage operation and high capacitive load driving, such as smoke detectors, wearable electronics, and small appliances. The capacitive load driver of the TLV900x series has a capacitance of 500pF, and the resistive open-loop output impedance enables it to achieve stability more easily under higher capacitive loads. These operational amplifiers are designed for low operating voltages (1.8V to 5.5V), and their performance specifications are similar to those of TLV600x devices. The robust design of the TLV900x series simplifies circuit design. These operational amplifiers have unity-gain stability, integrate RFI and EMI suppression filters, and do not exhibit phase reversal under overdrive conditions. The TLV900x devices have a shutdown mode (TLV9001S, TLV9002S, and TLV9004S), allowing the amplifier to switch to a standby mode with a typical current consumption of less than 1μA. Micro packages (such as SOT - 553 and WSON) and industry-standard packages (such as SOIC, MSOP, SOT - 23, and TSSOP packages) are available for all channel models (single-channel, dual-channel, and quad-channel).
Applications
- Sensor signal conditioning
- Power supply modules
- Active filters
- Low-side current sensing
- Smoke detectors
- Motion detectors
- Wearable devices
- Large and small home appliances
- EPOS
- Barcode scanners
- Personal electronics
- HVAC
- Motor control: AC induction
Key features
- Scalable CMOS amplifier for cost-sensitive applications
- Rail-to-rail input and output
- Low input offset voltage: ±0.4mV
- Unity-gain bandwidth: 1MHz
- Low wideband noise: 27nV/√Hz
- Low input bias current: 5pA
- Low quiescent current: 60μA/channel
- Unity-gain stable
- Built-in RFI and EMI filter
- Operates from supply voltages as low as 1.8V
- Resistive open-loop output impedance for easier stabilization with higher capacitive loads
- Operating temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA2316SIRUGR#C2869628TI · X2QFN-10(1.5x2) | TI | X2QFN-10(1.5x2) | 1,002 | ₹132.17 · 1,002 in stock | View | |
 | OPA2990SIRUGR#C2871565TI · X2QFN-10(1.5x2) | TI | X2QFN-10(1.5x2) | 7 | ₹505.48 · 7 in stock | View |
 | TLV9052SIRUGR#C2862611TI · X2QFN-10(1.5x2) | TI | X2QFN-10(1.5x2) | 67 | ₹187.54 · 67 in stock | View |
 | TLV9062SIRUGR#C1849414TI · X2-QFN-10(1.5x2) | TI | X2-QFN-10(1.5x2) | 1,031 | ₹123.81 · 1,031 in stock | View |
| TLV9102SIRUGR#C1518674TI · X2QFN-10(1.5x2) | TI | X2QFN-10(1.5x2) | 54 | ₹210.46 · 54 in stock | View | |
