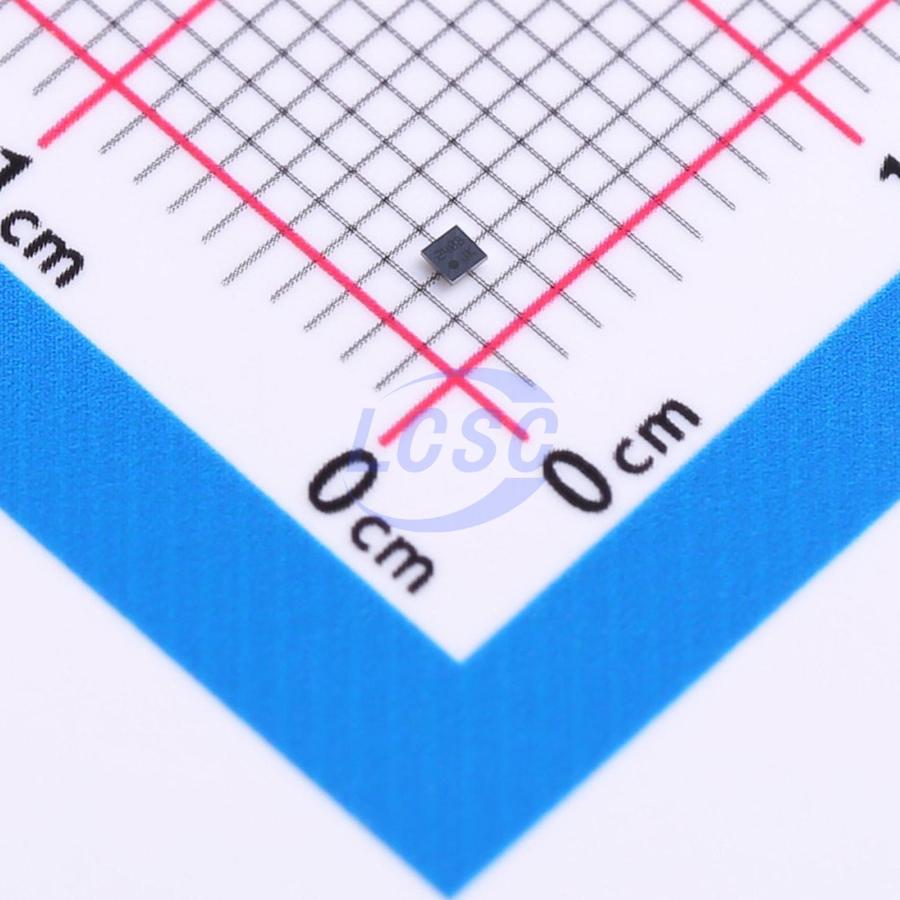

TLV9002SIYCKR

40mA 2 400uV 2V/us 95dB 5pA 60uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output DSBGA-9(1x1) Instrumentation, Op Amps, Buffer Amps RoHS

DSBGA-9(1x1)ROHS CompliantActive

Low-power, RRIO, 1MHz Operational Amplifier

Manufacturer: TI
Manufacturer part #: TLV9002SIYCKR
Store part #: C5214255
Package / case: DSBGA-9(1x1)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,731 in stock

#C5214255

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹81.81	₹81.81
10+	₹66.59	₹665.90
30+	₹58.75	₹1,762.50
100+	₹51.36	₹5,136.00
500+	₹46.79	₹23,395.00
1,000+	₹44.40	₹44,400.00

Quantity (min 1)

1 × ₹81.81

₹81.81

excl. GST

₹96.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9002SIYCKR

₹81.81 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 400uV
Slew Rate: 2V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1MHz
Features: Enable/shutdown function;EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@10kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The TLV900x series includes single-channel, dual-channel, and quad-channel low-voltage (1.8V to 5.5V) operational amplifiers with rail-to-rail input and output swing capabilities. These operational amplifiers provide a cost-effective solution for applications with limited space that require low-voltage operation and high capacitive load driving, such as smoke detectors, wearable electronics, and small appliances. The capacitive load driver of the TLV900x series has a capacitance of 500pF, and the resistive open-loop output impedance enables it to achieve stability more easily under higher capacitive loads. These operational amplifiers are designed for low operating voltages (1.8V to 5.5V), and their performance specifications are similar to those of TLV600x devices. The robust design of the TLV900x series simplifies circuit design. These operational amplifiers have unity-gain stability, integrate RFI and EMI suppression filters, and do not exhibit phase reversal under overdrive conditions. The TLV900x devices have a shutdown mode (TLV9001S, TLV9002S, and TLV9004S), allowing the amplifier to switch to a standby mode with a typical current consumption of less than 1μA. Micro packages (such as SOT - 553 and WSON) and industry-standard packages (such as SOIC, MSOP, SOT - 23, and TSSOP packages) are available for all channel models (single-channel, dual-channel, and quad-channel).

Applications

Sensor signal conditioning
Power supply modules
Active filters
Low-side current sensing
Smoke detectors
Motion detectors
Wearable devices
Large and small home appliances
EPOS
Barcode scanners
Personal electronics
HVAC
Motor control: AC induction

Key features

Scalable CMOS amplifier for cost-sensitive applications
Rail-to-rail input and output
Low input offset voltage: ±0.4mV
Unity-gain bandwidth: 1MHz
Low wideband noise: 27nV/√Hz
Low input bias current: 5pA
Low quiescent current: 60μA/channel
Unity-gain stable
Built-in RFI and EMI filter
Operates from supply voltages as low as 1.8V
Resistive open-loop output impedance for easier stabilization with higher capacitive loads
Operating temperature range: -40°C to 125°C
