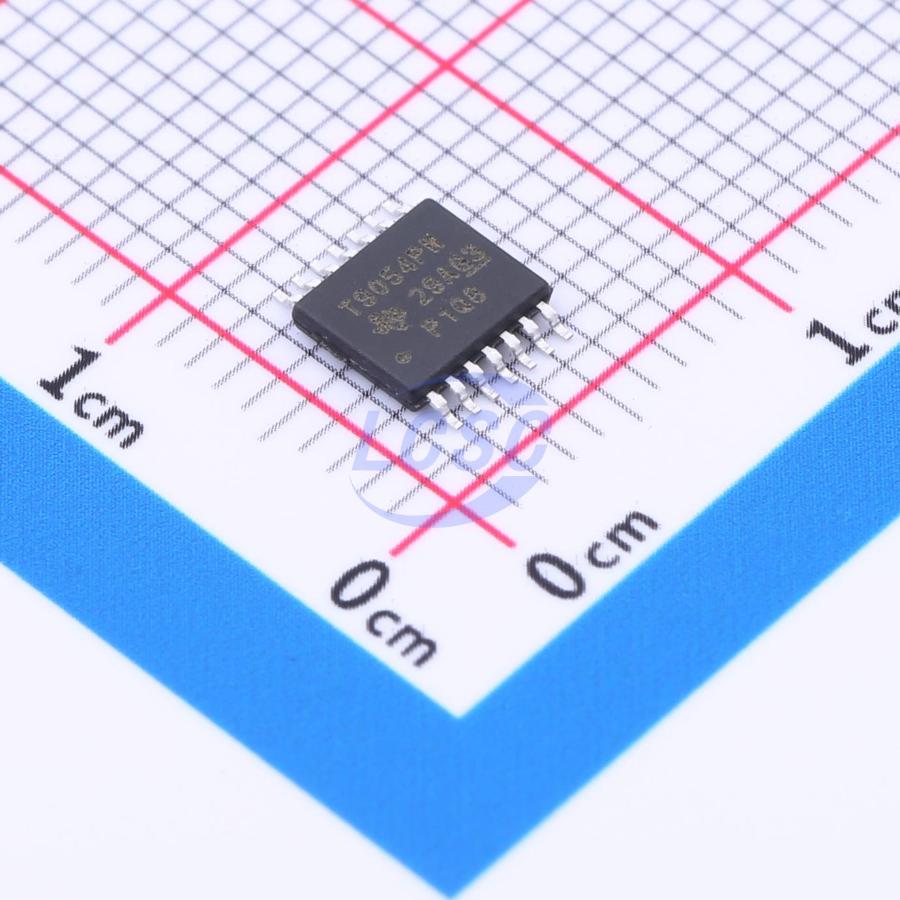

TLV9054IPWR

The TLV9051, TLV9052, and TLV9054 are single, dual, and quad operational amplifiers, respectively. These devices are designed to operate at low voltages from 1.8V to 6.0V. They achieve rail-to-rail input and output at very high slew rates. These devices are well suited for cost-sensitive applications requiring low supply voltage, high slew rate, and low quiescent current. The TLV905x series capacitive load driver supports up to 150pF, while the resistive open-loop output impedance enables easier stabilization at higher capacitive loads. The TLV905xS devices feature a shutdown mode that allows the amplifier to switch to a standby mode with typical current consumption below 1μA. The TLV905x series is easy to use due to its unity-gain stability, integrated RFI and EMI filters, and freedom from phase inversion under overdrive conditions.

Applications

• HVAC
• Photodiode amplifier
• Current shunt monitoring for DC motor control
• White goods (refrigerators, washing machines, etc.)
• Sensor signal conditioning
• Active filter
• Low-side current sensing

Key features

• High slew rate: 15V/µs
• Low quiescent current: 330µA
• Rail-to-rail input and output
• Low input offset voltage: ±0.33 mV
• Unity-gain bandwidth: 5MHz
• Low wideband noise: 15 nV/√Hz
• Low input bias current: 2pA
• Unity-gain stable
• Built-in RFI and EMI filters
• Scalable CMOS op-amp family for cost-sensitive applications
• Operates at supply voltages as low as 1.8V
• Operating temperature range: -40°C to 125°C
