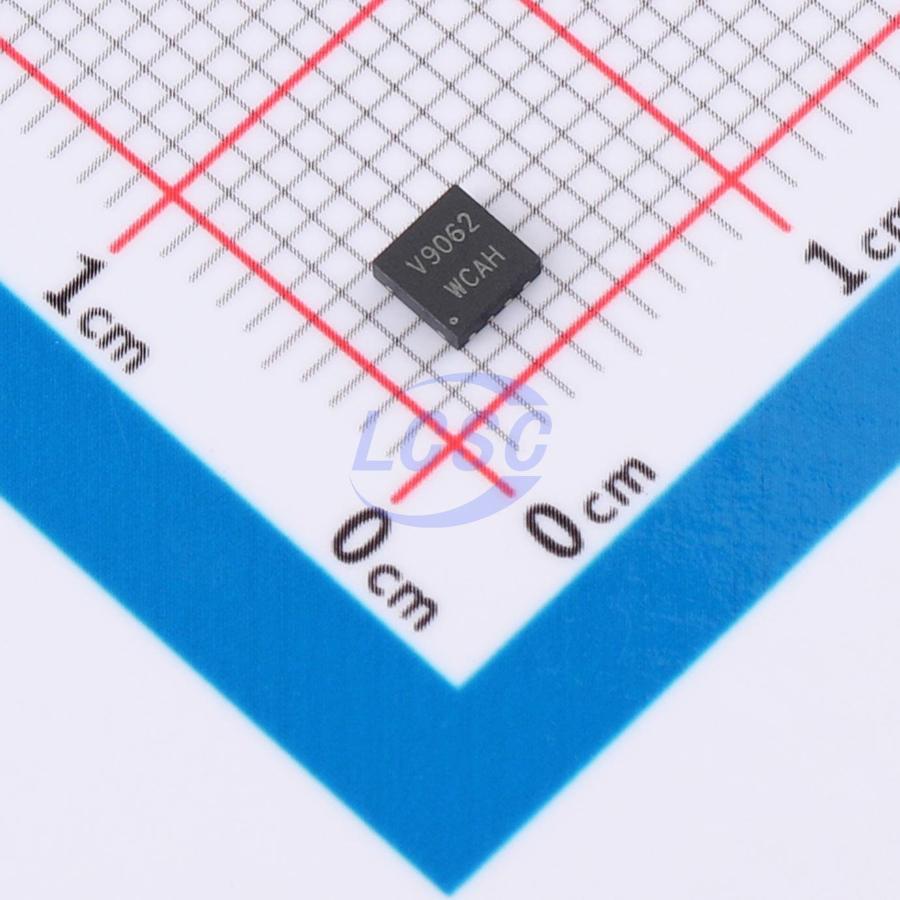

TLV9062DQ3/TR-HG

70mA 2 3.5mV 9V/us 1pA 82dB 11MHz 1.1mA Rail-to-Rail Input, Rail-to-Rail Output DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: TLV9062DQ3/TR-HG
Store part #: C53311466
Package / case: DFN-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,920 in stock

#C53311466

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹25.06	₹125.30
50+	₹19.81	₹990.50
150+	₹17.54	₹2,631.00
500+	₹14.74	₹7,370.00
2,500+	₹13.48	₹33,700.00
5,000+	₹12.73	₹63,650.00

Quantity (min 5, multiples of 5)

5 × ₹25.06

₹125.30

excl. GST

₹147.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

TLV9062DQ3/TR-HG

₹125.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 70mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Gain Bandwidth Product: 11MHz
Quiescent Current: 1.1mA
Input Voltage Noise Density: 11.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.176 g
