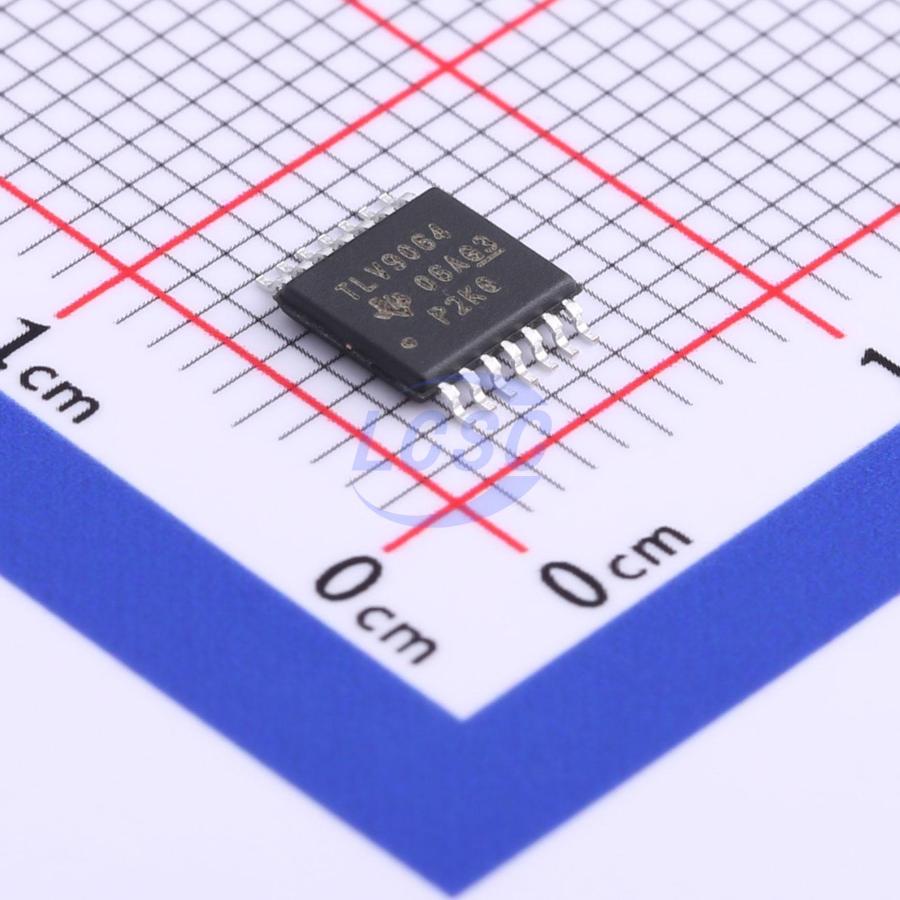

TLV9064IPWR

The TLV9061 (single-channel), TLV9062 (dual-channel), and TLV9064 (quad-channel) are single, dual, and quad low-voltage (1.8V to 5.5V) operational amplifiers with rail-to-rail input and output swing capabilities. These devices are cost-effective solutions for applications that require low operating voltage, small package size, and high capacitive load drive capability. Although the TLV906x has a capacitive load drive capability of 100 pF, the resistive open-loop output impedance facilitates easier stability at higher capacitive loads. These operational amplifiers are designed for low operating voltages (1.8V to 5.5V) and have performance specifications similar to those of the OPAx316 and TLVx316 devices.

Applications

• Electric bicycles
• Smoke detectors
• HVAC: Heating, Ventilation, and Air Conditioning
• Motor control: AC induction
• Refrigerators
• Wearables
• Laptops
• Washing machines
• Sensor signal conditioning
• Power modules
• Barcode scanners
• Active filters
• Low-side current sensing

Key features

• Rail-to-rail input and output
• Low input offset voltage: ±0.3mV
• Unity-gain bandwidth: 10MHz
• Low wideband noise: 10nV/√Hz
• Low input bias current: 0.5pA
• Low quiescent current: 538μA
• Unity-gain stable
• Internal RFI and EMI filters
• Operates from supply voltages as low as 1.8V
• Resistive open-loop output impedance for easier stabilization with higher capacitive loads
• Shutdown version: TLV906xS
• Extended temperature range: -40°C to +125°C
• TLV900x devices feature a shutdown mode that allows the amplifier to switch to standby mode with typical current consumption below 1μA
• TLV906xS series simplifies system design with unity-gain stability, integrated RFI and EMI suppression filters, and no phase inversion under overdrive conditions
• Miniature packages (e.g., SOT-553 and WSON) and industry-standard packages (e.g., SOIC, MSOP, SOT-23, and TSSOP) available for all channel configurations (single, dual, and quad)
