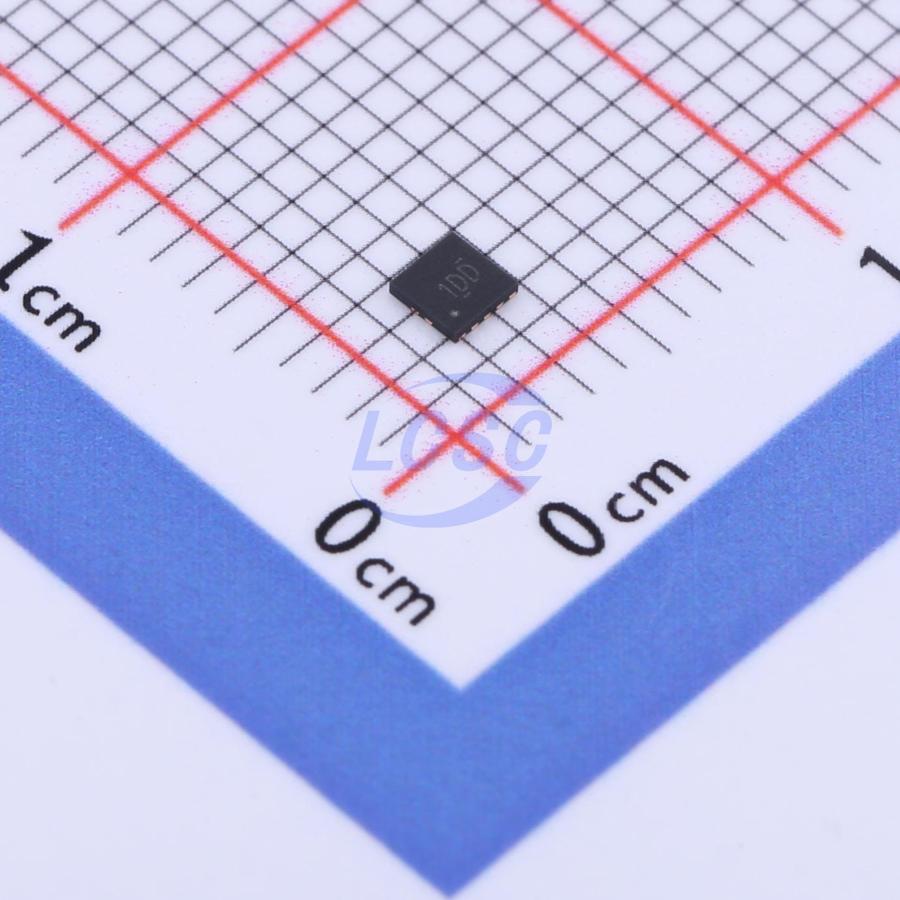

TLV9064IRUCR

50mA 4 1.6mV 6.5V/us 87dB 0.5pA 538uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output QFN-14(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

QFN-14(2x2)ROHS3 CompliantActive

10 MHz, RRIO, CMOS operational amplifier

Manufacturer: TI
Manufacturer part #: TLV9064IRUCR
Store part #: C2878947
Package / case: QFN-14(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,242 in stock

#C2878947

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹180.50	₹180.50
10+	₹164.03	₹1,640.30
30+	₹148.64	₹4,459.20
100+	₹137.16	₹13,716.00
500+	₹132.39	₹66,195.00
1,000+	₹130.01	₹1,30,010.00

Quantity (min 1)

1 × ₹180.50

₹180.50

excl. GST

₹212.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9064IRUCR

₹180.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 4
Vos - Input Offset Voltage: 1.6mV
Slew Rate: 6.5V/us
Input Offset Current(Ios): 0.05pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 87dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 530nV/℃
Quiescent Current: 538uA
Gain Bandwidth Product: 10MHz
Features: Enable/shutdown function;EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 16nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.049 g

Overview

The TLV9061 (single-channel), TLV9062 (dual-channel), and TLV9064 (quad-channel) are single, dual, and quad low-voltage (1.8V to 5.5V) operational amplifiers with rail-to-rail input and output swing capabilities. These devices are cost-effective solutions for applications that require low operating voltage, small package size, and high capacitive load driving capability. Although the TLV906x has a capacitive load driving capability of 100pF, the resistive open-loop output impedance facilitates easier stability at higher capacitive loads. These operational amplifiers are designed for low operating voltages (1.8V to 5.5V) and have performance specifications similar to those of the OPAx316 and TLVx316 devices.

Applications

Electric bicycles
Smoke detectors
HVAC motor control
AC induction refrigerators
Wearable devices
Laptops
Washing machines
Sensor signal conditioning
Power modules
Barcode scanners
Active filters
Low-side current sensing

Key features

Rail-to-rail input and output
Low input offset voltage: ±0.3mV
Unity-gain bandwidth: 10MHz
Low wideband noise: 10nV/√Hz
Low input bias current: 0.5pA
Low quiescent current: 538μA
Unity-gain stable
Internal RFI and EMI filters
Operates from supply voltages as low as 1.8V
Resistive open-loop output impedance for easier stabilization with higher capacitive loads
Shutdown version: TLV906xS
Extended temperature range: -40°C to +125°C
TLV900x devices feature a shutdown mode that allows the amplifier to switch to standby mode with typical current consumption below 1μA
The TLV906xS family simplifies system design with unity-gain stability, integrated RFI and EMI rejection filters, and no phase inversion under overdrive conditions
Available in compact packages (e.g., SOT-553 and WSON) and industry-standard packages (e.g., SOIC, MSOP, SOT-23, and TSSOP) for all channel configurations (single, dual, and quad)
