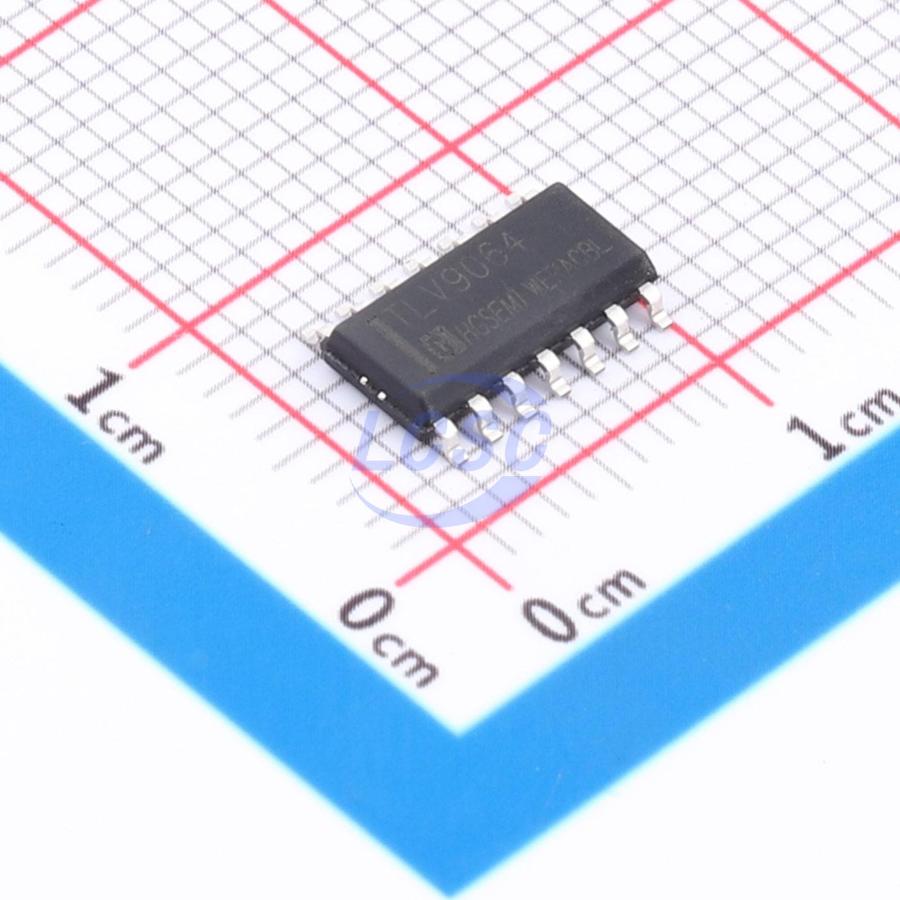

TLV9064M/TR
70mA 4 3.5mV 9V/us 1pA 82dB 11MHz 1.1mA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
11MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- HGSEMI
- Manufacturer part #
- TLV9064M/TR
- Store part #
- C44606412
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C44606412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.99 | ₹124.95 |
| 50+ | ₹21.83 | ₹1,091.50 |
| 150+ | ₹20.47 | ₹3,070.50 |
| 500+ | ₹18.77 | ₹9,385.00 |
| 2,500+ | ₹18.02 | ₹45,050.00 |
| 5,000+ | ₹17.57 | ₹87,850.00 |
5 × ₹24.99
₹124.95
excl. GST
₹147.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV9064M/TR
₹124.95 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Gain Bandwidth Product
- 11MHz
- Quiescent Current
- 1.1mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.293 g
