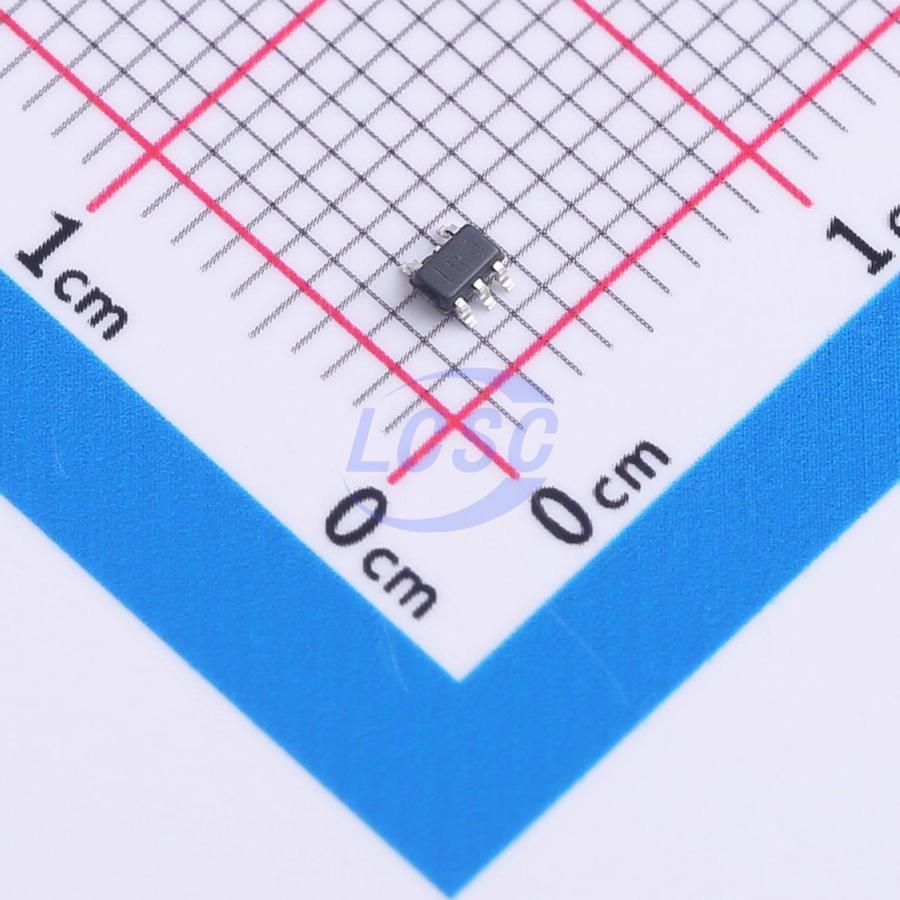

TLV9101IDCKR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SC-70-5

SC-70-5ROHS3 CompliantActive

Rail-to-rail input/output, low-power operational amplifier

Manufacturer: TI
Manufacturer part #: TLV9101IDCKR
Store part #: C4367797
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,663 in stock

#C4367797

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹89.05	₹89.05
10+	₹75.37	₹753.70
30+	₹65.59	₹1,967.70
100+	₹57.78	₹5,778.00
500+	₹55.17	₹27,585.00
1,000+	₹53.65	₹53,650.00

Quantity (min 1)

1 × ₹89.05

₹89.05

excl. GST

₹105.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9101IDCKR

₹89.05 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 115uA
Gain Bandwidth Product: 1.1MHz
Features: Enable/shutdown function;EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 30nV/√Hz@1kHz
Dual Supply: -1.35V~8V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The TLV910x series (TLV9101, TLV9102, and TLV9104) is a series of 16V general-purpose operational amplifiers. This series features excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (±300μV, typical), low temperature drift (±0.6μV/°C, typical), and a 1.1MHz bandwidth. The TLV910x has a wide differential and common-mode input voltage range, high output current (±80mA, typical), high slew rate (4.5V/μs, typical), low-power operation (115μA, typical), and a shutdown function. Therefore, it is a stable, low-power, high-performance operational amplifier suitable for various industrial applications. The TLV910x series operational amplifiers are available in both miniature and standard packages, with a rated operating temperature range from -40°C to 125°C.

Applications

Optical modules
Portable test and measurement
Macro remote radio units (RRU)
Baseband units (BBU)
Electrical appliances

Key features

Rail-to-rail input and output
High bandwidth: 1.1MHz GBW
Low quiescent current: 120μA per amplifier
Low offset voltage: ±300μV
Low offset voltage drift: ±0.6μV/°C
Low noise: 28nV/√Hz at 10kHz
High common-mode rejection: 110dB
Low bias current: ±10μA
High slew rate: 4.5V/µs
Wide supply voltage: ±1.35V to ±8V, 2.7V to 16V
Robust EMIRR performance: 77dB at 1.8GHz
