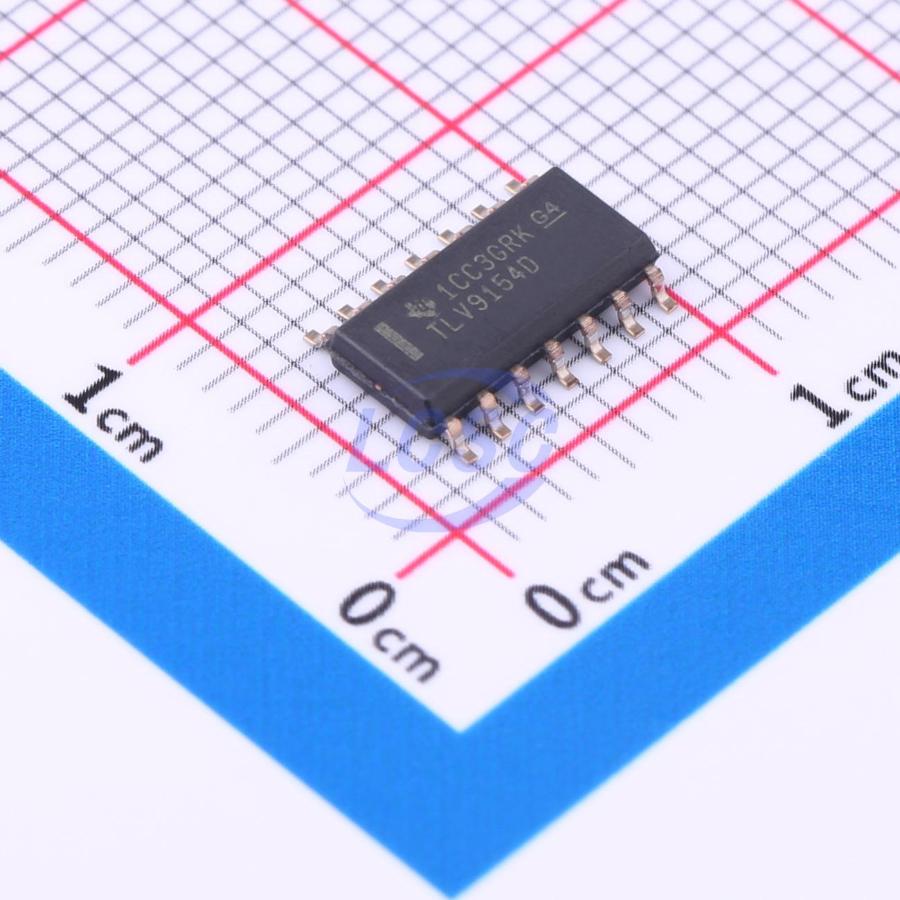

TLV9154IDR

The TLV915x product family is a 16V general-purpose operational amplifier product family. These devices feature excellent DC accuracy and AC performance, including rail-to-rail output, low offset voltage (±125μV, typical), low offset drift (±0.3μV/°C, typical), and a 4.5MHz bandwidth. Convenient features such as a wide differential input voltage range, high output current (±75mA), high slew rate (20V/μs), and low noise (10.5nV/√Hz) make the TLV915x a robust and low-noise operational amplifier suitable for industrial applications. The operational amplifiers in the TLV915x product family come in standard packages and are specified for temperatures from -40°C to 125°C.

Applications

• Professional microphones and wireless systems
• Multiplexed data acquisition systems
• Test and measurement equipment
• Factory automation and control
• High-side and low-side current sensing

Key features

• Low offset voltage: ±125μV
• Low offset voltage drift: ±0.3μV/°C
• Low noise: 10.5nV/√Hz at 1kHz
• High common-mode rejection: 120dB
• Low bias current: ±10pA
• Rail-to-rail input and output
• Wide bandwidth: 4.5MHz GBW
• High slew rate: 20V/μs
• Low quiescent current: 560μA per amplifier
• Wide supply voltage: ±1.35V to ±8V, 2.7V to 16V
• Robust EMIRR performance: EMI/RFI filter on input pins
• Differential and common-mode input voltage range to supply rails
• Industry-standard packages:
• Single-channel: SOT-23-5, SOT-23-6, and SC70-5
• Dual-channel: SOIC-8, SOT-23-8, TSSOP-8, VSSOP-8, WSON-8, and X2QFN-10
• Quad-channel: SOIC-14, SOT-23-14, TSSOP-14, and X2QFN-14
