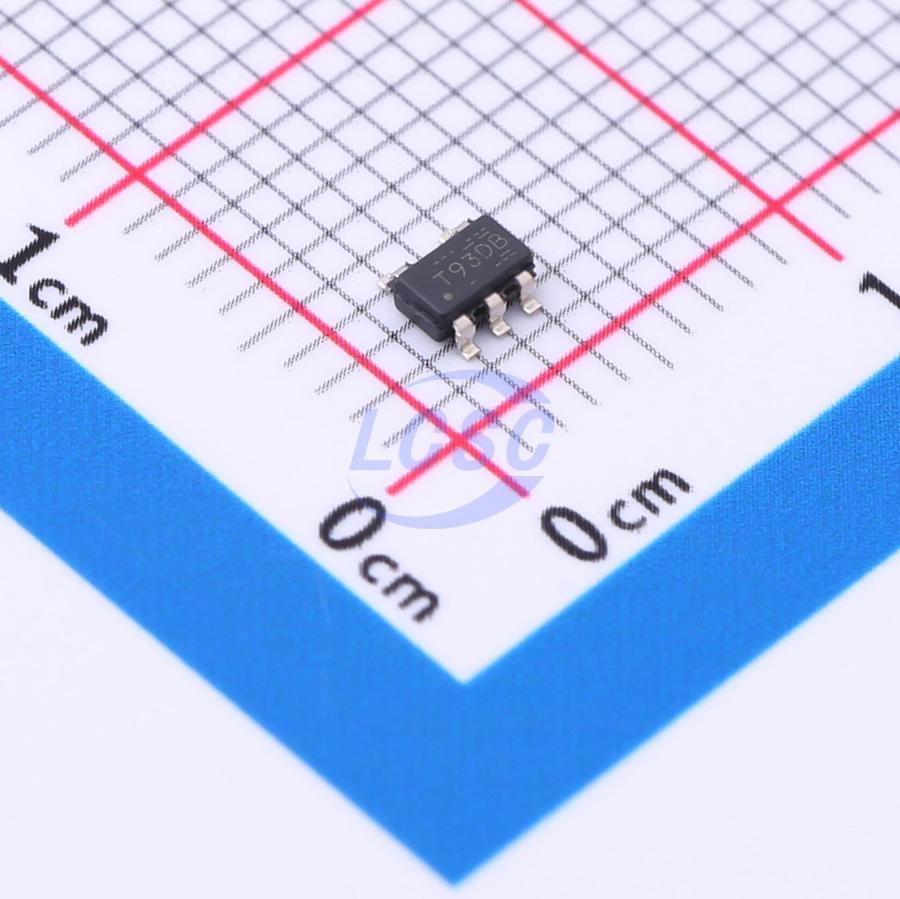

TLV9361IDBVR

60mA 1 400uV 25V/us 110dB 10pA 2.6mA 10.6MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

10 MHz, 40 V, RRO operational amplifier suitable for cost-sensitive systems

Manufacturer: TI
Manufacturer part #: TLV9361IDBVR
Store part #: C4367444
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,295 in stock

#C4367444

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹124.15	₹124.15
10+	₹99.19	₹991.90
30+	₹86.82	₹2,604.60
100+	₹74.45	₹7,445.00
500+	₹66.85	₹33,425.00
1,000+	₹63.16	₹63,160.00

Quantity (min 1)

1 × ₹124.15

₹124.15

excl. GST

₹146.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9361IDBVR

₹124.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 400uV
Slew Rate: 25V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 1.25uV/℃
Quiescent Current: 2.6mA
Gain Bandwidth Product: 10.6MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 6nV/√Hz@1kHz
Dual Supply: -20V~-2.25V;2.25V~20V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~40V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The TLV936x series (TLV9361, TLV9362, and TLV9364) is a family of 40V cost-optimized operational amplifiers. These devices feature excellent DC and AC specifications, including rail-to-rail output, low offset voltage (±400 μV typ.), low temperature drift (±1.25 μV/°C typ.), and a 10.6 MHz bandwidth. The characteristics of the TLV936x, such as EMIRR filtering, high output current (±60 mA), and high slew rate (25 V/μs), make it a reliable operational amplifier suitable for high-voltage cost-sensitive applications. The TLV936x series operational amplifiers are available in standard packages and are rated for operation over a temperature range of –40°C to 125°C.

Applications

AC and motor drive servo control modules
AC and motor drive power stage modules
Test and measurement equipment
Programmable logic controllers

Key features

Low offset voltage: ±400 μV
Low offset voltage drift: ±1.25 μV/°C
Low noise: 8.5nV/√Hz at 1kHz, 6nV/√Hz broadband
High common-mode rejection: 110dB
Low bias current: ±10pA
Rail-to-rail output
High bandwidth: 10.6MHz GBW, unity-gain stable
High slew rate: 25 V/μs
Low quiescent current: 2.6 mA per amplifier
Wide supply voltage: ±2.25V to ±20V, 4.5V to 40V
Robust EMIRR performance
