TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

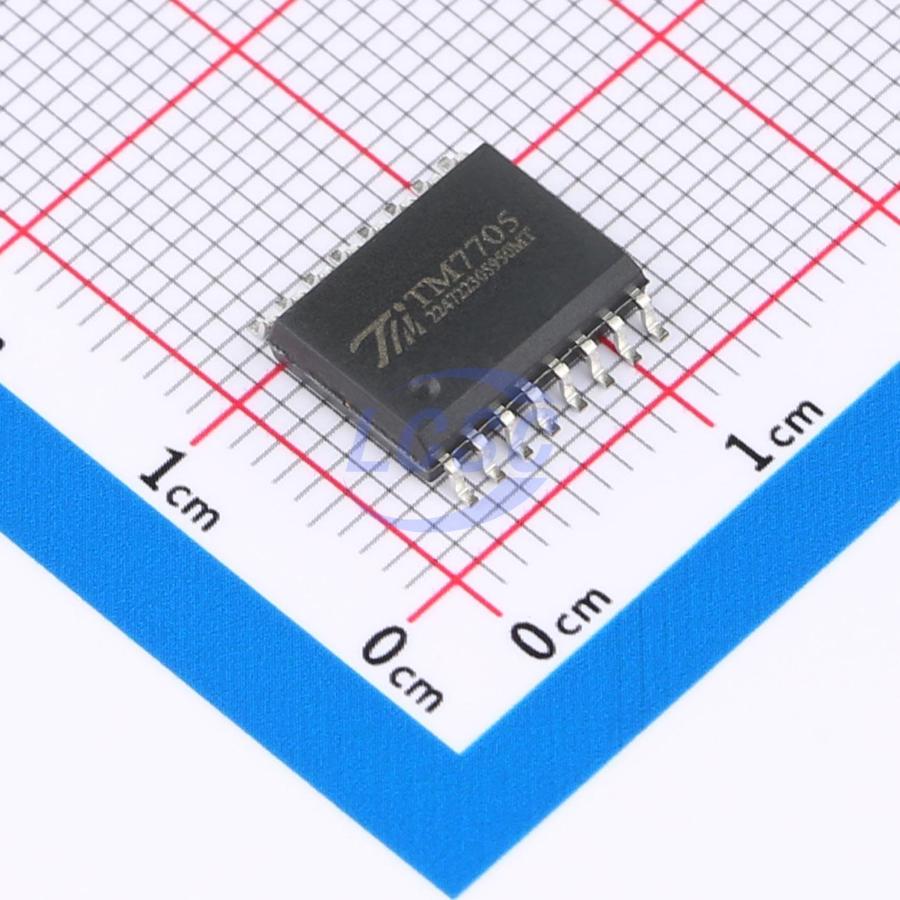

TM7705
16 Bit Analog to Digital Converter 2 Input SOIC-16-300mil
SOP-16-300milRoHSActive
16-bit Analog-to-Digital Converter
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM7705
- Store part #
- C1871365
- Package / case
- SOP-16-300mil
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C1871365
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.84 | ₹180.84 |
| 10+ | ₹142.86 | ₹1,428.60 |
| 45+ | ₹123.97 | ₹5,578.65 |
| 90+ | ₹105.07 | ₹9,456.30 |
| 495+ | ₹93.79 | ₹46,426.05 |
| 990+ | ₹87.93 | ₹87,050.70 |
1 × ₹180.84
₹180.84
excl. GST
₹213.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
TM7705
₹180.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3V~5V
- Number of Channels
- 2
- Voltage Reference
- External
- Clock/Oscillator
- Built-in;External
- Clock Frequency
- 400kHz~2.5MHz
- Features
- Input buffer;Synchronous triggering;Soft reset;Power-on reset
- Resolution(Bits)
- 16;500Hz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.71 g
Overview
The TM7705 is a 16-bit A/D converter designed for low-frequency measurement applications, capable of directly converting small signals from sensors. It features two fully differential input channels and communicates via a 3-wire SPI interface. The device includes a configurable analog front-end with programmable gain, signal polarity, and output update rate. Self-calibration and system calibration functions are provided to eliminate gain and offset errors from both the device itself and the system. Additional features include high resolution, excellent noise immunity, and low-voltage low-power operation, making it well-suited for instrumentation, industrial control, and similar applications.
Applications
- Instrumentation
- Industrial Control
Key features
- Dual-channel fully differential input ADC
- 16-bit Σ-Δ analog-to-digital conversion
- Integral non-linearity less than 0.003%
- Programmable gain: 1~128
- 3-wire serial communication
- Buffered analog inputs
- 3V or 5V supply voltage, ±5% range
- Maximum power consumption 1mW at 3V
- Power-down mode, maximum current 8μA
- 16-pin DIP, SOIC, TSSOP, SOP packages
