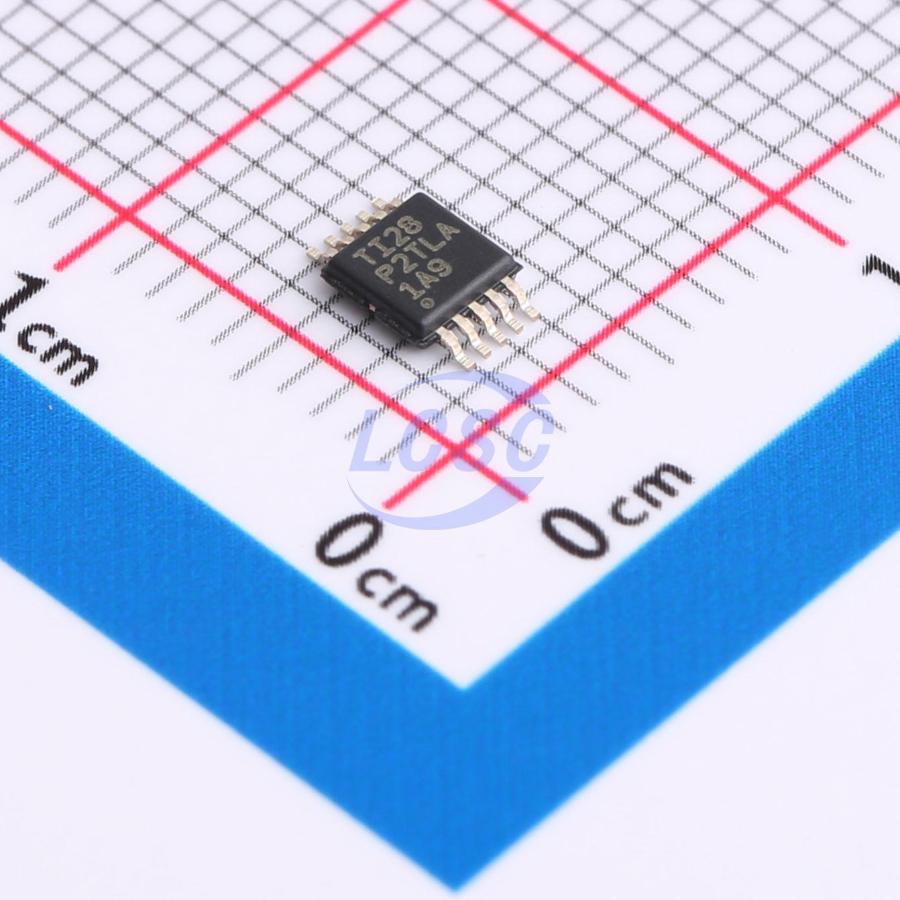

TMUX1072DGSR

TMUX1072 is a high-speed dual-channel 2:1 analog switch with integrated overvoltage detection and power-off protection. The device is bidirectional and can be used as a 2:1 or 1:2 switch, supporting signals above V_CC (up to 5.5V). The protection on the I/O pins of the TMUX1072 can withstand voltages up to 18V and features an auto-shutdown circuit to prevent damage to system components downstream of the switch. This protection is intended for power sequencing applications, where some boards in a system may power up before other boards are ready to receive signals. The device detects overvoltage and overtemperature events and provides an open-drain output signal via the FLT pin.

Applications

• Data Acquisition (DAQ)
• Field Instrumentation
• Video Surveillance
• HVAC Systems
• Rear-View Cameras

Key features

• Supply voltage range: 2.3V to 5.5V
• Shutdown protection: I/O pins in high-impedance state when V_CC = 0V
• 6V overvoltage and over-temperature detection via fault indicator pin
• 18V OVP on general-purpose pins
• Supports signals above V_CC up to 5.5V
• R_ON as low as 6Ω
• Typical bandwidth: 1.2GHz
• Typical C_ON: 4.5pF
• Low-power disable mode
• 1.8V-compatible logic input
• ESD protection exceeding JESD22 2000V HBM
• Available in compact 2.00mm×1.70mm @55 package
