TECH PUBLICDatasheet (PDF)

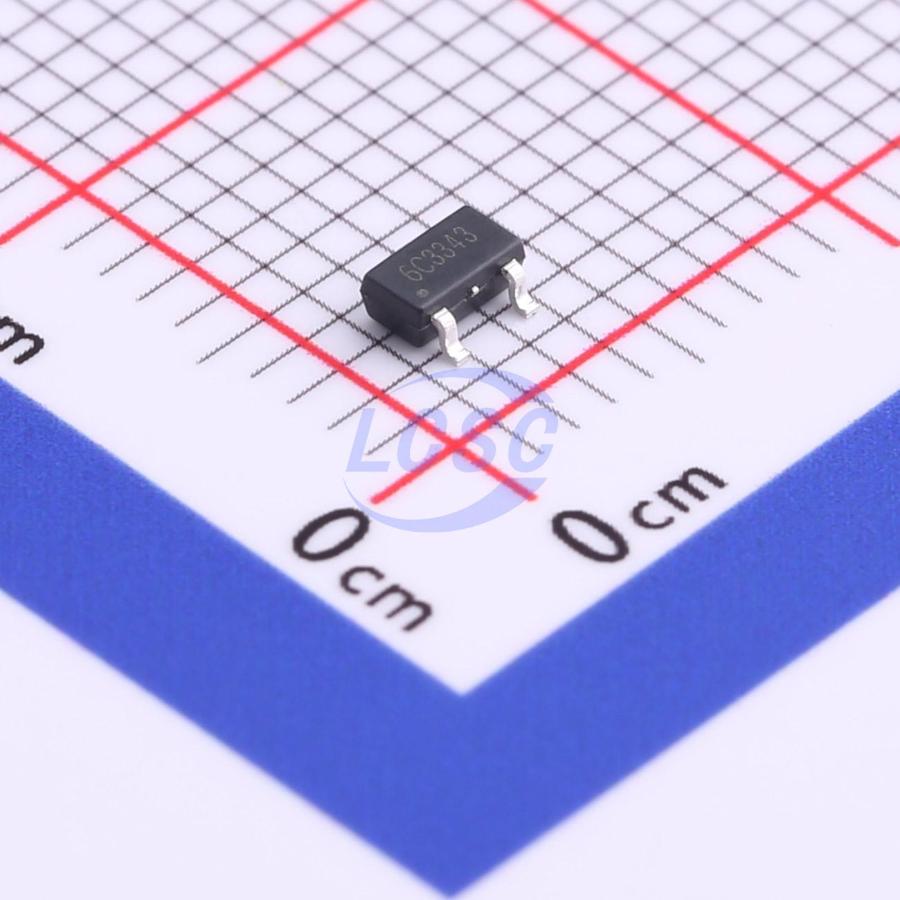

TP121C33S3L
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3L
SOT-23-3LRoHSActive
Ultra-low power consumption, low-dropout linear regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP121C33S3L
- Store part #
- C2827536
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,340 in stock
#C2827536
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.57 | ₹105.70 |
| 100+ | ₹8.48 | ₹848.00 |
| 300+ | ₹7.44 | ₹2,232.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹10.57
₹105.70
excl. GST
₹124.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP121C33S3L
₹105.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 7V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The TP121C series are high-accuracy, low-power, low-dropout 3-terminal CMOS step-down voltage regulators. They deliver 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Features an ultra-low quiescent current of 1.0μA Typ. Integrated overcurrent and short-circuit protection. Compatible with small, low-ESR ceramic capacitors. Laser-trimmed output voltage selectable from 0.9V to 5.0V in 0.1V increments.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Maximum output current: 200mA
- Input-output voltage dropout: 200mV@100mA
- Maximum input voltage: 7V
- Output voltage range: 0.9V ~ 5.0V
- Low quiescent current: 1.0μA Typ.
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P332MR(1uA)#C2827648TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,070 | ₹10.00 · 1,070 in stock | View |
 | TPRT9161-33GV#C5342422TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 4,790 | ₹14.83 · 4,790 in stock | View |
 | TP132LC33S3L#C48586713TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,950 | ₹6.07 · 1,950 in stock | View |
 | TPMCP1702T-3302E/CB#C3040634TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 494 | ₹60.67 · 494 in stock | View |
 | SE8533X#C41348102TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,310 | ₹9.96 · 1,310 in stock | View |
