3PEAK

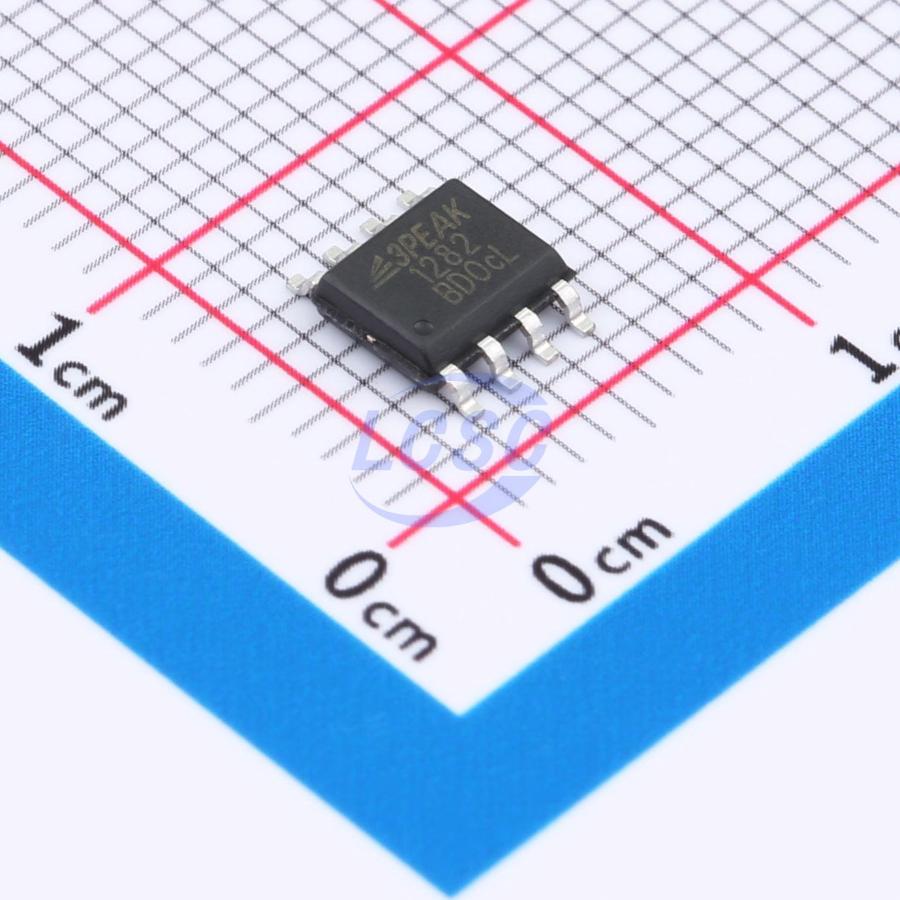

TP1282L1-SR

32mA 2 150uV 20V/us 125dB 1nA 1.6mA 7MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS3 CompliantActive

36 V, 7 MHz, 20 V/μs, Op Amps

Manufacturer: 3PEAK
Manufacturer part #: TP1282L1-SR
Store part #: C2902348
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,459 in stock

#C2902348

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹133.78	₹133.78
10+	₹105.81	₹1,058.10
30+	₹91.72	₹2,751.60
100+	₹77.85	₹7,785.00
500+	₹69.39	₹34,695.00
1,000+	₹65.05	₹65,050.00

Quantity (min 1)

1 × ₹133.78

₹133.78

excl. GST

₹157.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TP1282L1-SR

₹133.78 for 1 + GST

Specifications

Output Current: 32mA
Number of Channels: 2
Vos - Input Offset Voltage: 150uV
Slew Rate: 20V/us
Input Offset Current(Ios): 25pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 125dB
Ib - Input Bias Current: 1nA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 1.6mA
Gain Bandwidth Product: 7MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 25nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.118 g

Overview

The TP128X family amplifiers are the newest high supply voltage amplifiers with low offset, low power, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 7MHz bandwidth, 20 V/μs slew rate, and low distortion while drawing only 1600 μA of quiescent current per amplifier. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The TP128X family can be used as plug-in replacements for many commercially available opamps to reduce power and improve input/output range and performance. The TP128X has an over-temperature protection feature to guarantee chip safety. The output of TP128X will enter high impendence when the die temperature reaches around 170°C and will recover the function when the die temperature is down to around 150°C.

Applications

Instrumentation
Active Filters, ASIC Input or Output Amplifier
Sensor Interface
Motor Control Industrial Control

Key features

Supply Voltage: 4.5 V to 36 V
Offset Voltage: 150 μV Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator Input Rail to -Vs, Rail to Rail
Bandwidth: 7 MHz
Slew Rate: 20 V/μs
Excellent EMI Suppress Performance: 45 dB at 1 GHz
Over-Temperature Protection
Low Noise: 25 nV/√Hz at 1 kHz
4 kV HBM, 2 kV CDM, 400 mA Latch Up
-40°C to 125°C Operation Temperature Range
