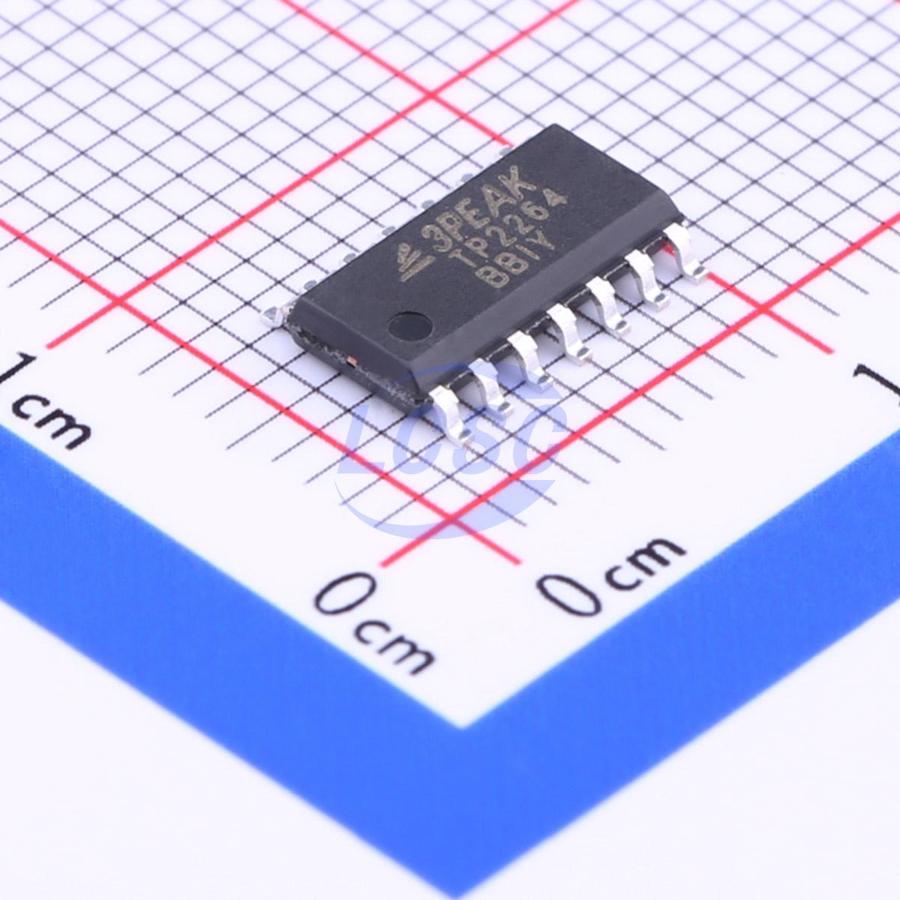

3PEAK

TP2264-SR

25mA 4 2mV 15V/us 25pA 130dB 700uA 3.5MHz Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

36V, 3.5MHz, 15V/μs Op Amps

Manufacturer: 3PEAK
Manufacturer part #: TP2264-SR
Store part #: C248562
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,695 in stock

#C248562

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹56.81	₹284.05
50+	₹43.80	₹2,190.00
150+	₹38.17	₹5,725.50
500+	₹31.22	₹15,610.00
2,500+	₹27.98	₹69,950.00
5,000+	₹26.02	₹1,30,100.00

Quantity (min 5, multiples of 5)

5 × ₹56.81

₹284.05

excl. GST

₹335.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TP2264-SR

₹284.05 for 5 + GST

Specifications

Output Current: 25mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 15V/us
Input Offset Current(Ios): 25pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 25pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 700uA
Gain Bandwidth Product: 3.5MHz
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.281 g

Overview

The TP226X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 3.5MHz bandwidth, 15V/μs slew rate and low distortion while drawing only typical 700μA of quiescent current per amplifier. The input common-mode voltage range extends to V–, and the outputs swing rail-to-rail. The TP226X family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance. The combination of features makes the TP226X ideal choices for industrial control, motor control and portable audio amplification, sound ports, and other consumer audio.

Applications

Sensor Interface
Motor Control
Industrial Control
Audio

Key features

Supply Voltage: 3V to 36V
Low Supply Current: Maximum 1000μA per channel
Differential Input Voltage Range to Supply Rail
Input Rail to –VSS, Rail to Rail Output
Fast Response: 3.5 MHz Bandwidth, 15V/μs Slew Rate, 100ns Overload Recovery
Low Offset Voltage: ±2mV Maximum at 25°C, ±2.5mV Maximum at -40°C to 85°C, ±3mV Maximum at -40°C to 125°C
Very Low THD + N: 0.0005% at Gain = 1, 1kHz
Excellent EMIRR: 60dB at 900MHz
2KV HBM, 1KV CDM, 150mA Latch Up
-40°C to 125°C Operation Temperature Range
