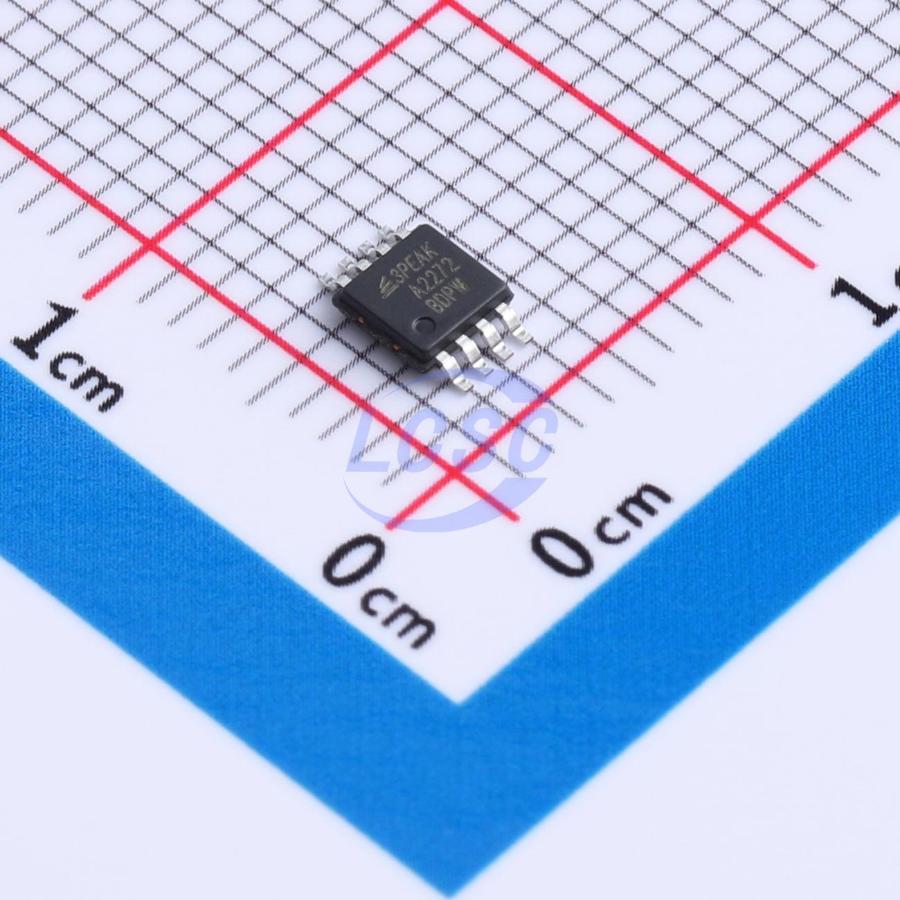

TP2272-VS1R

The TP2271/TP2272/TP2274 are EMI-hardened 36V CMOS op amps with 84 dB EMI rejection ratio at 900 MHz. These devices maintain unity-gain stability with 100 pF capacitive loads, and feature a wide 7 MHz bandwidth and high 20 V/μs slew rate, making them well suited for current-to-voltage converters. Rail-to-rail output swing and an input range that includes the negative supply voltage make them ideal for interfacing with modern single-supply precision data converters. The TP227x op amps offer lower noise, offset voltage, offset drift over temperature, and bias current. In addition, these devices provide improved CMRR and slew rate. With high input impedance and low noise, the TP227x family is ideal for small-signal conditioning of high-impedance sources such as piezoelectric sensors.

Applications

• Digital servo control loops
• Machine and motion control equipment
• Photodiode preamplifiers
• Industrial process control
• Temperature measurement

Key features

• Gain Bandwidth Product: 7 MHz
• High Slew Rate: 20 V/μs
• Wide Supply Voltage Range: 3.1 V to 36 V or ±2.25 V to ±18 V
• Low Offset Voltage: 0.5 mV (max)
• Low Input Bias Current: 30 pA (typ)
• Rail-to-Rail Output Voltage Swing
• Unity-Gain Stable
• Operating Temperature Range: -40°C to 125°C
