3PEAKDatasheet (PDF)

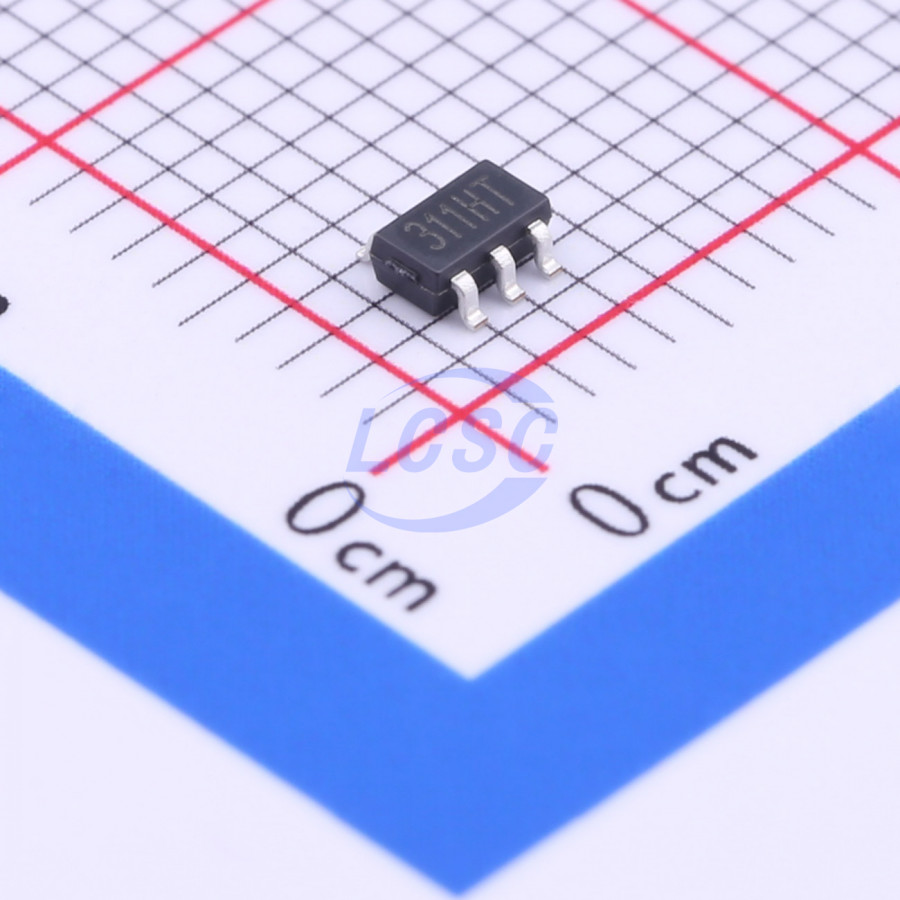

TP2311-TR
70mA 1 4uV 7V/us 0.3pA 106dB 1.4mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
10MHz Bandwidth, Low Noise Precision Op-amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2311-TR
- Store part #
- C116439
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,507 in stock
#C116439
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.07 | ₹76.07 |
| 10+ | ₹58.48 | ₹584.80 |
| 30+ | ₹50.87 | ₹1,526.10 |
| 100+ | ₹41.52 | ₹4,152.00 |
| 500+ | ₹37.39 | ₹18,695.00 |
| 1,000+ | ₹34.78 | ₹34,780.00 |
1 × ₹76.07
₹76.07
excl. GST
₹89.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2311-TR
₹76.07 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.3pA
- Common Mode Rejection Ratio(CMRR)
- 106dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 10MHz
- Features
- EMI filtering/RF suppression;ESD protection;Reverse-phase input protection;Overvoltage protection
- Input Voltage Noise Density
- 8.2nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
Gain-bandwidth Product: 10 MHz Low Noise: 8.2 nV/√Hz (f = 1kHz) Slew Rate: 7 V/μs Offset Voltage: 50 μV (max) EMIRR lN+: 88 dB (under 2.4GHz) Low THD+N: 0.0005% Supply Range: 2.2V to 5.5V Supply Current: 1.4 mA/ch Low Input Bias Current: 0.3pA Typical Rail-to-Rail I/O High Output Current: 70mA (1.0V Drop) -40°C to 125°C Operation Range Robust 6kV HBM and 2kV CDM ESD Rating
Applications
- Sensor Signal Conditioning
- Consumer Audio
- Multi-Pole Active Filters
- Control-Loop Amplifiers
- Communications
- Security
- Scanners
Key features
- Gain-bandwidth Product: 10 MHz
- Low Noise: 8.2 nV/√Hz (f = 1kHz)
- Slew Rate: 7 V/μs
- Offset Voltage: 50 μV (max)
- EMIRR lN+: 88 dB (under 2.4GHz)
- Low THD+N: 0.0005%
- Supply Range: 2.2V to 5.5V
- Supply Current: 1.4 mA/ch
- Low Input Bias Current: 0.3pA Typical
- Rail-to-Rail I/O
- High Output Current: 70mA (1.0V Drop)
- -40°C to 125°C Operation Range
- Robust 6kV HBM and 2kV CDM ESD Rating
