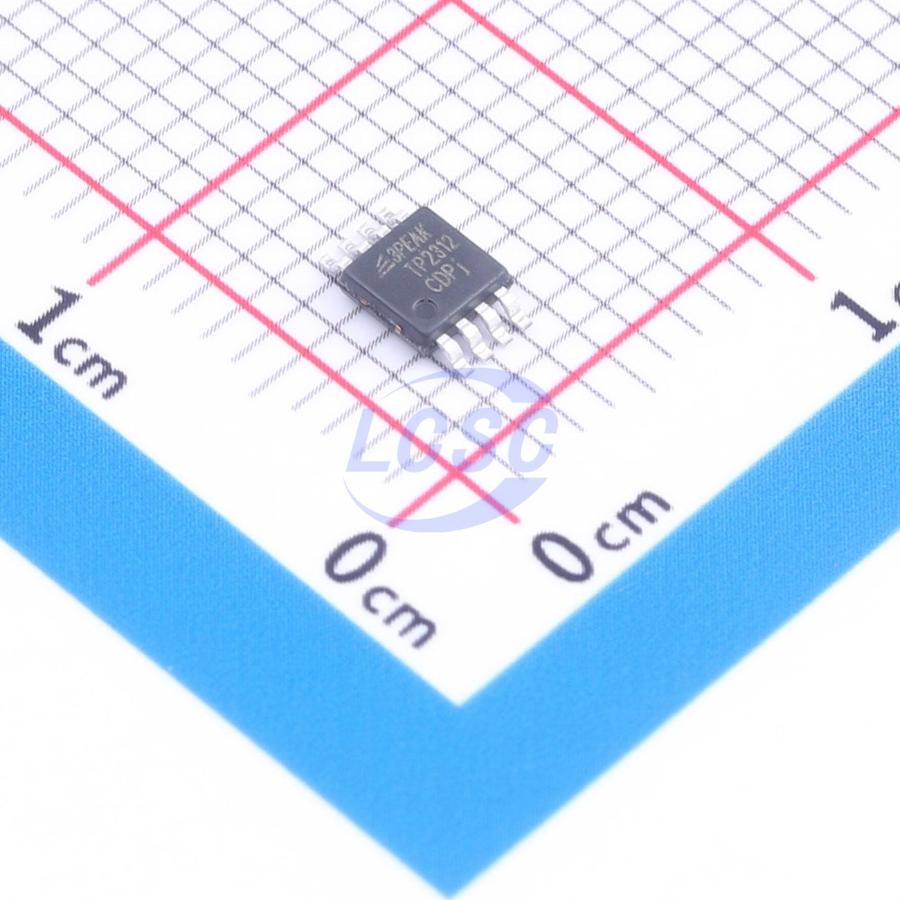

TP2312-VR

This series features ultra-high precision amplifiers with extremely low noise, low offset voltage, high bandwidth, low input bias current, and low temperature drift characteristics, making them ideal for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and high bandwidth provides users with superior value and flexibility compared to competing products in the same class. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply control, and industrial control requiring high gain. With low total harmonic distortion plus noise characteristics, the series is also well suited for consumer audio applications, particularly single-supply systems. The series is available in single, dual, and quad versions in a variety of packages.

Applications

• Sensor signal conditioning
• Consumer audio
• Multi-pole active filters
• Control loop amplifiers
• Scanners

Key features

• Gain-bandwidth product: 10 MHz
• Low noise: 8.2 nV/√Hz (f=1kHz)
• Slew rate: 7 V/μs
• Offset voltage: 50 μV (maximum)
• Input common-mode rejection ratio: 88 dB (at 2.4GHz)
• Low THD+N: 0.0005%
• Supply voltage range: 2.2 V to 5.5 V
• Supply current: 1.4 mA/channel
• Low input bias current: 0.3 pA (typical)
• Rail-to-rail input/output
• High output current: 70 mA (1.0V dropout)
• Operating temperature range: –40°C to 125°C
