3PEAKDatasheet (PDF)

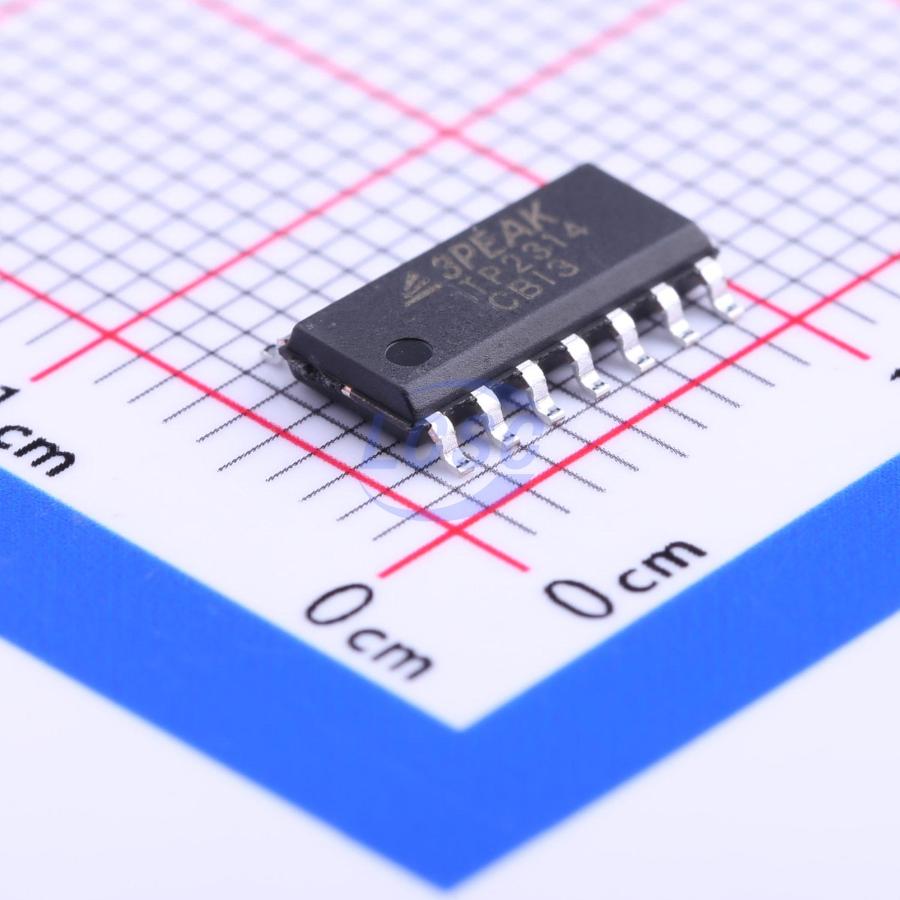

TP2314-SR
70mA Four channels 4uV 7V/us 0.3pA 106dB 1.4mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
10MHz Bandwidth,Low Noise Precision Op-amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2314-SR
- Store part #
- C182102
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,952 in stock
#C182102
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.86 | ₹162.86 |
| 10+ | ₹128.66 | ₹1,286.60 |
| 30+ | ₹111.66 | ₹3,349.80 |
| 100+ | ₹94.66 | ₹9,466.00 |
| 500+ | ₹84.55 | ₹42,275.00 |
| 1,000+ | ₹79.18 | ₹79,180.00 |
1 × ₹162.86
₹162.86
excl. GST
₹192.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TP2314-SR
₹162.86 for 1 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 4uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 0.001pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.3pA
- Common Mode Rejection Ratio(CMRR)
- 106dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 10MHz
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 8.2nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Gain-bandwidth Product: 10 MHz Low Noise: 8.2 nV/√Hz (f = 1kHz) Slew Rate: 7 V/μs Offset Voltage: 50 μV (max) | EMIRR {N+} : 88 dB( under 2.4GHz) | Low THD+N : 0.0005% Supply Range: 2.2 V to 5.5 V Supply Current: 1.4 mA/ch | Low Input Bias Current: 0.3pA Typical | Rail-to-Rail I/O | High Output Current: 70 mA (1.0V Drop) -40°C to 125°C Operation Range Robust 6kV HBM and 2kV CDM ESD Rating
Applications
- Sensor Signal Conditioning
- Consumer Audio
- Multi-Pole Active Filters
- Control-Loop Amplifiers
- Communications
- Security
- Scanners
Key features
- Gain-bandwidth Product: 10 MHz
- Low Noise: 8.2 nV/√Hz (f = 1kHz)
- Slew Rate: 7 V/μs
- Offset Voltage: 50 μV (max)
- | EMIRR {N+} : 88 dB( under 2.4GHz)
- | Low THD+N : 0.0005%
- Supply Range: 2.2 V to 5.5 V
- Supply Current: 1.4 mA/ch
- | Low Input Bias Current: 0.3pA Typical
- | Rail-to-Rail I/O
- | High Output Current: 70 mA (1.0V Drop)
- -40°C to 125°C Operation Range
- Robust 6kV HBM and 2kV CDM ESD Rating
