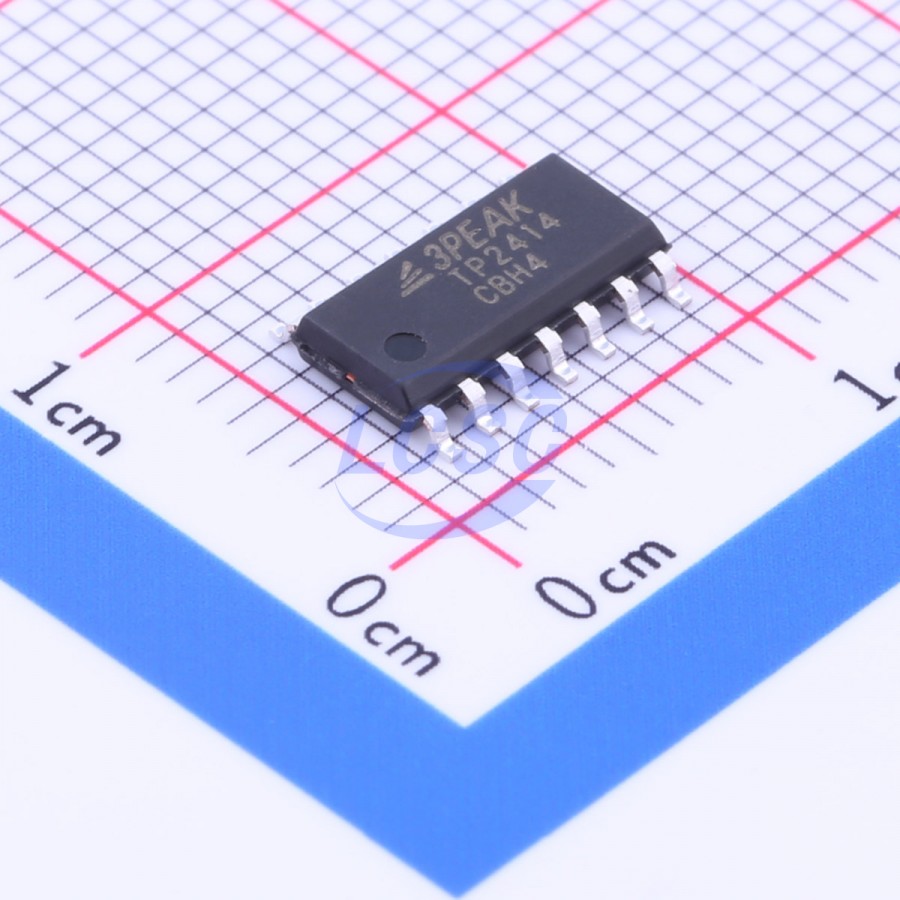

TP2414-SR

Low cost, single, dual, and quad rail-to-rail output, single-supply amplifiers featuring low offset and input voltages, low current noise, and wide signal bandwidth. The combination of low offset, low noise, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from this combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion of these devices. Applications for these amplifiers include power amplifier (PA) controls, laser diode control loops, portable and loop-powered instrumentation, audio amplification for portable devices, and ASIC input and output amplifiers.

Applications

• Sensor Signal Conditioning
• Consumer Audio
• Multi-Pole Active Filters
• Control-Loop Amplifiers
• Communications
• Security
• Scanners

Key features

• Gain-bandwidth Product: 10 MHz
• Low Noise: 8.2 nV/√Hz (f = 1kHz)
• Slew Rate: 7 V/μs
• Offset Voltage: 1 mV (max)
• EMIRR {N+}: 88 dB (under 2.4GHz)
• Low THD+N: 0.0005%
• Supply Range: 2.2 V to 5.5 V
• Supply Current: 1.4 mA/ch
• Low Input Bias Current: 0.3pA Typical
• Rail-to-Rail I/O
• High Output Current: 70mA (1.0V Drop)
• -40°C to 125°C Operation Range
