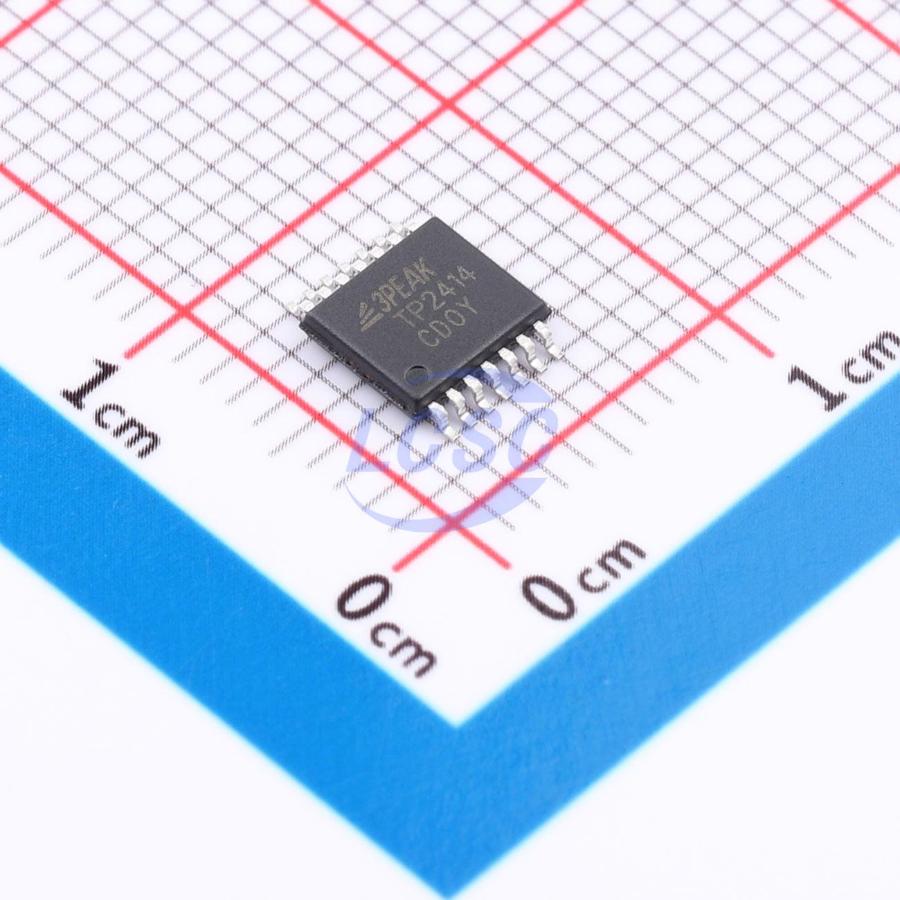

TP2414-TR

70mA 4 1mV 7V/us 0.3pA 106dB 10MHz 1.4mA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Low Cost, Low Noise CMOS RRIO Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TP2414-TR
Store part #: C126709
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,824 in stock

#C126709

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹108.01	₹108.01
10+	₹83.04	₹830.40
30+	₹72.51	₹2,175.30
100+	₹59.16	₹5,916.00
500+	₹53.14	₹26,570.00
1,000+	₹49.49	₹49,490.00

Quantity (min 1)

1 × ₹108.01

₹108.01

excl. GST

₹127.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP2414-TR

₹108.01 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 4
Vos - Input Offset Voltage: 1mV
Slew Rate: 7V/us
Input Offset Current(Ios): 0.1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.3pA
Common Mode Rejection Ratio(CMRR): 106dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 1.4mA
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 8.2nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.317 g

Overview

Low-noise CMOS RRIO op-amp with low offset and input voltage, low current noise, and wide signal bandwidth. The combination of low offset, low noise, ultra-low input bias current, and high speed makes it suitable for a wide range of applications. Filters, integrators, photodiode amplifiers, and high-impedance sensors all benefit from this combination of performance characteristics. Audio and other AC applications benefit from the wide bandwidth and low distortion of these devices.

Applications

Sensor Signal Conditioning
Consumer Audio
Multi-Pole Active Filters
Control-Loop Amplifiers
Communications
Security Scanners
Power amplifier (PA) controls
Laser diode control loops
Portable and loop-powered instrumentation
Audio amplification for portable devices
ASIC input and output amplifiers

Key features

Gain-bandwidth Product: 10 MHz
Low Noise: 8.2 nV/√Hz(f = 1kHz)
Slew Rate: 7 V/μs
Offset Voltage: 1 mV (max)
EMIRR IN+: 88 dB( under 2.4GHz)
Low THD+N: 0.0005%
Supply Range: 2.2 V to 5.5 V
Supply Current: 1.4 mA/ch
Low Input Bias Current: 0.3pA Typical
Rail-to-Rail I/O
High Output Current: 70mA (1.0V Drop)
-40°C to 125°C Operation Range
Robust 7kV – HBM and 2kV – CDM ESD Rating

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPH2504-TR#C1267083PEAK · TSSOP-14	3PEAK	TSSOP-14	5,620	₹129.73 · 5,620 in stock	View
	TPA2674-TS2R#C385203523PEAK · TSSOP-14	3PEAK	TSSOP-14	810	₹41.09 · 810 in stock	View
