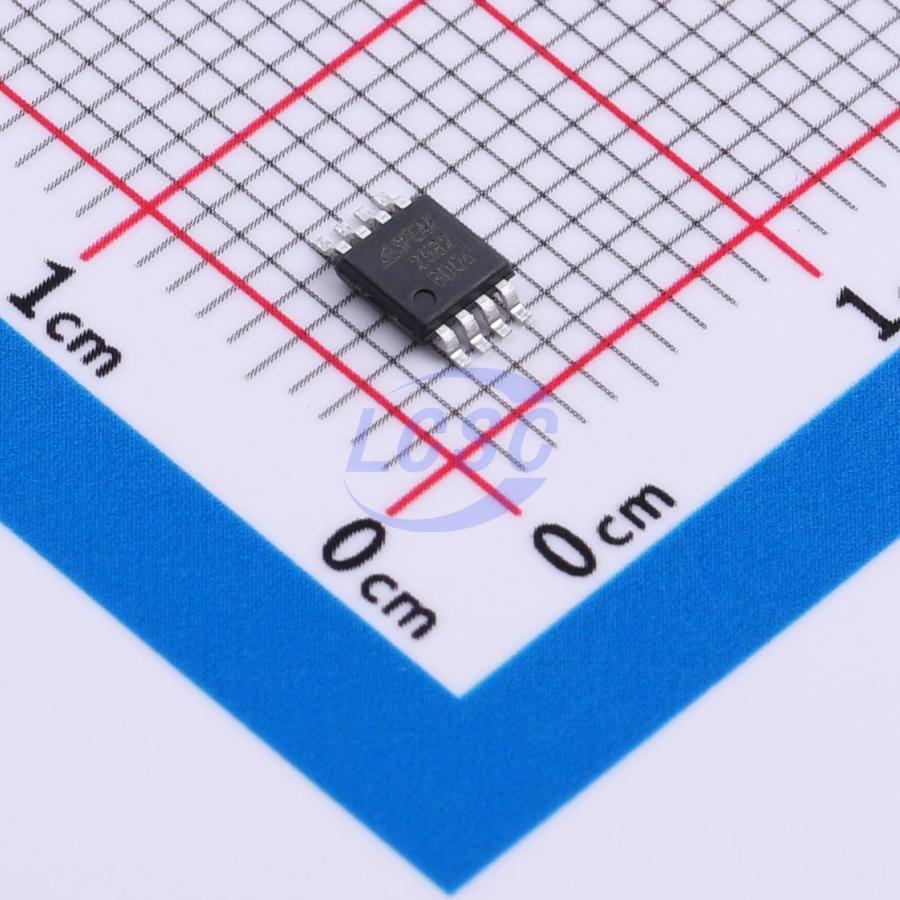

3PEAK

TP2582-VR

32mA 100uV 8V/us 25pA 130dB 10MHz 2.5mA Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: 3PEAK
Manufacturer part #: TP2582-VR
Store part #: C2902354
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,955 in stock

#C2902354

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹36.48	₹182.40
50+	₹28.05	₹1,402.50
150+	₹24.44	₹3,666.00
500+	₹19.94	₹9,970.00
3,000+	₹17.93	₹53,790.00
6,000+	₹16.72	₹1,00,320.00

Quantity (min 5, multiples of 5)

5 × ₹36.48

₹182.40

excl. GST

₹215.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP2582-VR

₹182.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 32mA
Vos - Input Offset Voltage: 100uV
Slew Rate: 8V/us
Input Offset Current(Ios): 25pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 25pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 2.5mA
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -18V~-1.5V;1.5V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The TP258X series amplifiers are the latest high supply voltage amplifiers featuring low offset, low power consumption, and stable high-frequency response characteristics. This series achieves excellent AC performance, including 10MHz bandwidth, 8V/μs slew rate, and 100ns overload recovery time, while consuming only 3mA quiescent current per amplifier; exceptional THD+N performance is achieved within the audio signal range.

Applications

Audio
Sensor Interface
Motor Control

Key features

Supply voltage range: 3V to 36V, or ±1.5V to ±18V
Differential input voltage range extended to supply rails
Input rail-to-negative supply rail, output rail-to-rail
Fast response: 10MHz bandwidth, 8 V/μs slew rate, 100ns overload recovery
Low offset voltage: ±3mV max at 25℃, ±3.5mV max over -40℃ to 85℃, ±4mV max over -40℃ to 125℃
Ultra-low THD+N: 0.0007% at gain = 1, 20kHz
Excellent EMIRR: 58dB at 900MHz
2KV HBM, 1KV CDM, 150mA latch-up
Operating temperature range: -40℃ to 125℃
