3PEAKDatasheet (PDF)

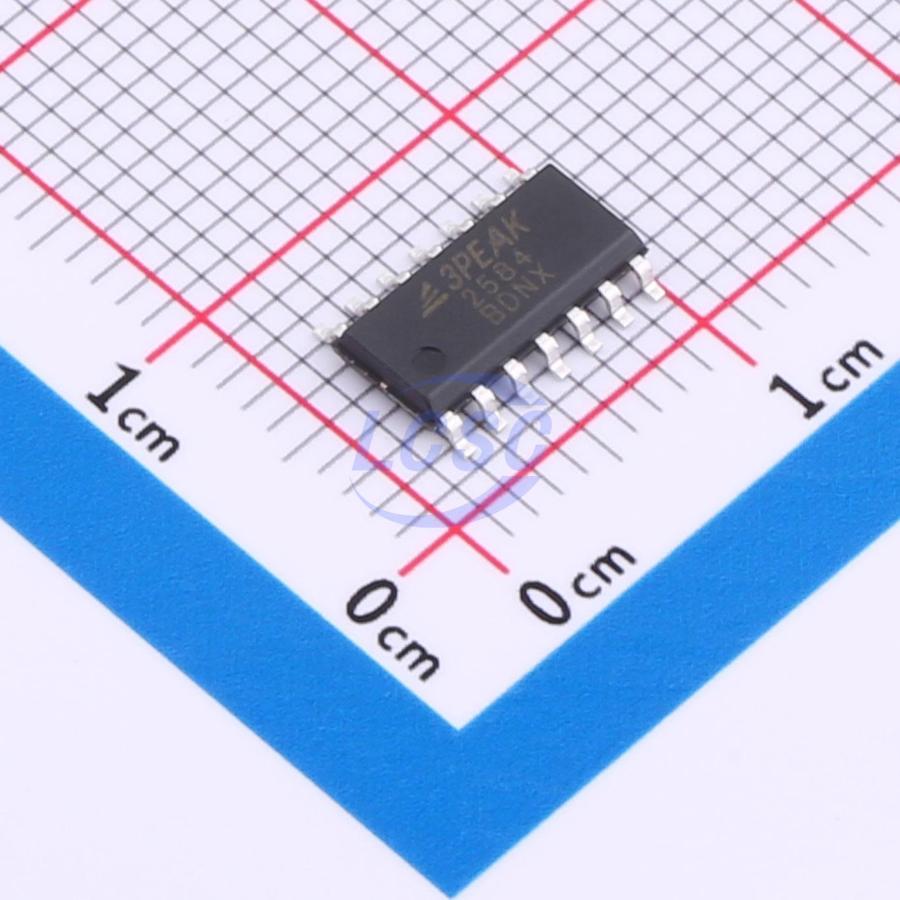

TP2584-SR
32mA 1 4mV 8V/us 1nA 130dB 3mA 10MHz Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
36V, 10MHz, 8V/μs Op Amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2584-SR
- Store part #
- C2761103
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,825 in stock
#C2761103
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.05 | ₹195.25 |
| 50+ | ₹30.03 | ₹1,501.50 |
| 150+ | ₹26.17 | ₹3,925.50 |
| 500+ | ₹21.34 | ₹10,670.00 |
| 2,500+ | ₹19.19 | ₹47,975.00 |
| 5,000+ | ₹17.91 | ₹89,550.00 |
5 × ₹39.05
₹195.25
excl. GST
₹230.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TP2584-SR
₹195.25 for 5 + GST
Specifications
- Output Current
- 32mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1nA
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 3mA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.332 g
Overview
The TP258X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 10MHz bandwidth, 8V/μs slew rate, and 100ns overload recovery time while drawing only 3mA of quiescent current per amplifier; the TP258X family achieve the best THD+N performance in audio signal range, it’s the ideal choices for motor control and audio amplification.
Applications
- Audio
- Sensor Interface
- Motor Control
Key features
- Supply Voltage: 3V to 36V
- Differential Input Voltage Range to Supply Rail
- Input Rail to -Vs, Rail to Rail Output
- Fast Response: 10 MHz Bandwidth, 8V/μs Slew Rate, 100ns Overload Recovery
- Low Offset Voltage: ±3mV Maximum at 25°C, ±3.5mV Maximum at -40°C to 85°C, ±4mV Maximum at -40°C to 125°C
- Very Low THD + N: 0.0007% at Gain = 1, 20kHz
- Excellent EMIRR: 58dB at 900MHz
- 2KV HBM, 1KV CDM, 150mA Latch Up
- -40°C to 125°C Operation Temperature Range
