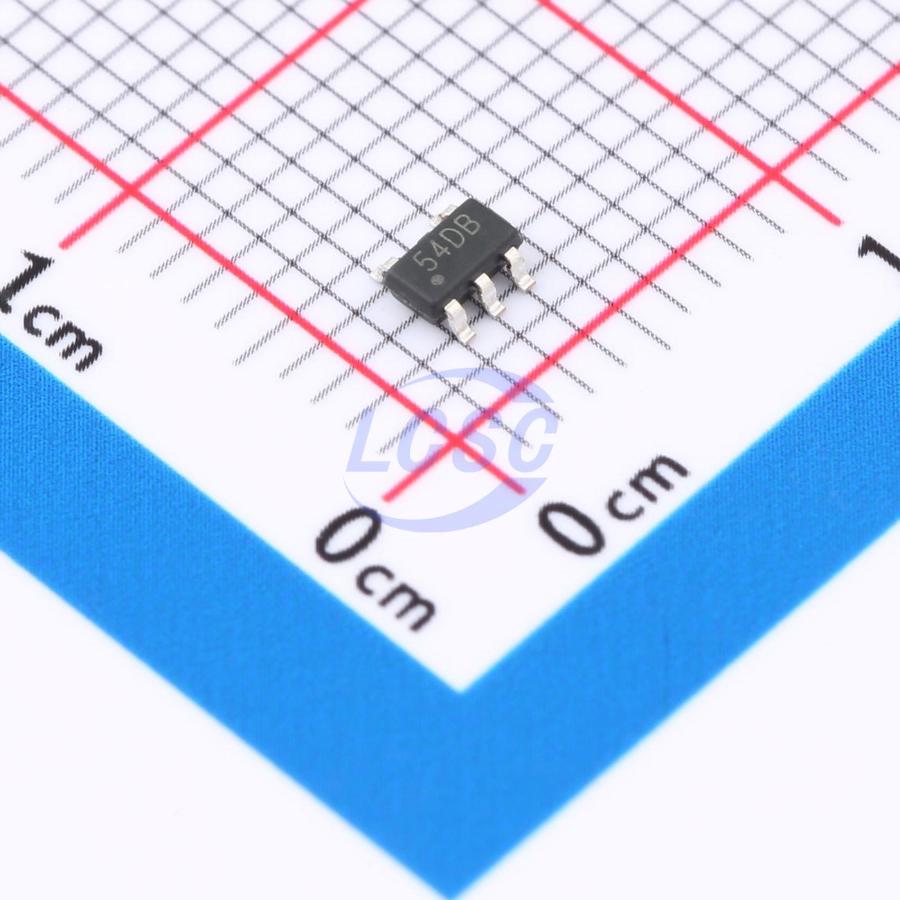

TP4054
Linear Charging IC Lithium-ion/Polymer SOT-23-5
600mA lithium battery charger
- Manufacturer
- TPOWER
- Manufacturer part #
- TP4054
- Store part #
- C382138
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,210 in stock
#C382138
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.91 | ₹79.10 |
| 100+ | ₹6.13 | ₹613.00 |
| 300+ | ₹5.24 | ₹1,572.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.67 | ₹28,020.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹7.91
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4054
₹79.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
TP4054 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuit makes it ideal for portable device applications, compatible with USB power supplies and adapter power sources. An internal reverse-charge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charging current to limit die temperature under high-power operation or high ambient temperature conditions. The TP4054 has a charge termination voltage of 4.2V, and the charging current can be set via an external resistor. When the charging current drops to 1/10 of the programmed value, the TP4054 automatically terminates the charging process. When the input voltage is removed, the TP4054 automatically enters a low-current standby state, reducing standby current to 3μA.
Applications
- Mobile phones, PDAs, MP3/MP4 players
- Bluetooth headsets, GPS devices
- Charging docks
- Digital cameras, mini speakers, and other portable devices
Key features
- Maximum charge current: 600mA
- LED flashes to indicate poor battery contact
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate
- Smart recharge function
- Precharge voltage: 4.2V±1%
- C/10 charge termination
- 2.9V trickle charge threshold
- Package: SOT23-5
