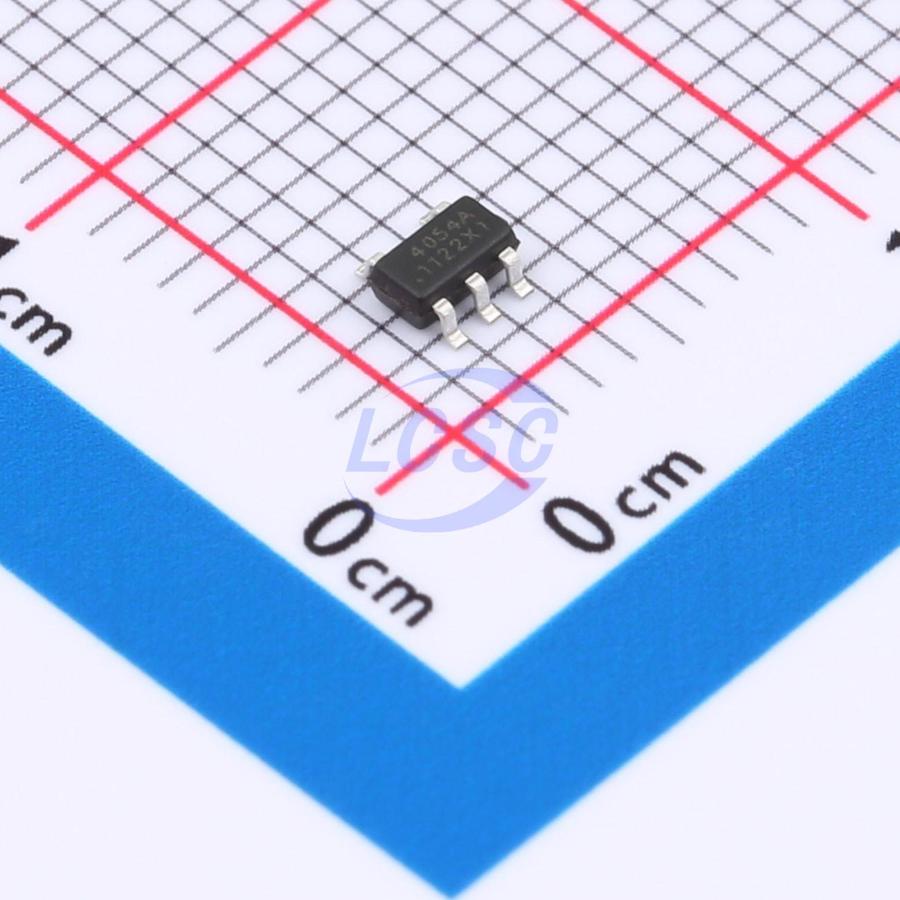

YONGYUTAI

TP4054A

Battery Charging IC Lithium Battery SOT-23-5L

SOT-23-5LRoHSActive

Linear Lithium-ion Battery Charging IC

Manufacturer: YONGYUTAI
Manufacturer part #: TP4054A
Store part #: C33551022
Package / case: SOT-23-5L
Category: Battery Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,520 in stock

#C33551022

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹3.90	₹78.00
200+	₹3.08	₹616.00
600+	₹2.62	₹1,572.00
3,000+	₹2.35	₹7,050.00
9,000+	₹2.12	₹19,080.00
21,000+	₹1.98	₹41,580.00

Quantity (min 20, multiples of 20)

20 × ₹3.90

₹78.00

excl. GST

₹92.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP4054A

₹78.00 for 20 + GST

Specifications

Operating Temperature: -40℃~+85℃
Quiescent Current: 75uA
0V Battery Charge: Support
Type of Battery: Lithium Battery
Operating Voltage: -300mV~9V
Features: Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Reverse current blocking;Under-voltage lockout
The Chip Type: Charging IC
Charge Current - Max: 500mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.04 g

Overview

TP4054A is a single-cell lithium-ion battery charger using a constant-current/constant-voltage algorithm. The TP4054A can operate via a USB port or AC adapter, delivering a maximum charge current of 500mA.
