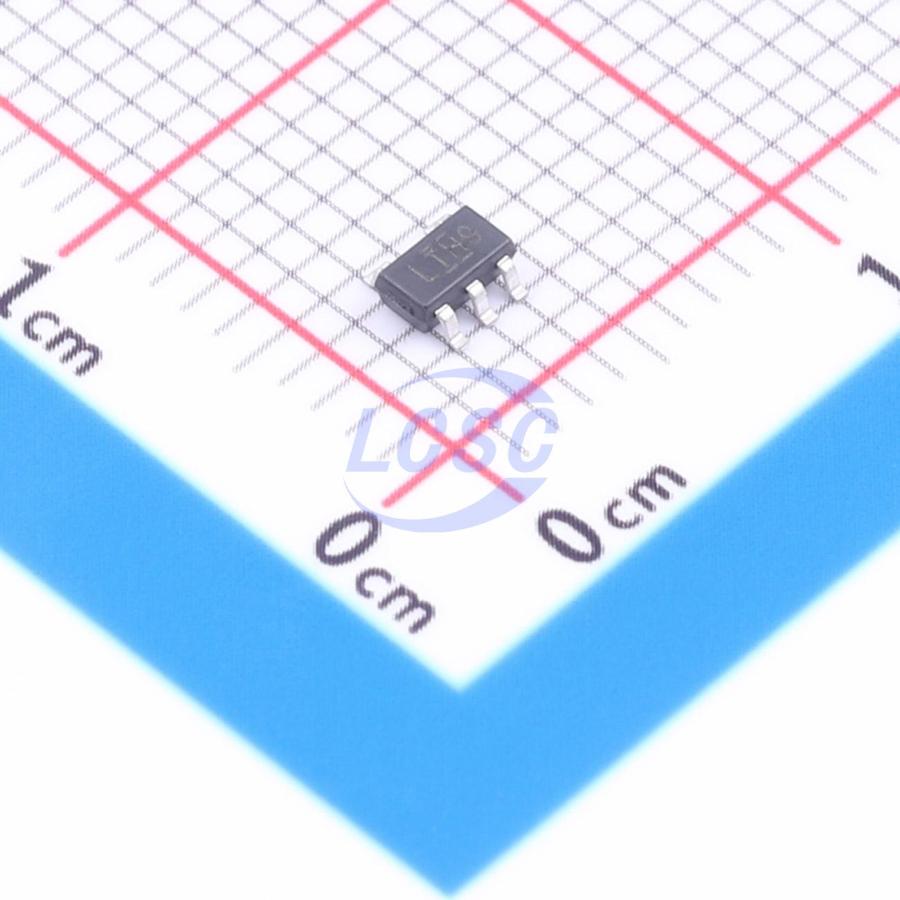

TP4054M5/TR
Lithium Battery 600mA SOT-23-5 Battery Management
- Manufacturer
- HGSEMI
- Manufacturer part #
- TP4054M5/TR
- Store part #
- C30170084
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C30170084
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.79 | ₹55.80 |
| 200+ | ₹2.74 | ₹548.00 |
| 600+ | ₹2.69 | ₹1,614.00 |
| 2,000+ | ₹2.65 | ₹5,300.00 |
20 × ₹2.79
₹55.80
excl. GST
₹65.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4054M5/TR
₹55.80 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.079 g
Overview
A single-cell lithium-ion battery constant-current/constant-voltage linear charger. The simple external application circuit is ideal for portable device applications, compatible with USB power and adapter power operation. Integrated reverse-charging protection eliminates the need for external isolation diodes. Thermal feedback automatically adjusts the charging current to limit die temperature under high-power operation or high ambient temperature conditions. The charge termination voltage is 4.2V, and the charging current can be set via an external resistor. Charging terminates automatically when the charging current drops to 1/10 of the set value. When the input voltage is removed, the device automatically enters a low-current standby state, reducing standby current to 3uA.
Applications
- Mobile phones, PDAs, MP3/MP4 charging docks
- Bluetooth headsets, GPS devices
- Digital cameras, mini speakers, and other portable devices
Key features
- Maximum charge current: 600mA
- LED flashes to indicate poor battery contact
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximized charge rate
- Intelligent recharge function
- Precharge voltage: 4.2V±1%
- C/10 charge termination
- 2.9V trickle charge threshold
- Package: SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG4054M5/TR#C2835202HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,960 | ₹12.50 · 2,960 in stock | View |
