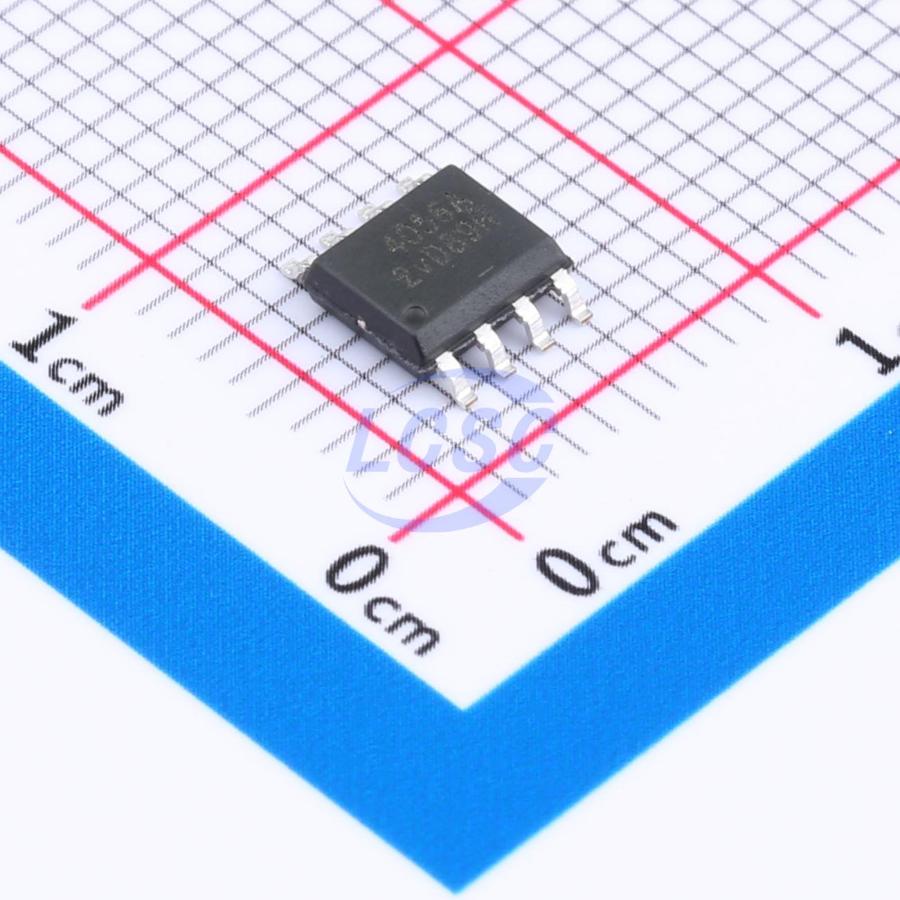

TP4056

The TP4056 is a high-performance, single-cell lithium-ion battery CC/CV linear charger. The ESOP8 package with minimal external components makes it ideal for portable applications, suitable for powering from USB and adapter sources. Based on a proprietary internal MOSFET architecture with reverse charge protection circuitry, no external sense resistors or isolation diodes are required. When the ambient temperature is too high or in high-power applications, thermal feedback adjusts the charge current to reduce die temperature. The charge voltage is fixed at 4.2V, while the charge current can be externally set via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the device terminates the charge cycle. When the input voltage is disconnected, the device enters sleep mode, reducing battery leakage current to below 1uA. It can also be placed in shutdown mode, where the quiescent current drops to 35uA. Additional features include battery temperature monitoring, UVLO, automatic recharge, and two status pins indicating charge and charge termination.

Applications

• Mobile phones, PDAs
• MP3, MP4 players
• Chargers
• Digital cameras
• Electronic dictionaries
• Bluetooth, GPS navigation devices
• Portable devices

Key features

• Programmable charge current up to 1000mA
• No external MOSFET, sense resistor, or isolation diode required
• Complete linear charger for single-cell Li-Ion batteries in ESOP8 package
• Constant current/constant voltage operation with thermal regulation for maximizing charge rate without risk of overheating
• 4.2V preset charge voltage with ±1% accuracy
• Charge current monitor output for battery fuel gauging
• Automatic recharge
• Dual charge status outputs with battery absent and fault status indication
• C/10 charge termination
• 35uA quiescent current in standby mode
• 2.9V trickle charge
• Battery temperature monitoring
• Soft-start to limit inrush current
• Reverse polarity protection on BAT input
• OV activatable
