TP4057

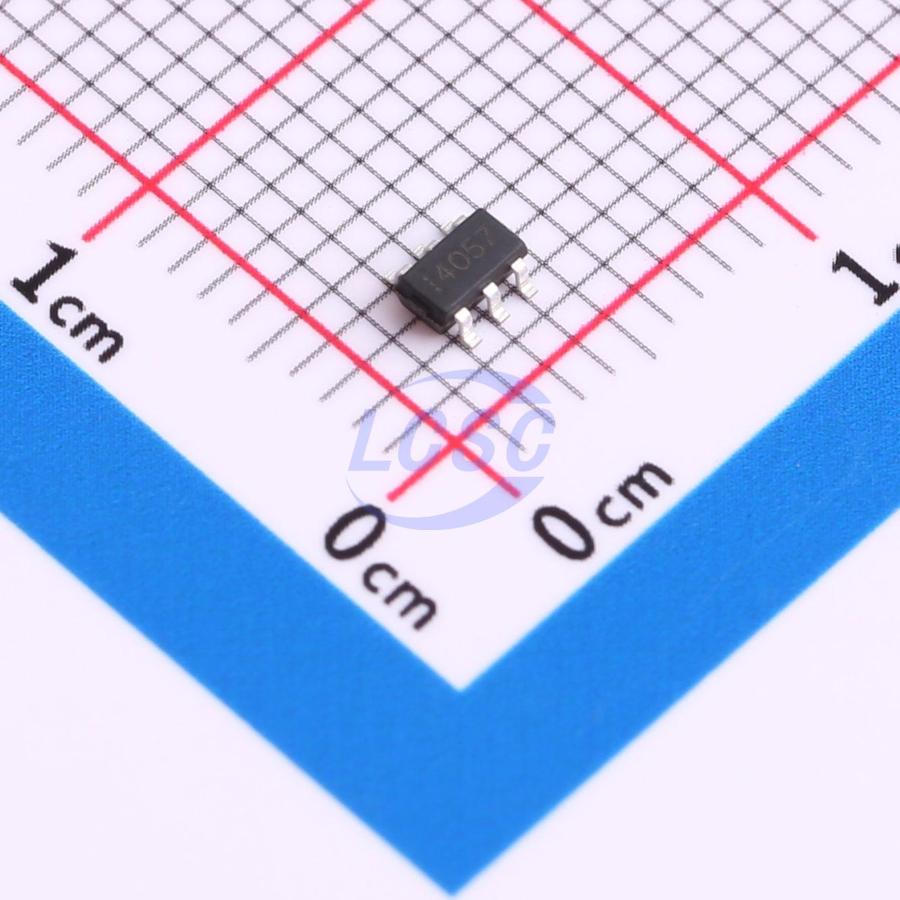

Battery Charging IC Lithium-ion/Polymer SOT-23-6L
Linear lithium-ion battery charger
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- TP4057
- Store part #
- C18198383
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C18198383
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.79 | ₹479.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.11 | ₹18,660.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057
₹57.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
TP4057 is a complete single-cell lithium-ion battery charge management IC utilizing a constant-current/constant-voltage architecture. Its SOT package and minimal external component count make it an ideal solution for portable applications, compatible with both USB power supplies and adapter power sources. The internal PMOSFET architecture, combined with reverse-charge protection circuitry, eliminates the need for external sense resistors and isolation diodes. Thermal feedback regulates the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current is externally programmable via a single resistor. When the charge current drops to 1/10 of its programmed value after the final float voltage is reached, TP4057 automatically terminates the charge cycle. When the input voltage (AC adapter or USB power) is removed, TP4057 automatically enters a low-current state, reducing battery leakage current to below 2uA. TP4057 can also be placed into a shutdown mode, reducing supply current to 25uA. Additional features of TP4057 include a charge current monitor, undervoltage lockout, automatic recharge, and a status pin for indicating charge completion and input voltage presence. The IC integrates a dual-LED charge status indicator, configurable to illuminate a red LED during charging and a green LED upon charge completion.
Applications
- Mobile phones, PDAs, power banks
- MP3, MP4 players
- Bluetooth devices, GPS navigators
- Portable device chargers
Key features
- Programmable charge current up to 500mA
- No external MOSFET, sense resistor, or blocking diode required
- Constant current/constant voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- 4.2V preset voltage with ±1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs, battery absence and fault condition indication
- C/10 charge termination
- 25uA quiescent current in standby mode
- 2.9V trickle charging with reverse battery protection
- Soft-start to limit inrush current
- SOT23-6L package
- 0°C ~ +85°C temperature range
