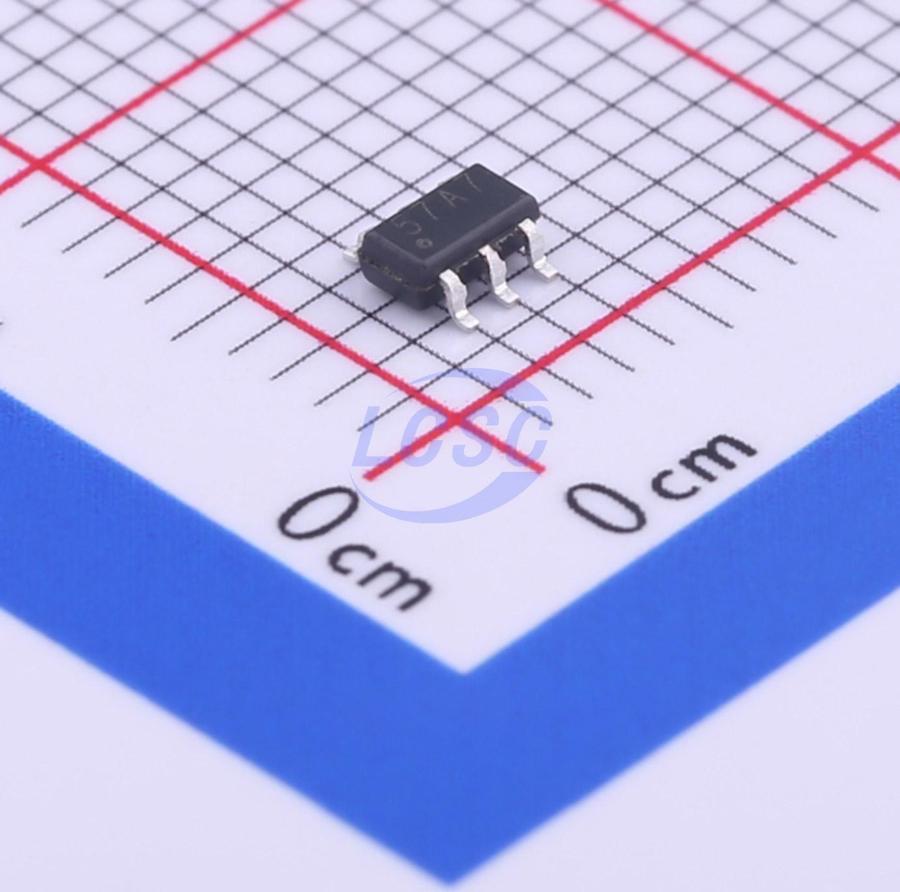

TP4057
Linear Charging IC Lithium-ion/Polymer SOT-23-6
600mA lithium battery charger
- Manufacturer
- TPOWER
- Manufacturer part #
- TP4057
- Store part #
- C440390
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,430 in stock
#C440390
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.72 | ₹107.20 |
| 100+ | ₹8.63 | ₹863.00 |
| 300+ | ₹7.58 | ₹2,274.00 |
| 3,000+ | ₹6.80 | ₹20,400.00 |
| 6,000+ | ₹6.18 | ₹37,080.00 |
| 9,000+ | ₹5.86 | ₹52,740.00 |
10 × ₹10.72
₹107.20
excl. GST
₹126.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057
₹107.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
TP4057 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuit makes it ideal for portable device applications, suitable for operation with USB power supplies and adapter power supplies. An internal reverse-charge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charging current to limit the die temperature during high-power operation or high ambient temperature conditions. The TP4057 has a charge termination voltage of 4.2V, and the charging current can be set via an external resistor. When the charging current drops to 1/10 of the programmed value, the TP4057 automatically terminates the charging process. When the input voltage is removed, the TP4057 automatically enters a low-current standby state, reducing the standby current to 3μA.
Applications
- Mobile phones, PDAs, MP3/MP4 players
- Bluetooth headsets, GPS devices
- Charging docks
- Digital cameras, mini speakers, and other portable devices
Key features
- Maximum charge current: 600mA
- No MOSFET, sense resistor, or isolation diode required
- Thermal regulation for maximum charge rate
- Automatic recharge
- Precharge voltage: 4.2V
- C/10 charge termination
- 2.9V trickle charge threshold
- Separate charge and end-of-charge indicator control signals
- Package: SOT23-6L
