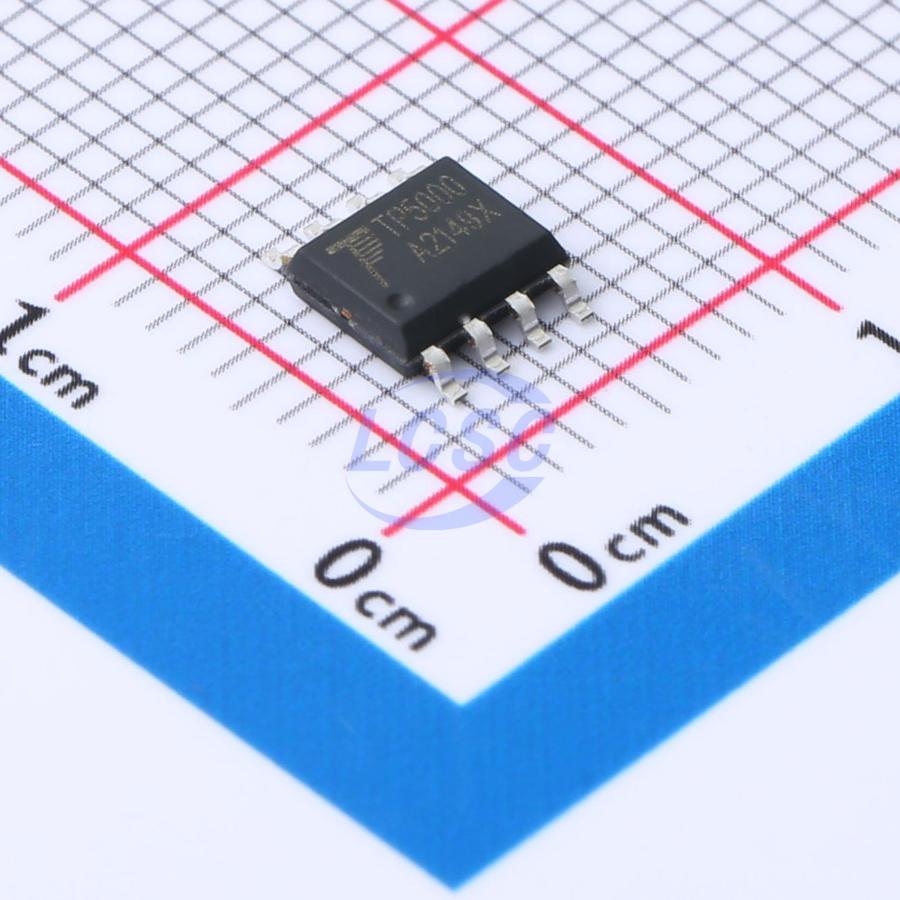

TP5000X-4.35-ESOP8

TP5000X is a switching buck single manganese lithium battery charge management chip. Its ESOP8 package with simple peripheral circuit, making the TP5000X is ideal for portable equipment large current charging management applications. Meanwhile, TP5000X built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection, shutdown OVP function due to excessive input power. TP5000X has a wide input voltage, divided into three stages Trickle pre-charge, constant current, constant voltage trickle charge the battery pre-charge current, constant current charging current adjusted through an external resistor, the maximum charging current of 2A. TP5000X switching frequency of 800kHz operating mode so that it can use smaller external components and smaller heat remains in the high current charging. TP5000X Built-power the PMOSFET, anti-intrusion circuit, so there is no need anti-intrusion perimeter protection Schottky diodes.

Applications

• Portable devices, various chargers
• PDAs, mobile cellular phone
• Tablet PC, Miner's lamp
• Power tools

Key features

• Less than 1% of the charging voltage control precision
• Paragraph Trickle, constant current, constant voltage charging to protect the battery
• ESOP8 package
• Built-in power MOSFET, switching mode, The devices less heat, simple peripheral
• Power adaptive function
• Input power OVP function
• Programmable charge current, 0.1A--2A
• Eliminates the need for an external Schottky diode anti-intrusion
• Wide operating voltage up to 9V
• Two LED charge status indicator
• Chip temperature protection, overcurrent protection, undervoltage protection
• Battery temperature protection, reverse battery shutdown, short-circuit protection
• Switching frequency 800KHz, available inductor 2.2uH - 10uH
• Automatic recharge function
